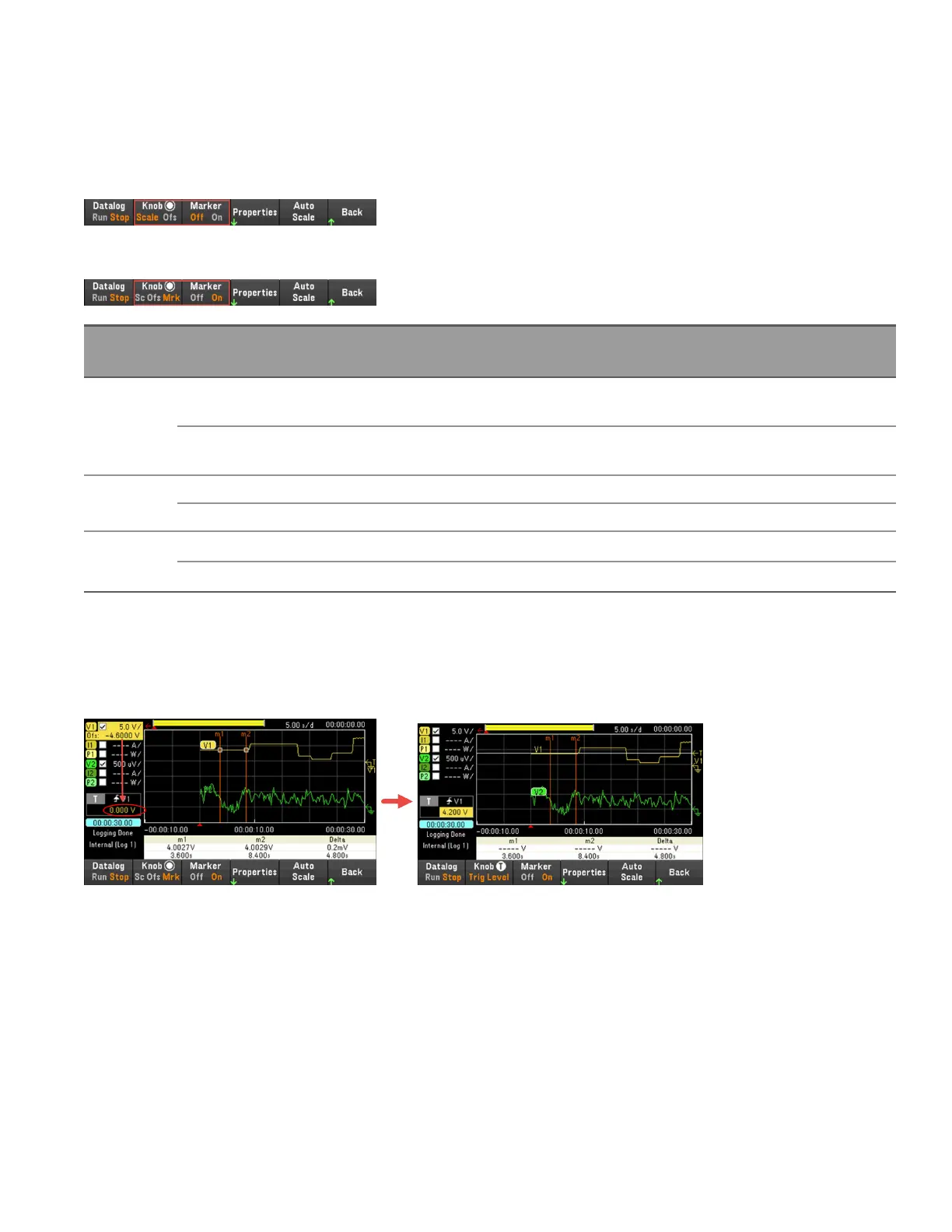

Using the knob in data logger view
The Knob softkey in Data Logger view determines the function for both Vertical and Horizontal knob.
Marker Off
Marker On
Knob control
settings
Knob Description
Scale or Sc Vertical knob Makes the waveform bigger or smaller vertically in relation to its ground reference. Specified in
volts/division, ampere/division and watts/division on the y axis.
Horizontal knob Stretches or shrinks the waveform horizontally around the timebase reference. Specified in time/division
on the x axis. Applies to ALL traces.
Offset (Ofs) Vertical knob Moves the ground reference of the trace up or down in relation to the horizontal center line of the grid.
Horizontal knob Moves the waveform to the right or left of the timebase reference.
Marker (Mrk) Vertical knob Moves the m1 marker right or left.
Horizontal knob Moves the m2 marker right or left.
Using the knob for adjusting trigger level
Use the navigation keys to select the trigger level located on the left pane of data logger view, as shown below.
Adjusting the Vertical or Horizontal knob will adjust the trigger level for Voltage level, or Current level accordingly.
Keysight EL30000 Series User's Guide 107
