Item Description
11 USB port
Allows an external USB drive to be connected to the instrument.

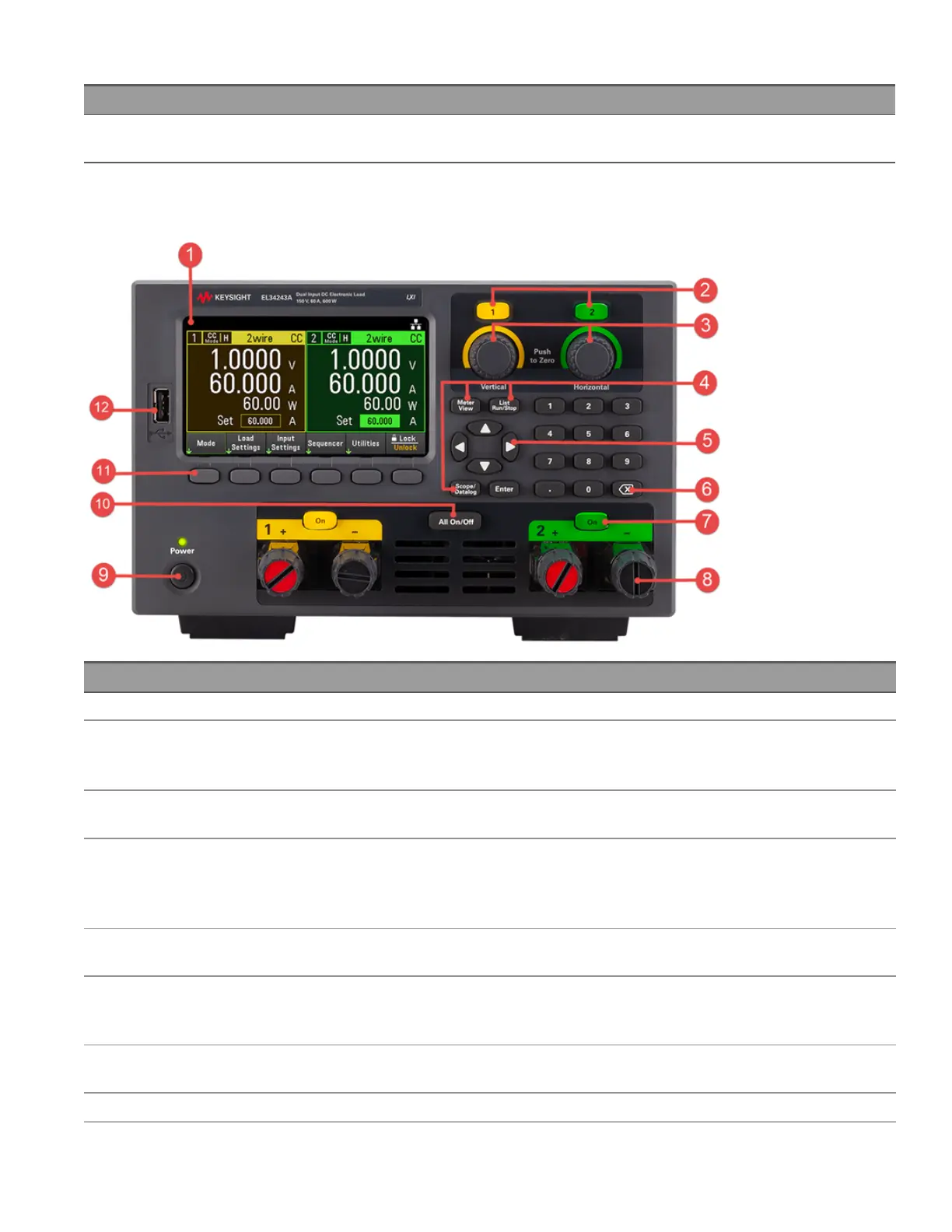

Front panel at a glance (EL34243A)
Item Description
1 Information-packed, high contrast 4.3-inch LCD color display; easily viewable even from sharp angles
2 Input selection keys
Selects an input to control. The lit key indicates the selected input.
Tip: When this key is selected, pressing this key again will toggle between multiple and single input view.
3 Vertical and Horizontal knobs
Set the input value for input 1 and input 2. These knobs are active in Meter View, Scope View, Data Logger View, and Settings page.
4 Meter View, List Run/Stop, and Scope/Datalog keys
– [Meter View] turns on the meter view for the selected input.
– [List Run/Stop] runs or stop input sequencer list on all channels simultaneously.
– [Scope/Datalog] toggles between Scope view and Data Logger view.
5 Navigation keys.
– Navigate through the control dialog windows; press [Enter] key to select a control.
6 Numeric keypad
– Enters numeric values. Press [Enter] key to complete the entry.
– Deletes the values entered into the dialog using the back key.
7 Input On key
Turns individual inputs On or Off; inputs are on when the key is lit.
8 Input terminals
Keysight EL30000 Series User's Guide 19
