Configuring the Input Turn-On/Turn-Off Sequence
Turn-on and turn-off delays control the turn-on and turn-off timing of the inputs in relation to each other.
Step 1 – Set the input voltage, current, power or resistance of the input channels:
Refer to steps 1 and 2 under Controlling the Inputs and set the input values of all inputs that will be sequenced.
Step 2 – Configure the turn-on turn-off delays:

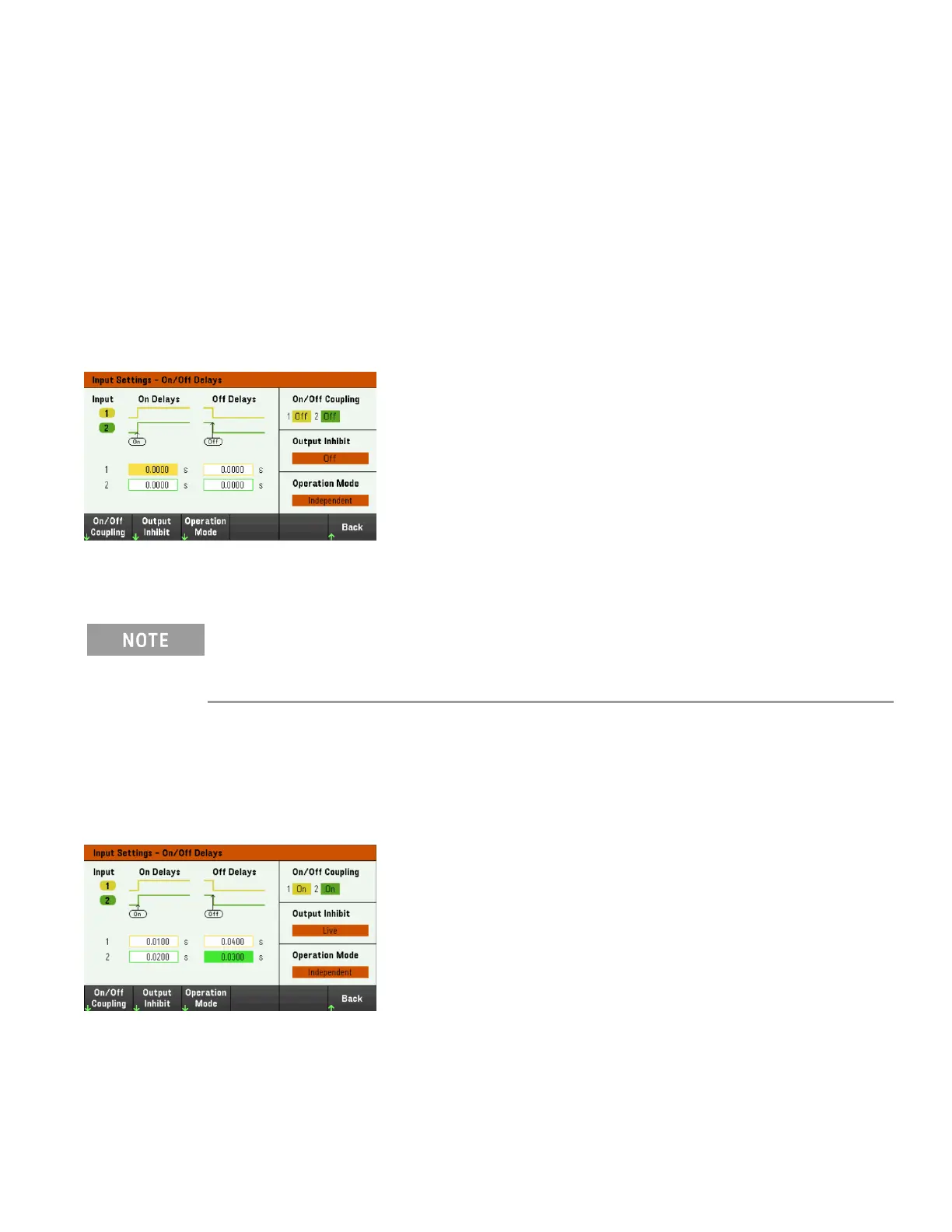

Press Input Settings to access the Input Settings – On/Off Delays. Enter the On Delays and Off Delays for all inputs
that will participate in the input on/off delay sequence. Values can range from 0 to 1023 seconds.
Step 3 – Coupling selected inputs:
This step is only required if you will be including some inputs to participate in an input on/off delay sequence
or if you are coupling multiple electronic loads. If only a single input is to be used in the sequence, you can
skip this step.
From the menu, press On/Off Coupling to access the On/Off Coupling mode settings.
–
Press Coup CH 1 to toggle between Off and On in order to turn off or on the coupling for Input 1.
–
Press Coup CH 2 to toggle between Off and On in order to turn off or on the coupling for Input 2. (applicable
for EL34243A only)
Step 4 – Use the All Inputs On and Off keys:
Once input delays have been set, press [All On/Off] to start the On delay and Off delay sequence.
Keysight EL30000 Series User's Guide 71
