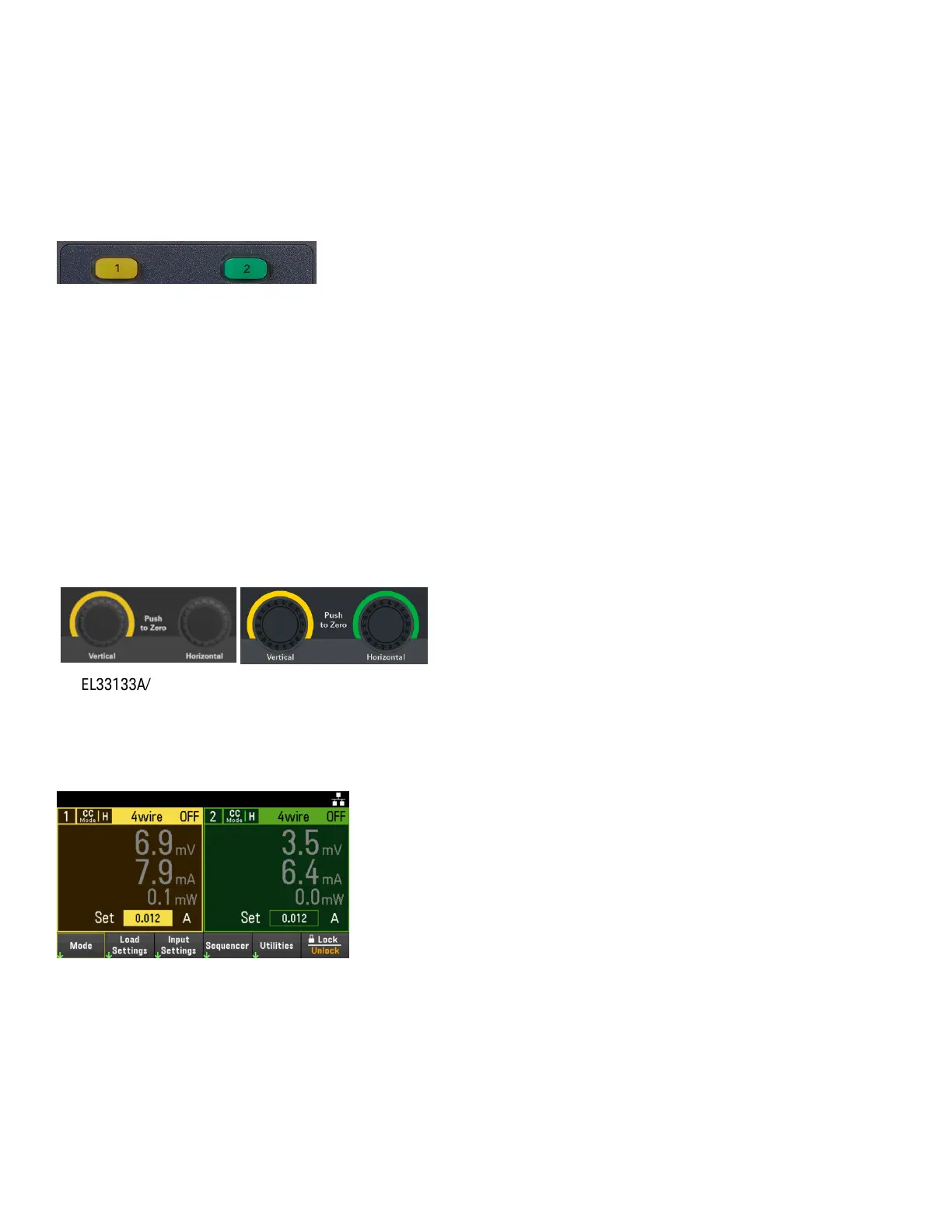

Controlling the Inputs
Step 1 - Select an input (EL34243A only)
Press one of the input selection keys to select an input to control. The lit key identifies the selected input. All
subsequent input-specific front panel commands are sent to the selected input.
Step 2 - Set the load operating mode
Press Mode to set the operating mode to constant current (CC), constant voltage (CV), constant resistance (CR), or
constant power (CP) mode.
Refer to the Load Operating Modes for more information.
Step 3 - Set the input voltage, current, resistance, or power
Turn the knob to set the input. The input values changes when they are turned.
This knob is active in Meter View, Scope View and Data Logger View.
EL33133A/EL34143A EL34243A
You can also enter the voltage, current, resistance, or power values directly in the numeric entry fields (the Set fields)
in the meter-view display. Use the navigation keys to select the field; use the numeric entry keys to enter the value.
The value becomes active when you press [Enter].
64
Keysight EL30000 Series User's Guide
