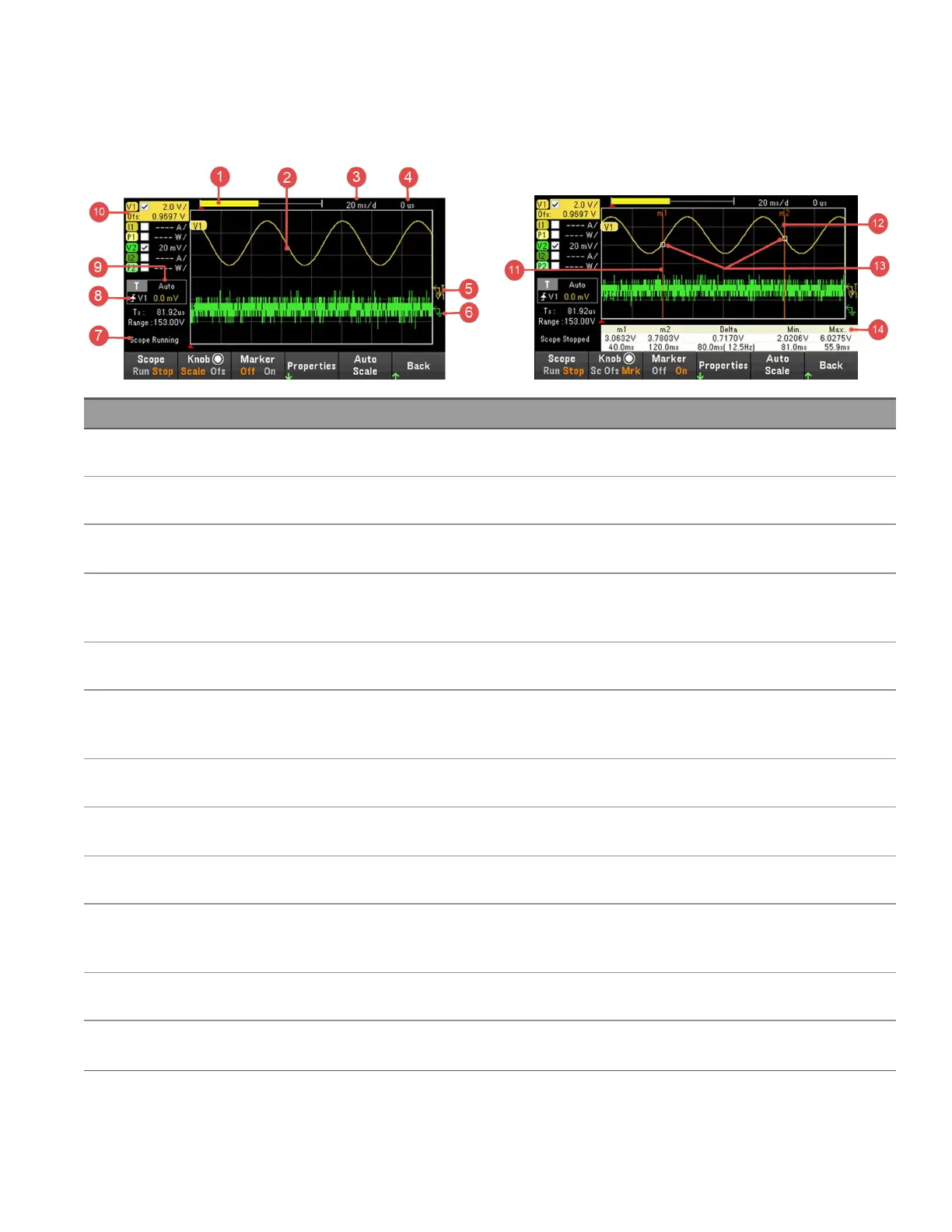

Scope view
Press [Scope/Datalog]. This key toggles between Data Logger view and Scope view.
Item Description
1 Data bar
The highlighted area shows how much of the entire measurement is actually shown on the display.
2 Scope traces
Voltage, current, or power traces. Voltage traces V1 and V2 is shown for EL34243A. Press Auto Scale to auto scale all traces.
3 Time/Div
Indicates the horizontal time-base setting. This can be adjusted using the Horizontal knob after pressing Knob Scale.
4 Offset time
Indicates the time from the trigger point indicator to the horizontal reference. Negative values indicate horizontal reference is to the
left of the trigger point. Positive values indicate the horizontal reference is to the right of the trigger point.
5 Trigger level
Identifies the trigger level through which the waveform must pass before the scope will trigger.
6 Ground
Identifies the ground reference level for the trace. The initial vertical offset of each trace is set to a different level to prevent the traces
from overlapping.
7 Scope status
Indicates whether the scope is idle, running, or waiting for a trigger.
8 Trigger source
Identifies the trigger source and trigger level. V1 indicates a voltage level on input 1 is the trigger source.
9 Trigger mode
Identifies the trigger mode setting. This can be selected by pressing Properties > Settings.
10 Trace controls
Identifies the voltage, current, or power trace that will be displayed. Dashes (----) indicate that the specified trace is turned off. Select
the trace and press [Enter] to turn it on or off.
11 m1 marker
Measurement Marker 1 enabled. This can be adjusted using the Vertical knob after pressing Knob Mrk.
12 m2 marker
Measurement Marker 2 enabled. This can be adjusted using the Horizontal knob after pressing Knob Mrk.
Keysight EL30000 Series User's Guide 25
