1 Setting Up the Oscilloscope
Ventilation
1 Position the oscilloscope where it will have sufficient clearance for airflow
around the top, back, and sides.

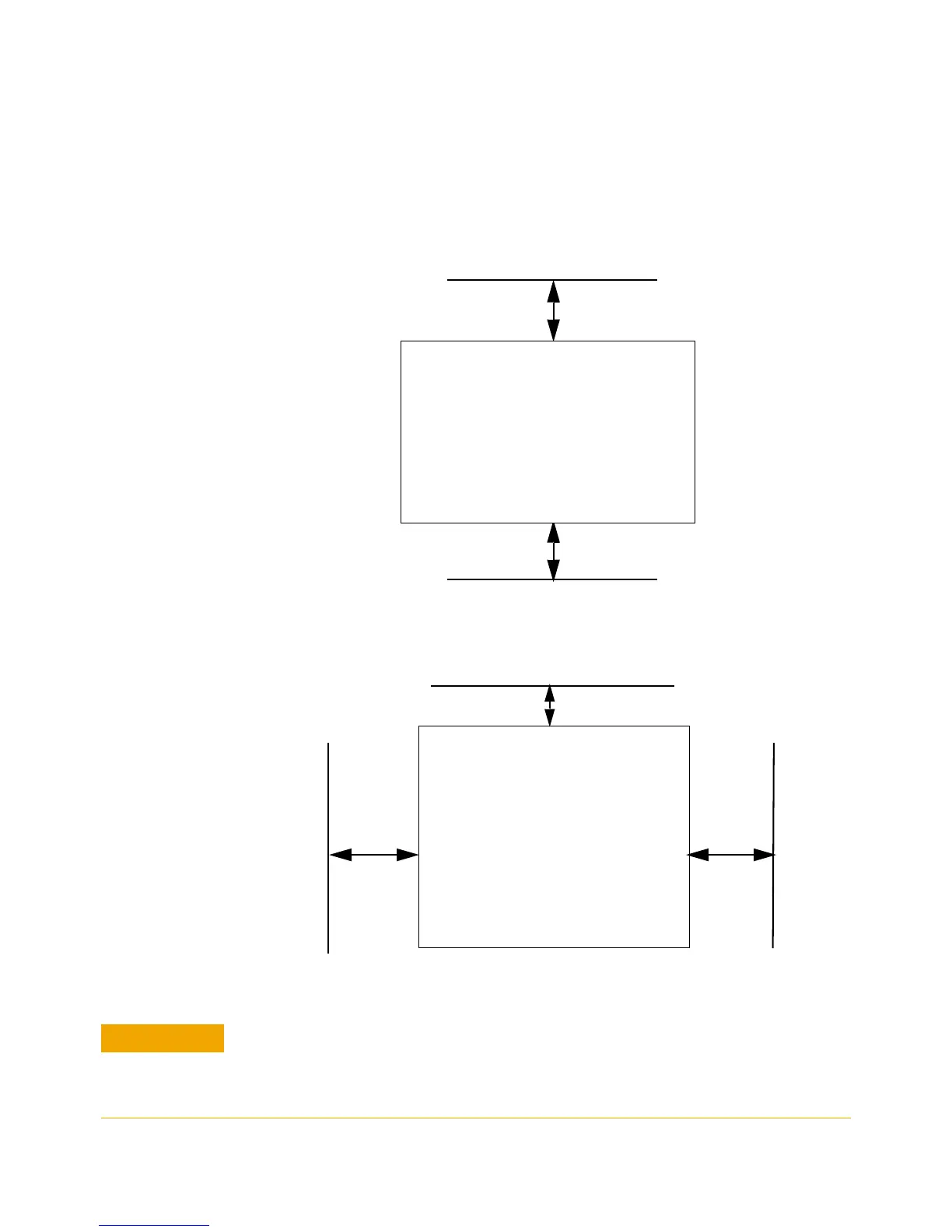

Figure 1 Positioning the 9000 Series oscilloscope with sufficient clearance
Minimum 0 mm
Minimum 0 mm
Front panel of oscilloscope
Minimum 25.4 mm
Minimum 25.4 mm
Minimum 75 mm
Top View
Rear Panel
Minimum bottom clearance: No intrusion into the
space under the oscilloscope as defined by the
feet. Feet must rest on hard surface.
CAUTION
VENTILATION REQUIREMENTS: When installing the instrument(s) into a cabinet,
consider the convection flow into and out of the cabinet. Also consider the individual
instruments, to avoid having the heated discharge of one instrument become the
cooling intake air for another instrument.
