18 Keysight Infiniium 9000 Series Oscilloscopes User’s Guide
1 Setting Up the Oscilloscope
Connecting Power
1 Position the oscilloscope so that it is not difficult to unplug the power cord.

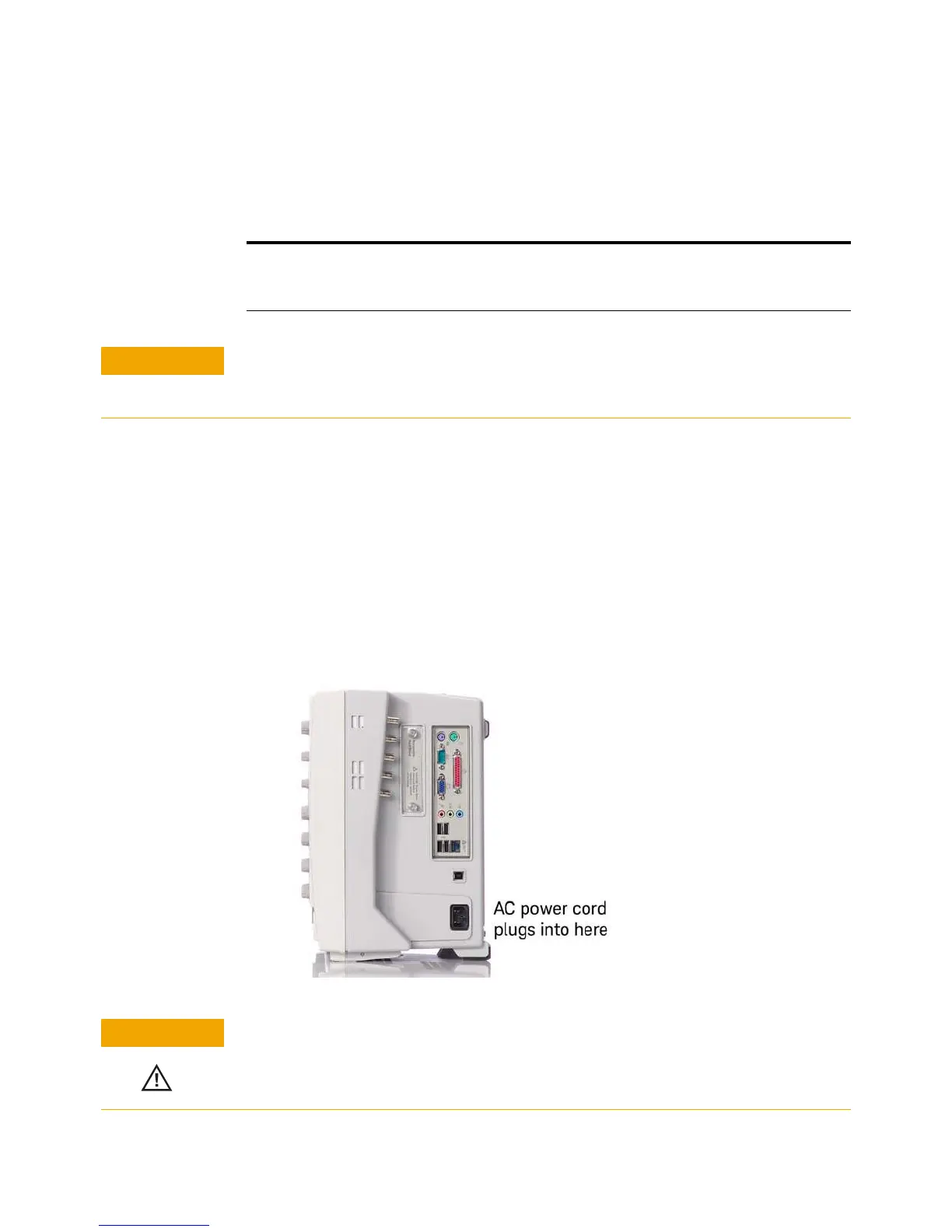

2 Connect the power cord to the side panel of the oscilloscope and then to a
suitable ac voltage source. The power cord serves as the main disconnecting
device. The maximum power dissipation is 375 W.
• The oscilloscope power supply automatically adjusts for line input voltages in
the range 100 to 240 VAC. Therefore, you do not need to adjust an input line
voltage setting. The line cord provided is matched by Keysight Technologies to
the country of origin of the order.
• You should regularly check the condition of the power cord.
Table 2 Power requirements
Power 100-120 V, 50/60/400 Hz
100-240 V, 50/60 Hz
375 W Max
This oscilloscope has autoranging line voltage input. Before switching on the
oscilloscope, be sure the supply voltage is within the specified range and voltage
fluctuations do not exceed 10% of the nominal supply voltage.
Use only power cords designed for your oscilloscope.
The power cord provided is matched to the country of origin of the order.
