User Interface Overview
With the user interface for the Infiniium oscilloscope, you can access all the
configuration and measurement features of the oscilloscope through an
easy-to-use system of windows, menus, toolbars, dialog boxes, icons, wizards,
and buttons.
The user interface is arranged so the most common functions affecting the
waveform display are located around the edge of the waveform display area.
Context-sensitive menus are available when you right-click something in the
waveform display area, such as the grid, a signal, a bookmark, or a measurement.
You can mouse over or touch other areas, such as the drag & drop measurements
area and horizontal and acquisition control regions, to find more information about
those areas or to enter data.
The following figures call out the areas and controls of the user interface.
The selected grid mode in the upper right corner determines whether you draw a
selection box or manipulate waveforms when you touch the screen.

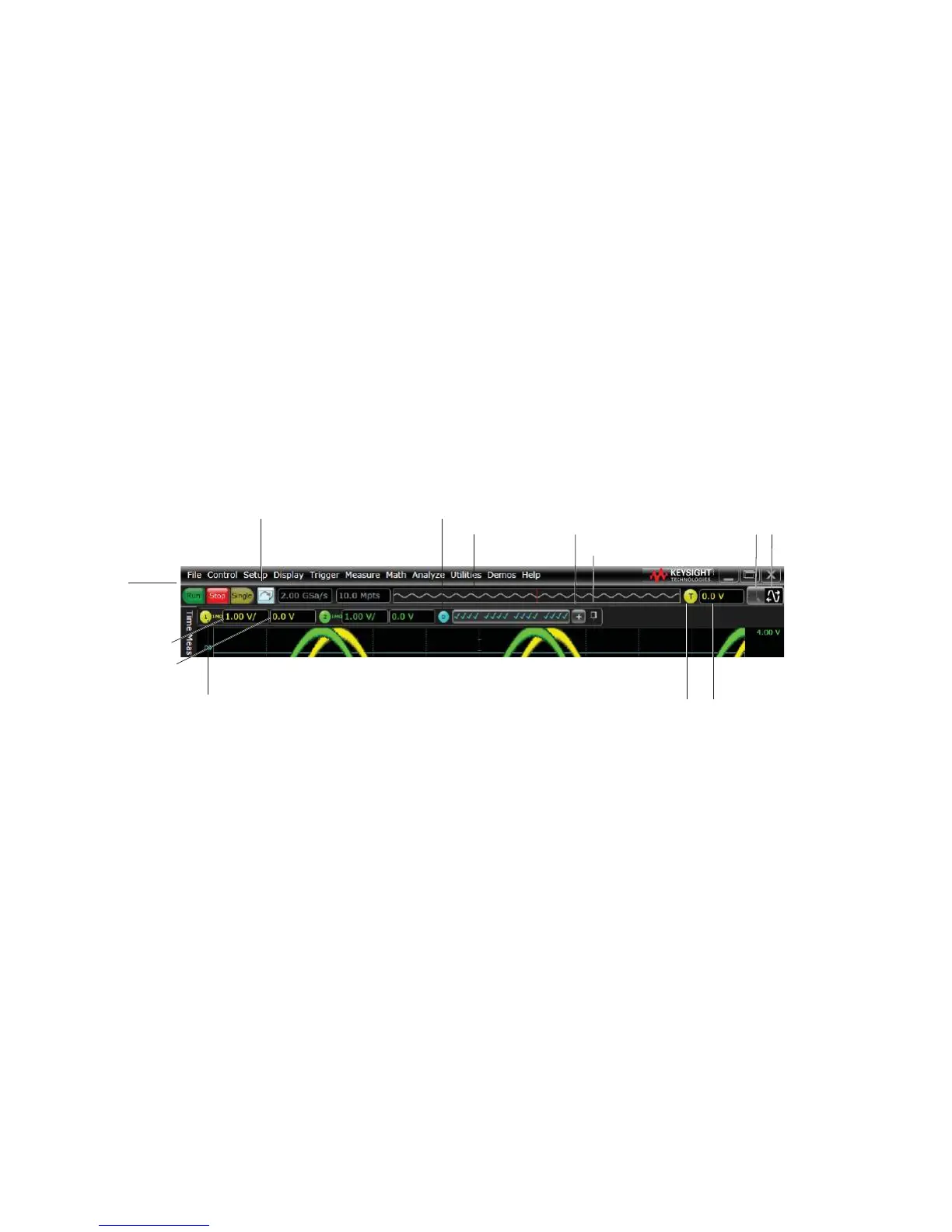

Figure 8 Infiniium oscilloscope top of display
Open the
Digital dialog box
Memory bar
Drag waveform
mode
Draw rectangle
mode
Access the Channel
dialog box
Set
trigger level
t vertical scale
t vertical offset
Access the
Trigger
dialog box
Clear display
Menu bar
Grid selection:
Turn waveforms on/off
Pin/unpin controls
To Next Page
