34 Keysight Infiniium 9000 Series Oscilloscopes User’s Guide
2 Using the Oscilloscope
Adjusting the Horizontal Time Scale and Trigger Position
Use the horizontal controls to configure the horizontal scale (time per division) and
horizontal position of the waveform. You can view a magnified section of the
waveform using the zoom window.
You can use the horizontal knobs, horizontal controls, or Horizontal dialog box to
adjust the horizontal scale and position.
Adjusting the horizontal scale
The horizontal scale knob is the larger of the two horizontal control knobs. Turn the
knob to stretch or shrink the waveform horizontally.
Stretching the waveform means fewer seconds are displayed per division.
Shrinking it means more seconds are displayed per division.
Push and turn the horizontal scale knob to change the scaling in finer (Vernier)
increments.
You can also use the controls in the horizontal toolbar to adjust the horizontal
scale. Mouse over or touch the horizontal scale field and use the resulting controls
to set a particular horizontal scale. You can click the Scale field to enter an exact
value, or click the “narrower” or “wider” buttons.

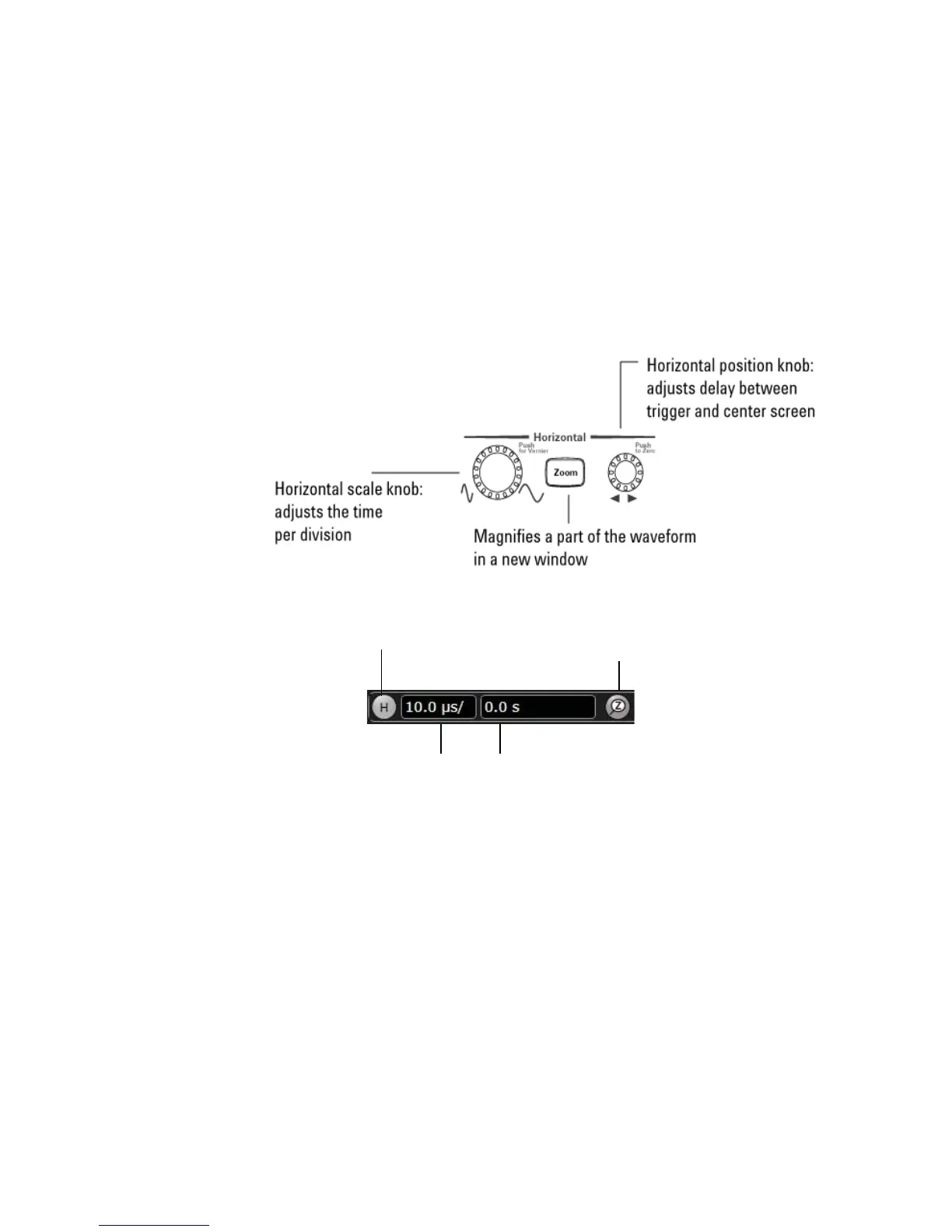

Figure 15 Horizontal scale and position knobs, [Zoom] key
Figure 16 User interface horizontal controls
Access the
Horizontal dialog box
Set horizontal scale Set horizontal position
(delay)
Turn Zoom mode on/of
f
