36 Keysight Infiniium 9000 Series Oscilloscopes User’s Guide
2 Using the Oscilloscope
Adjusting the Vertical Settings
Use the vertical controls to set the vertical scaling (volts per division) and vertical
offset for each analog channel. You can also turn the display on or off for a
particular channel.
Turning an analog channel on or off
• To turn an analog channel on or off, press the channel number key on the front
panel or click the Add Waveforms button . When you turn off a channel, the
current vertical scale and offset fields for that channel disappear.

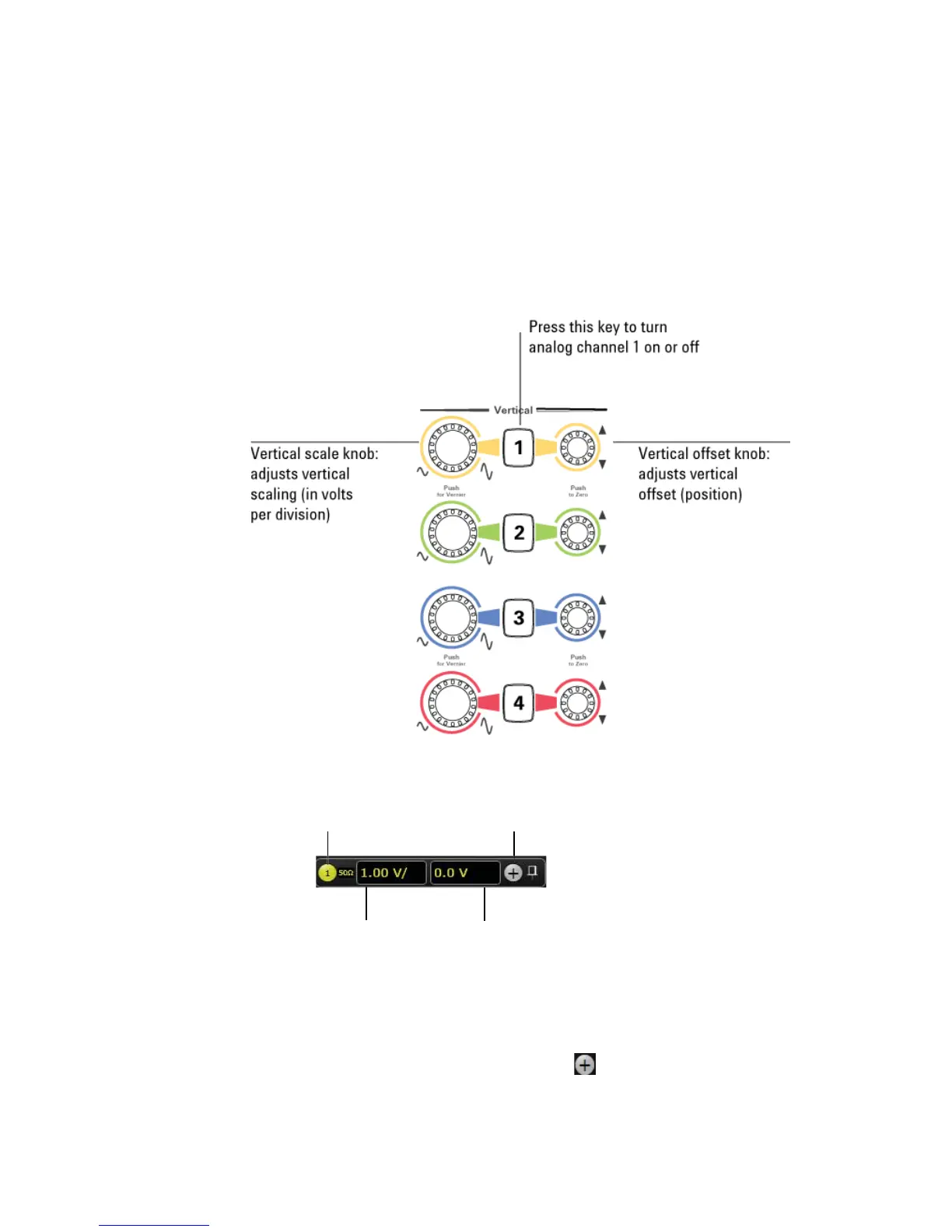

Figure 17 Channel keys and vertical scale and offset knobs
Figure 18 User interface vertical controls
Open the Channel
dialog box
Set vertical
scale
Set vertical
offset
Turn waveforms
on/off
