46 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Boot Up and Initialization
Potential Problems During Boot Process

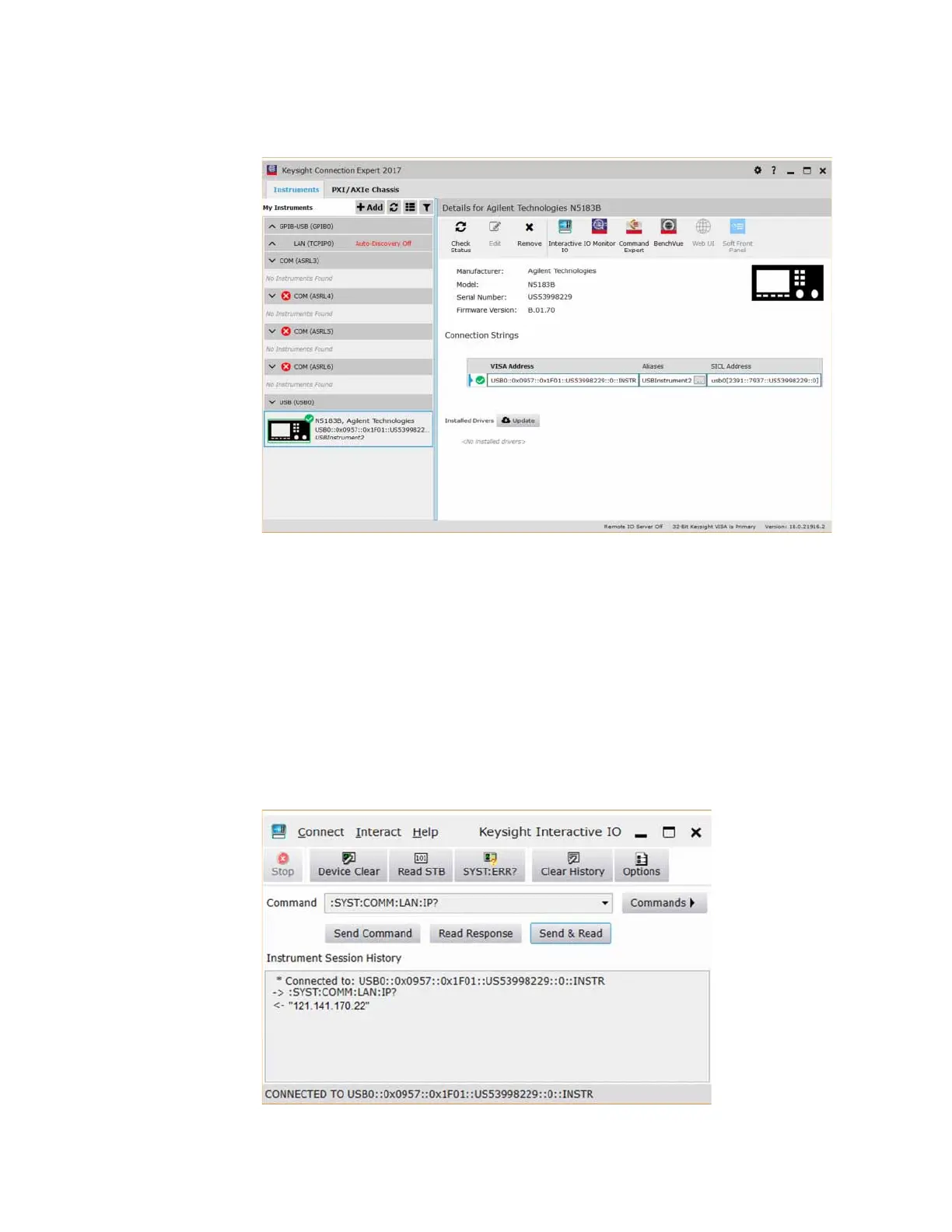

Figure 2-5 Connection Expert Instrument Identification
Has the instrument been correctly recognized by the Connection Expert?
a. If yes, the instrument processor is running and communicating.
Proceed to step 7.
b. If not, replace the A5 CPU assembly.
7. Using the LAN connector on the rear panel connect the instrument to your
local area network and give it one minute to obtain an IP address.
8. In the Connection Expert select “Interactive IO”. A window like that shown
in Figure 2-6 will appear.
Figure 2-6 Interactive IO Communication
To Next Page
