116 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Optimizing Performance for All Models

Using External Leveling (N5173B/83B Only)

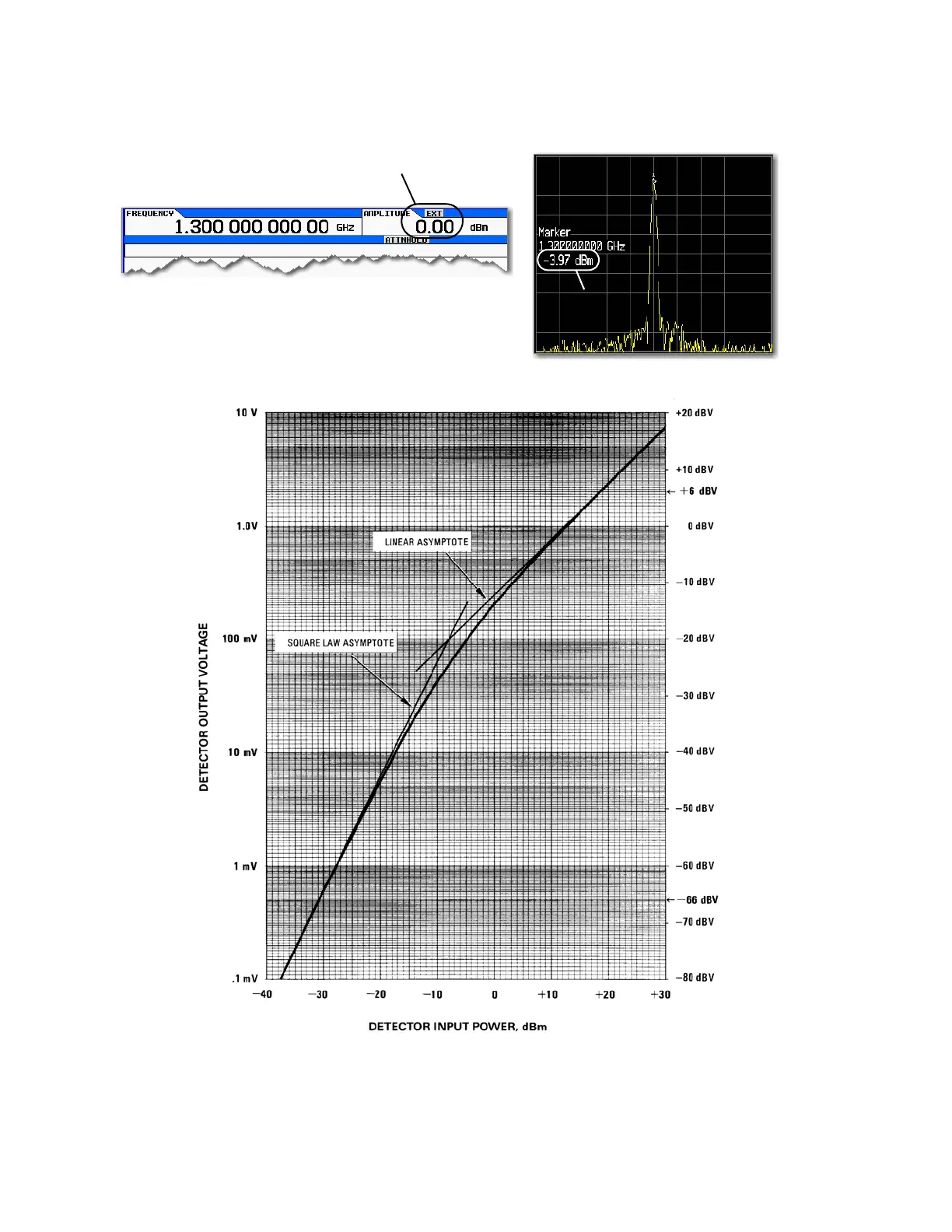

Figure 5-20 Power Value Differences with External Leveling

Figure 5-21 Typical Diode Detector Response at 25° C

Measured output power

of a coupler

Signal generator set power level
