397
Keysight X-Series Signal Generators
N5171B/72B/73B EXG and N5181B/82B/83B MXG
User’s Guide
15 Using Baseband Operating Mode for N5172B/82B
(Primary, BERT, or N5102A)
This chapter describes the Baseband Operating Mode feature used by
Keysight N5172B EXG and N5182B MXG X-Series signal generators.
The Baseband Operating Mode can be one of three different ARB FPGA
images; each ARB FPGA image changes the supported features available while
in the selected mode.
The selected Baseband Operating Mode is a persistent instrument setting and
its value is maintained through power cycles, Preset, or *RST.
The default Baseband Operating Mode is set to Primary and can only be
changed when one or more of the following options are installed.
(BERT and/or N5102A will appear grayed-out if they are not available.)
— Internal Bit Error Rate Analyzer (BERT), Option UN7
— Digital Output Connectivity with the N5102A, Option 003 or 004 or both.

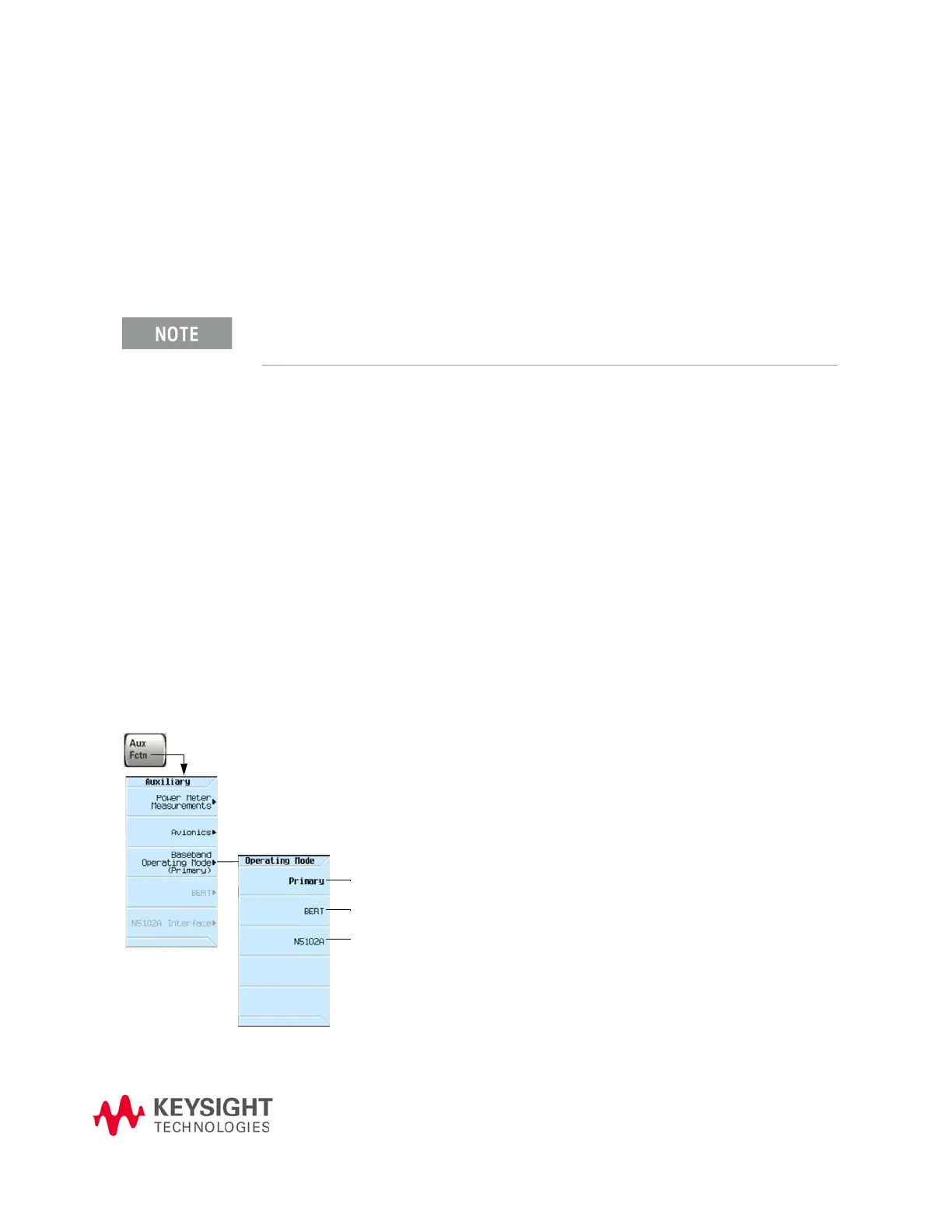

Figure 15-1 Baseband Operating Mode Softkeys
Baseband Operating Mode is available on all Keysight N5172B EXG and N5182B MXG
X-Series signal generators that have installed firmware version B.01.70 or later.
To set the Baseband Operating Mode to N5102A on page 399
To set the Baseband Operating Mode to BERT on page 398
To set the Baseband Operating Mode to Primary on page 400
