142 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Pulse Modulation for All Models with Options UNU, UNW, 320
Pulse Train (Option 320 – Requires: Option UNW)

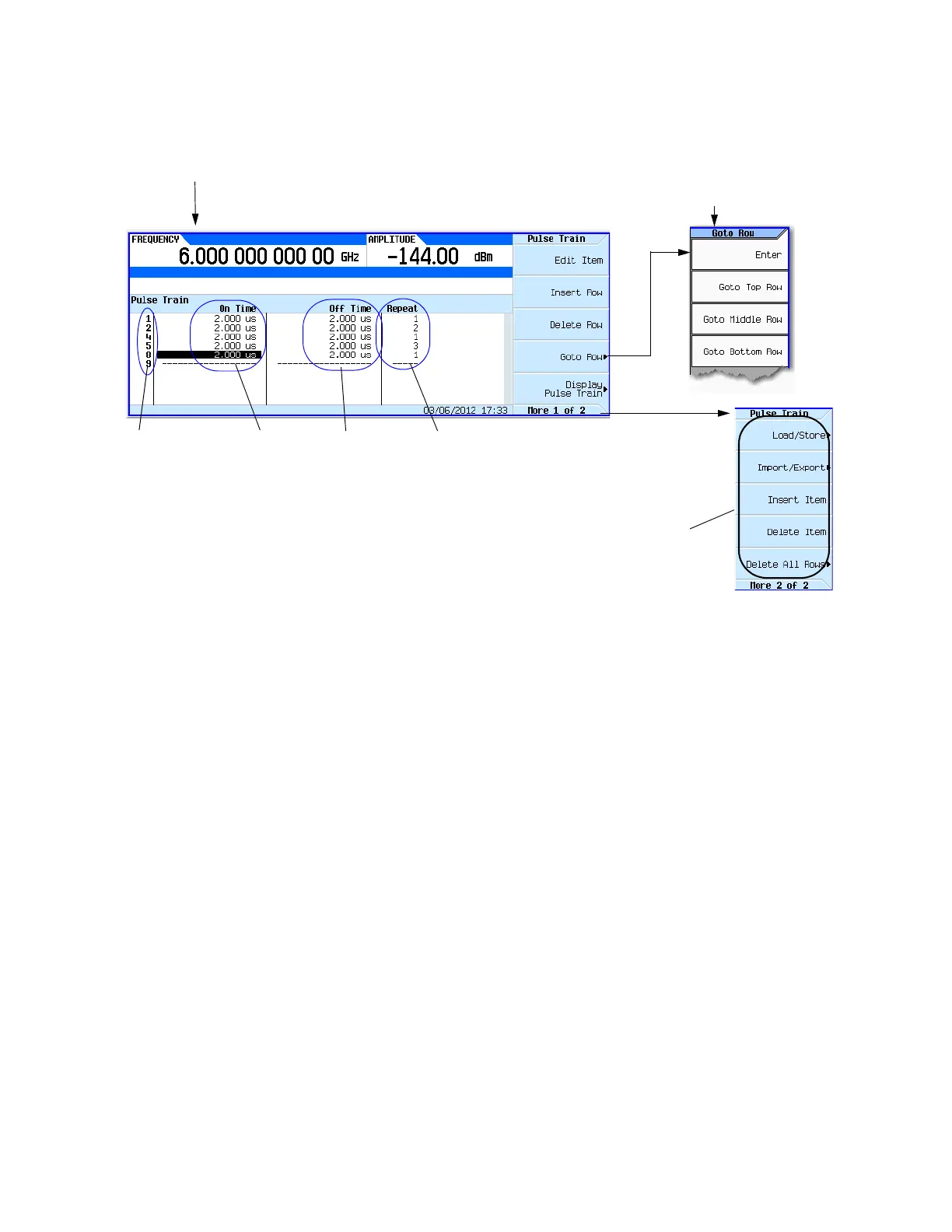

Figure 6-5 Edit Pulse Train Menu Softkeys
Pulse > Pulse Source > More > Pulse Train > Edit Pulse Train
page143
This column indicates the
row of a each pulse train
cycle.
Note: When the cycles
(elements) are repeated,
the row numbers are
skipped in the displayed
count for the number of
pulse cycles repeated.
Example: For the pulse
train displayed above, in
row 2, the 3 us On Time
and 2 us Off Time pulse
cycle is repeated twice.
But, only row 2 is
displayed for that pulse
cycle (i.e. row 3 is not
displayed).
This column
displays the on
times for each
pulse cycle
(element) in the
pulse train.
This column
displays the off
times for each
pulse cycle
(element) in the
pulse train.
This column
displays the repeat
times for each
pulse cycle
(element) in the
pulse train.
These softkeys provide
ease of use in changing
the pulse cycle settings
in the pulse train.
SCPI Commands:
[:SOURce]:PULM:INTernal:TRAin:LIST:PRESet
[:SOURce]:PULM:INTernal:TRAin:OFFTime <20ns - 42sec>
[:SOURce]:PULM:INTernal:TRAin:OFFTime?
[:SOURce]:PULM:INTernal:TRAin:OFFTime:POINts?
[:SOURce]:PULM:INTernal:TRAin:ONTime <20ns - 42sec>
[:SOURce]:PULM:INTernal:TRAin:ONTime?
[:SOURce]:PULM:INTernal:TRAin:ONTime:POINts?
[:SOURce]:PULM:INTernal:TRAin:REPetition <1-2047>
[:SOURce]:PULM:INTernal:TRAin:REPetition?
[:SOURce]:PULM:INTernal:TRAin:REPetition:POINts?
Refer to the SCPI Command Reference.
SCPI Commands (continued):
:MEMory:CATalog:PTRain?
:MEMory:DELete:PTRain
:MEMory:EXPort[:ASCii]:PTRain <"filename">
:MEMory:EXPort[:ASCii]:SEParator:COLumn
TAB|SEMicolon|{COMMa}|SPACe
:MEMory:EXPort[:ASCii]:SEParator:COLumn?
:MEMory:EXPort[:ASCii]:SEParator:DECimal {DOT}|COMMa
:MEMory:EXPort[:ASCii]:SEParator:DECimal?
:MEMory:IMPort[:ASCii]:PTRain <"filename">
:MEMory:IMPort[:ASCii]:SEParator:DECimal {DOT}|COMMa
:MEMory:IMPort[:ASCii]:SEParator:DECimal?
:MMEMory:LOAD:PTRain <"filename">
:MMEMory:STORe:PTRain <"filename">
For details on each key, use key help as described on page56.
