190 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Triggering a Waveform

8. (Optional) Monitor the waveform:

Configure the oscilloscope to display both the output of the signal generator, and the external

triggering signal. You will see the waveform modulating the output during the gate active

periods (low in this example).

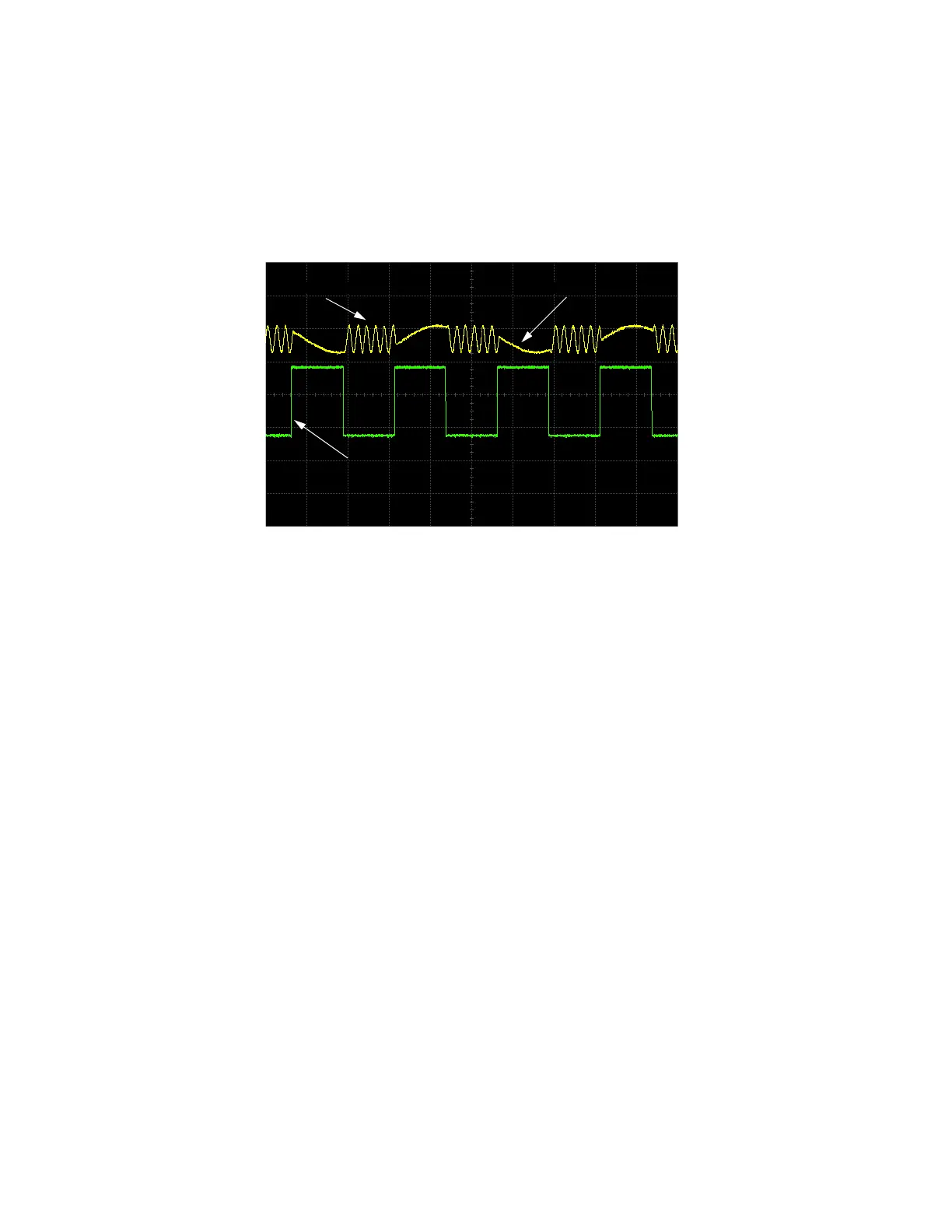

The following figure shows an example display.

RF Output

Externally Applied Gating Signal

Gate Active = Low

Modulating Waveform

Default Chapter5
