Keysight EXG and MXG X-Series Signal Generators User’s Guide 235
Basic Digital Operation for N5172B/82B with Options 653/655/656/657
Multiple Baseband Generator Synchronization

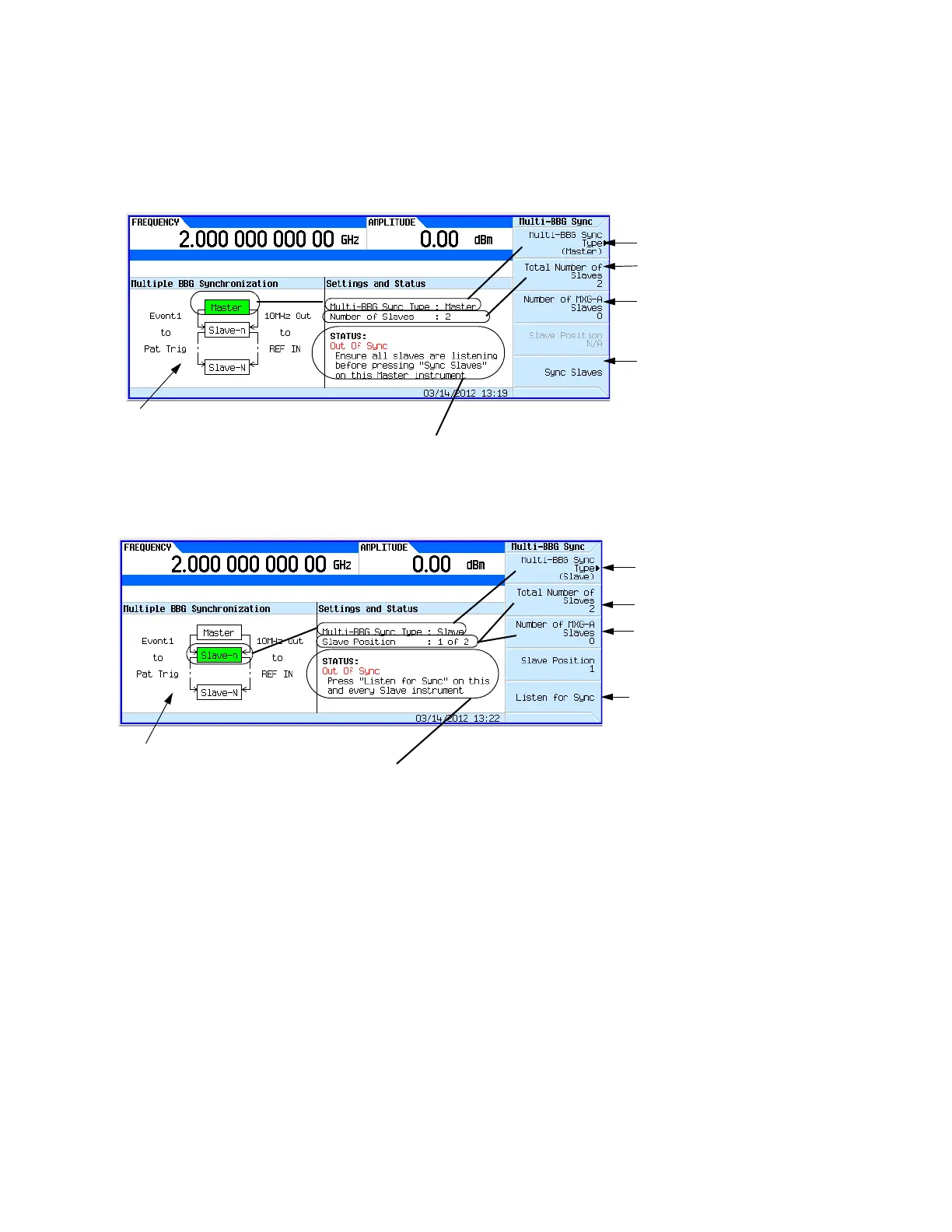

Figure 8-28 Multiple BBG Synchronization Front Panel Displays
For details on each key, use key help
as described on page56.
Master Display and Available Softkeys
Slave Display and Available Softkeys
Select Off, Master, or Slave
Synchronizes the baseband
generators for all instruments in the
system.
Note: Press only after pressing
Listen for Sync on all slave
instruments and the slaves show
“Waiting For Sync” as the status.
Master shows one of the following messages:
• Out of Sync
• In Sync
Shows after pressing Sync Slaves
Master/slave indicator and setup
diagram.
After pressing, the slave waits for the
synchronization signal initiated by
the master.
Note: Press before pressing Sync
Slaves on the master instrument.
Slave shows one of the following messages:
• Out of Sync
• Waiting for Sync
Shows after pressing Listen for Sync
• In Sync
Shows after pressing Sync Slaves on the master
Master/slave indicator and setup diagram.
The bottom slave indicator is green on the
last slave in the system.
Select Off, Master, or Slave
This is a persistent setting that
survives both preset and cycling
the power.
These are persistent settings that
survive both preset and cycling the
power.
Grayed–out on master, active for
slaves.
Mode > Dual ARB > Arb Setup > More >
Multi-BBG Sync Setup
