Keysight Agile Signal Generator Service Guide 109
Assembly Replacement

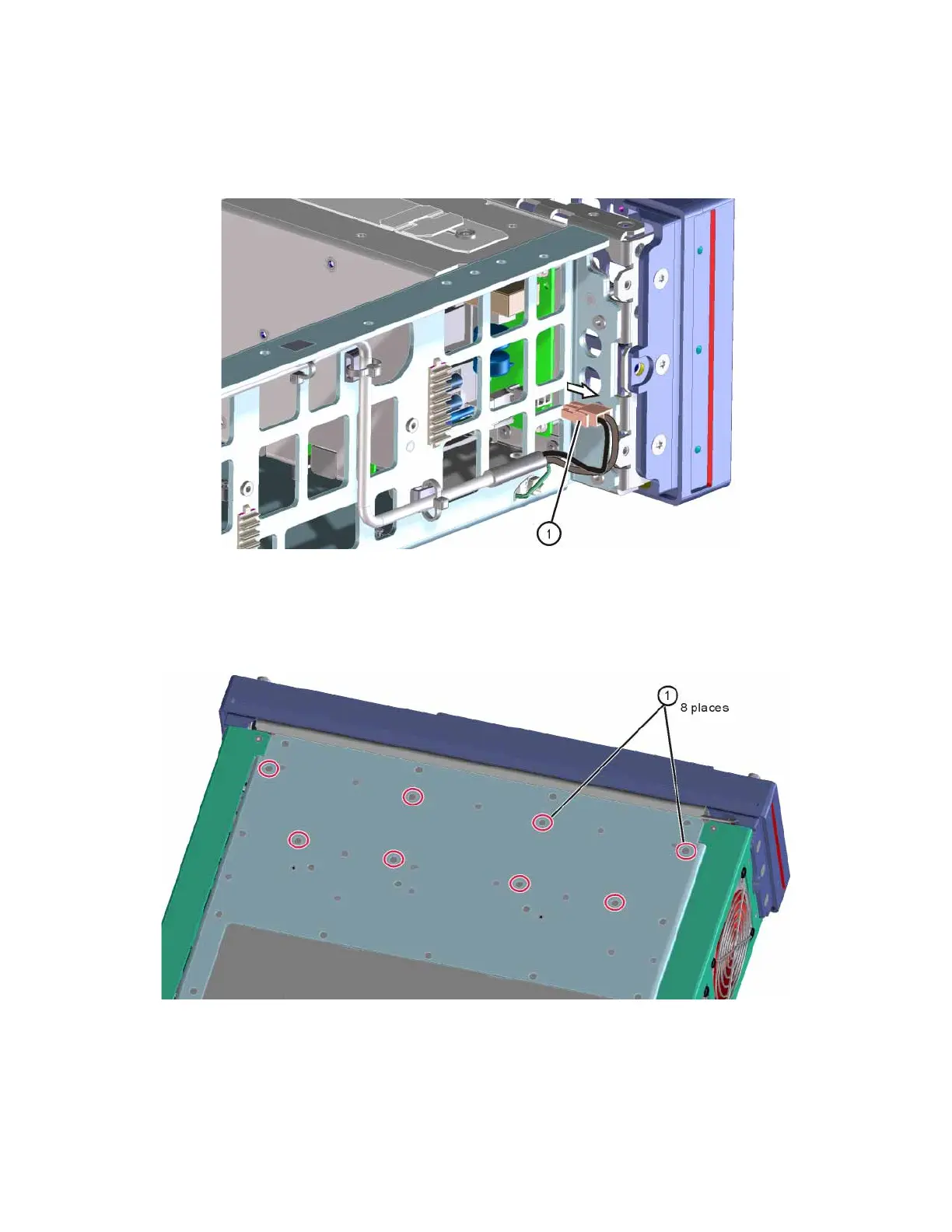

5. Refer to Figure 3-13. Unplug the line module (1) from the power supply.
Figure 3-13 Unplug Line Module
6. Refer to Figure 3-14. Using the T-10 driver, remove the eight screws (1)
(0515-1946) that secure the power supply to the chassis.
Figure 3-14 A2 Power Supply Screws Removal
