Keysight Agile Signal Generator Service Guide 113
Assembly Replacement
5. Refer to Figure 3-17. Using the 5/16 inch slotted socket, remove
semi-rigid cables W10 and W11. Disconnect one end of the output cable
as shown.

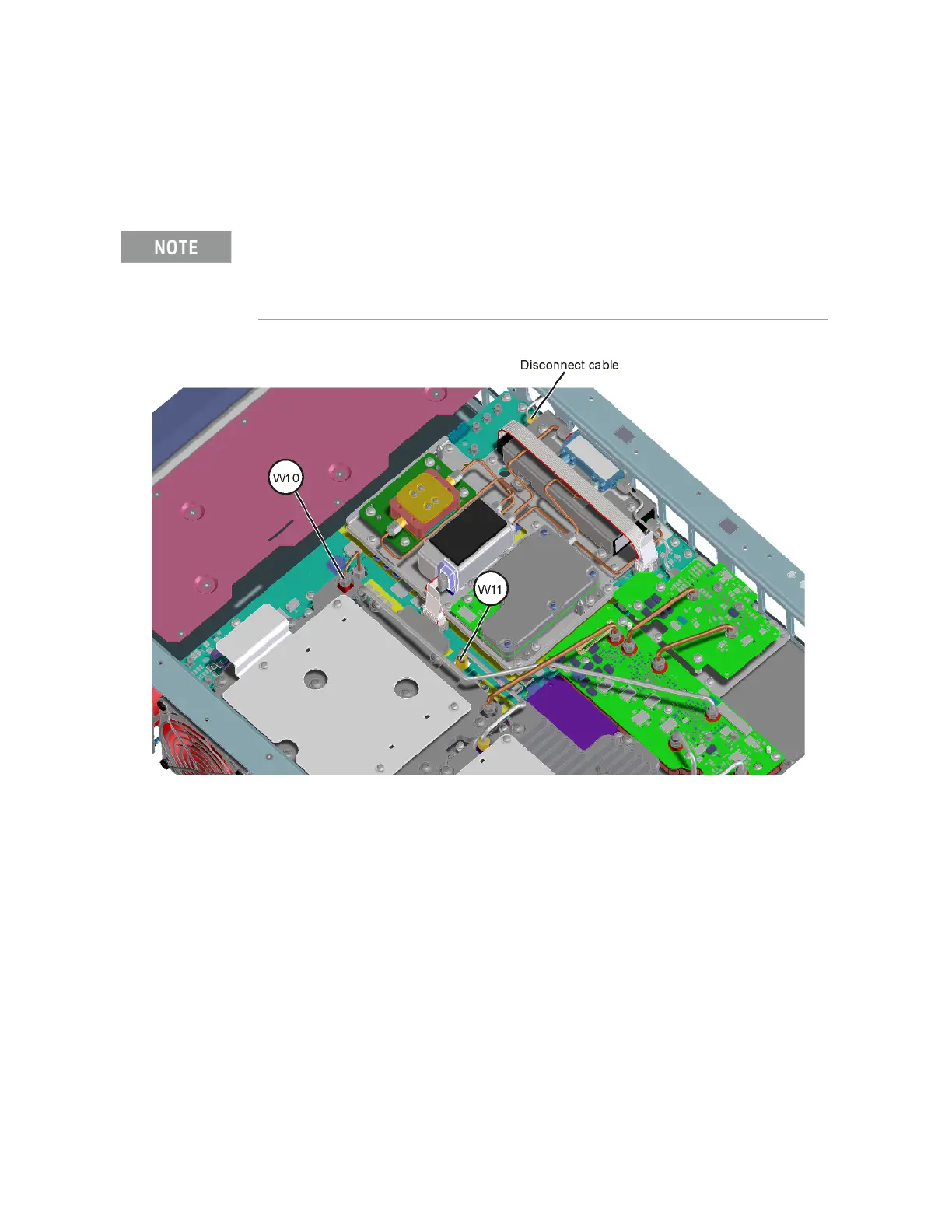

Figure 3-17 Remove Semi -Rigid Cables
This procedure is to remove the Microdeck from a UNM instrument. To remove the Microdeck
from a 1EM instrument (connectors at the rear) it will be necessary to remove cables W18, W20,
or W22 (dependent on the option). Refer to Figure 2-18 on page84 and Figure 2-19 on
page85. It will also be necessary to remove the rear panel from the instrument before
removing the Microdeck. Refer to “Rear Panel” on page 151.
