Keysight Agile Signal Generator Service Guide 149
Assembly Replacement
1. Remove cables W7 and W8.

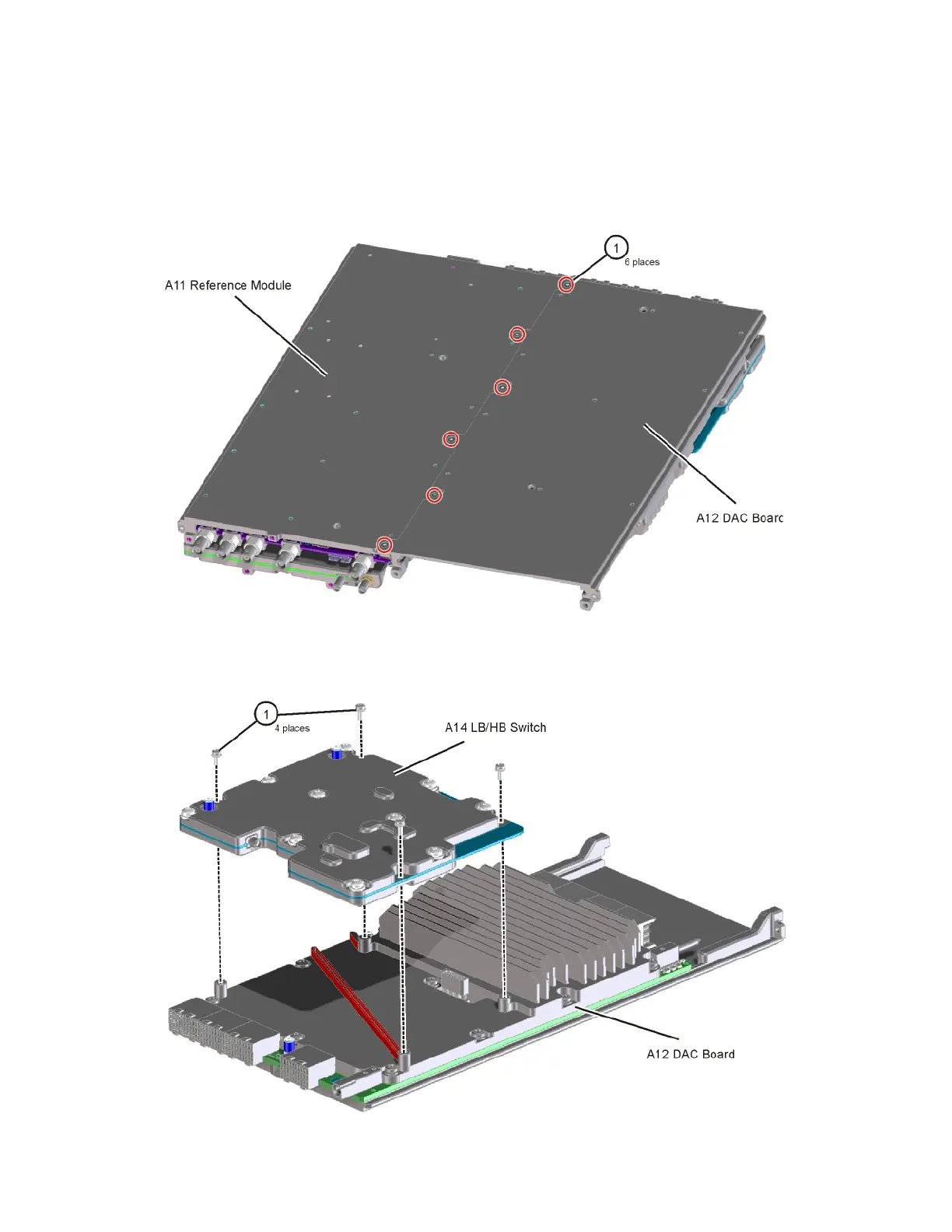

2. Refer to Figure 3-44. To separate the Reference assembly from the DAC
assembly, remove the 6 screws (1) (0515-1946) on the bottom.
Figure 3-44 Reference/DAC Separation
3. Refer to Figure 3-45. To remove the LB/HB Switch assembly, remove the 4
screws (1) (0515-0372) that attach the switch to the DAC board.
Figure 3-45 LB/HB Switch Removal
