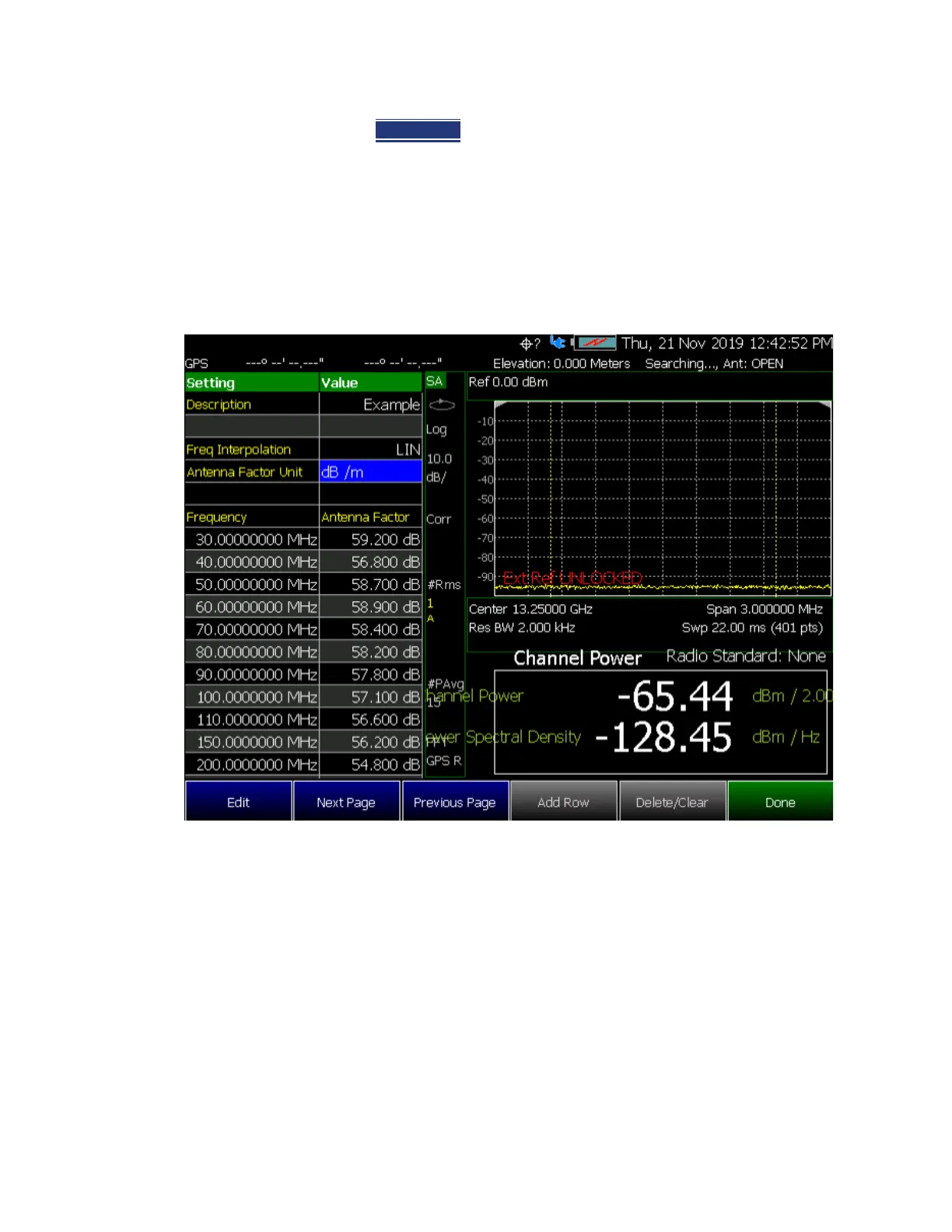

SA (Spectrum Analyzer) Mode (Option 233–Mixed Analyzers)
IQ Analysis (Requires Option 353, SA Mode Only)
— To configure automatically: Press Ref Level – adjust as
needed.
or
To adjust manually:
— Press Preamp ON
(default = OFF)
— Press RF Atten
> Manual > 15 dB (default)
4. Setup IQ Streaming protocol, destination host, and port:
To set the destination host, IQ streaming protocol, and samples per
packet, refer to the [:SENS]:IQST subsystem commands in the
FieldFox Handheld Analyzer SCPI Programming Guide on
www.keysight.com.
— Destination Host
— Destination Port – (default is 4991)
— Protocol – Choose Vita or Decodio
— Samples per packet
5. Start Streaming: Refer to the FieldFox Handheld Analyzer SCPI
Programming Guide on www.keysight.com.
6. When done press Exc
to stop streaming or refer to the FieldFox Handheld
Analyzer SCPI Programming Guide on www.keysight.com.
Or via the Fiel
dFox front panel, choose:
— Press Meas Setup 4
> IQ Analysis > None
Or simply choose:
— Press Measure 1
> All Meas Off
Keysight N9938-90003 User's Guide
