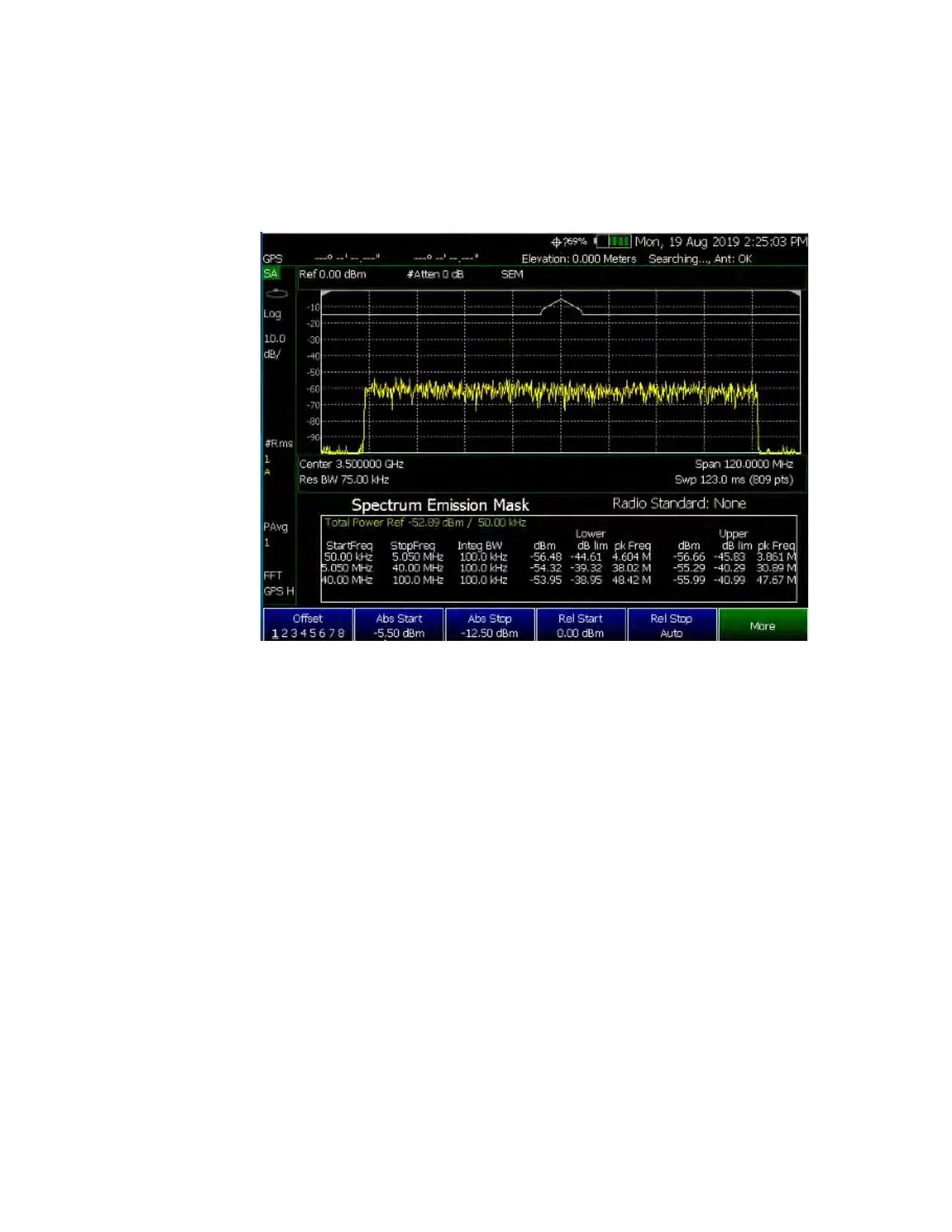

SA (Spectrum Analyzer) Mode (Option 233–Mixed Analyzers)
Effective Isotropic Radiated Power (EIRP) – (Requires CPU2, SA Mode Only)
— Restart – Press this softkey to restart an antenna measurement.
— Save Horizontal
– Saves the current horizontal EIRP value (dBm).
— Save Vertical
– Saves the current vertical EIRP value (dBm).
— Clear H & V
–Clears the saved horizontal and vertical EIRP values
(dBm).
2. Configure Center frequency, Span, Preamp, and RF Attenuation
— Press Freq/Dist
> Center > 2 GHz
— Press Freq Span
> 3 MHz (default)
— Press Scale Amptd
> Preamp > ON (default = OFF)
— Press RF Atten Auto
(default = Auto)
3. Configure Center frequency, Span, Preamp, and RF Attenuation
— Press Freq/Dist
> Center > 2 GHz
— Press Freq Span
> 3 MHz (default)
— Press Scale Amptd
> Preamp > ON (default = OFF)
— Press RF Atten Auto
(default = Auto)
4. Summary of EIRP setup, per step
1.
— Press Rx Ant Gain
For this example: 30 dB > Enter.).
— Press Dist to Ant
For this example: 100m (default)
— Press Rx Cable Loss
For this example: 2.5 dB
— Press Margin Comp
TBD???
5. Start EIRP: Press Restart
6. When done press:
Save Horizontal
and
Save Vertical
7. Optional: To clear the saved horizontal and vertical EIRP values press:
Clear H & V
