Keysight Technologies N9918A N9925A User Manual

Keysight N9927-90001 User’s Guide 573
Noise Figure Mode (Option 356 – CPU2 Only)
How to Define a Noise Figure Measurement
Setting DUT Loss Compensation

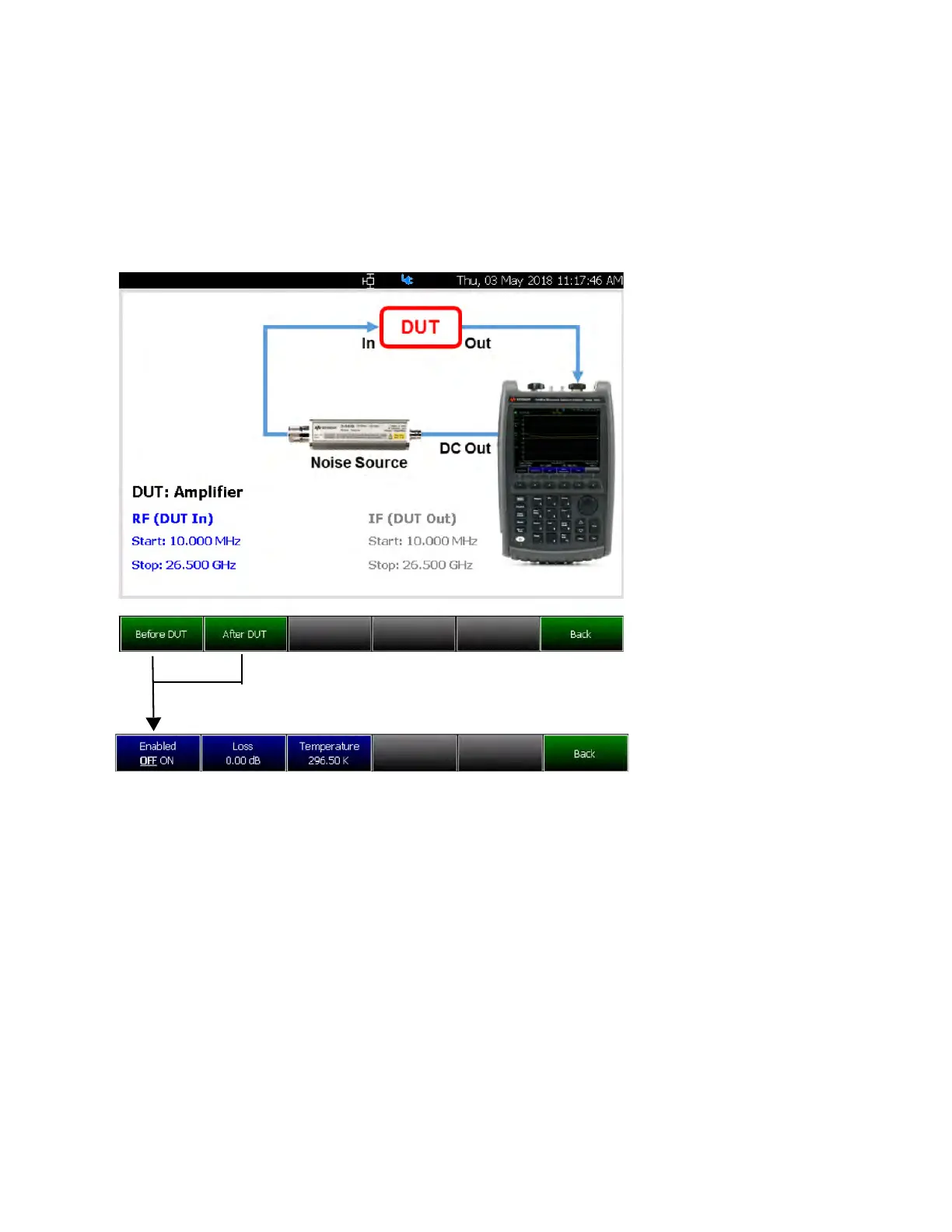

Figure 29-9 DUT Loss Compensation
Used for setting up loss
compensation for a DUT
– Type [Amplifier],
[Downconverter],
[Upconverter], and
[Multi-Stage Converter]
––Loss compensation can be
set before and after the DUT
––Enable or disable the Loss
(device loss) and the
temperature (device
temperature)
DUT – Measurement Setup – Type [Amplifier], [Downconverter], [Upconverter], and [Multi-Stage
Converter]
