Disassembly/Assembly Procedures and Parts List 3
Keysight 3458A Assembly-Level Repair Manual 101
Front/Rear terminals switch removal/installation procedures
The following procedures show how to remove and install the Front/Rear
Terminals Switch Assembly.
Refer to Figure 3-21 for the following procedures.
Removal procedure
1 Use the Covers removal procedure in this section of the manual to remove the
3458A top cover and top shield. It is not necessary to remove the bottom cover
and bottom shield.
2 Set the 3458A on your workbench with the top facing you.
3 Pull the Front/Rear Terminals switch pushrod off the Front/Rear Terminals
switch. You may need to pry the pushrod loose with a small screwdriver. Then
remove the pushrod by pulling it out of the front panel from the rear.

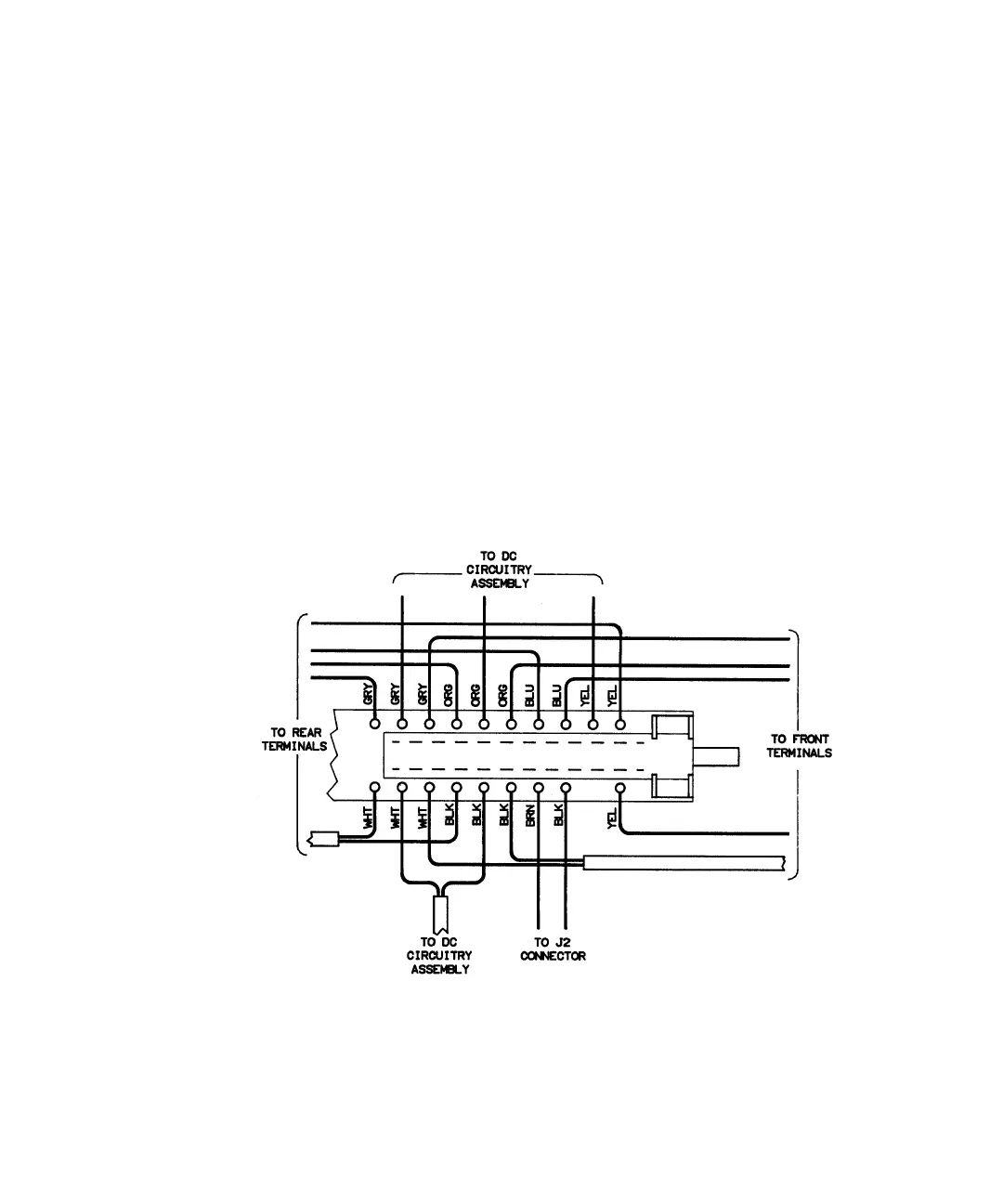

Figure 3-22 Wire/Cable locations on front/rear terminals switch
