15 Refer to Figure 3-5. Use the #TX10 Torx driver to remove the bottom shield
screw. Then remove the shield. Pull the shield toward the rear of the
instrument until the shield retainers line up with the slots in the shield. Lift the
shield off.
16 If you do not wish to remove the top shield, continue with step 19.

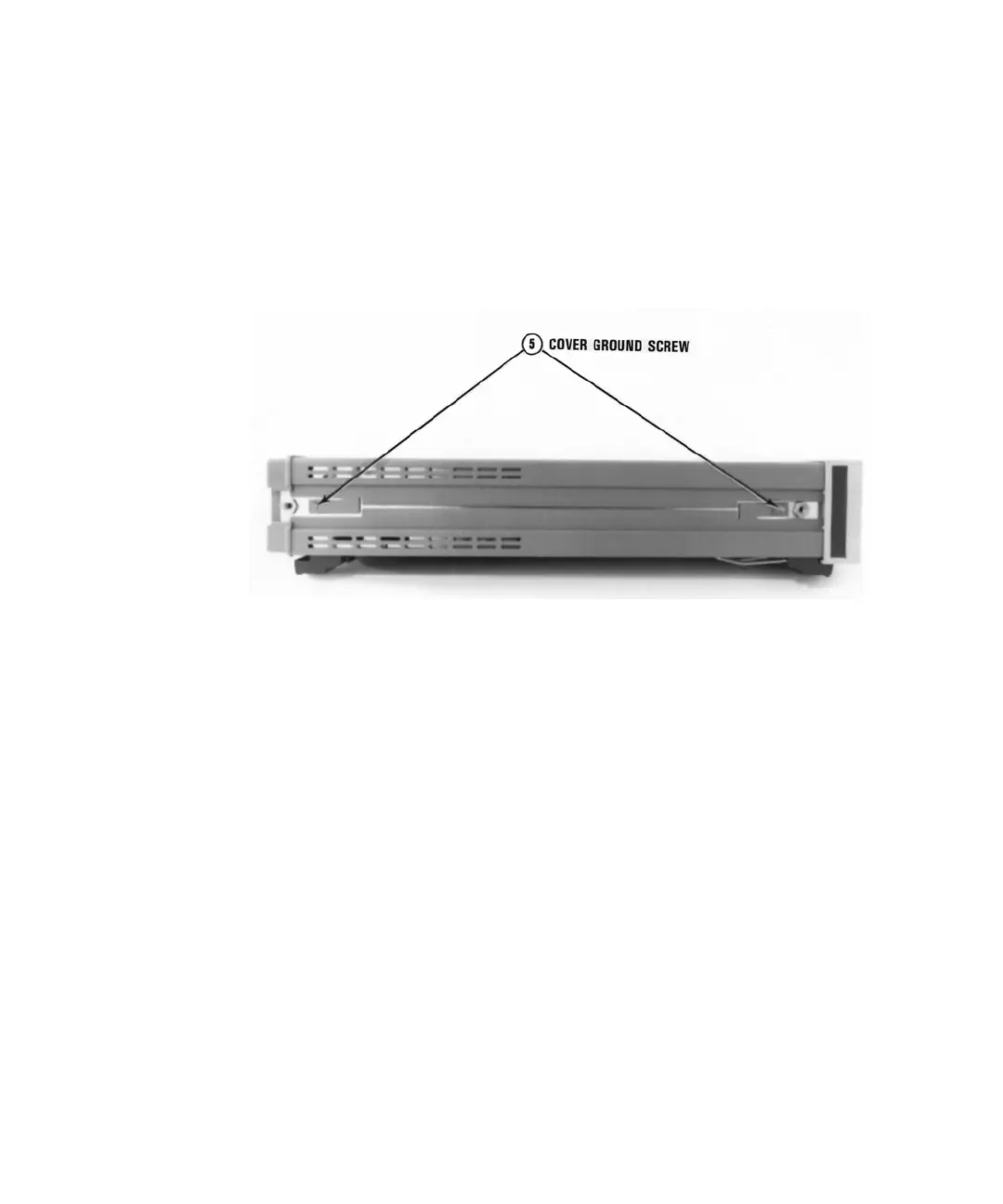

Figure 3-3 Remove/Install cover ground screws
