3 Disassembly/Assembly Procedures and Parts List
86 Keysight 3458A Assembly-Level Repair Manual

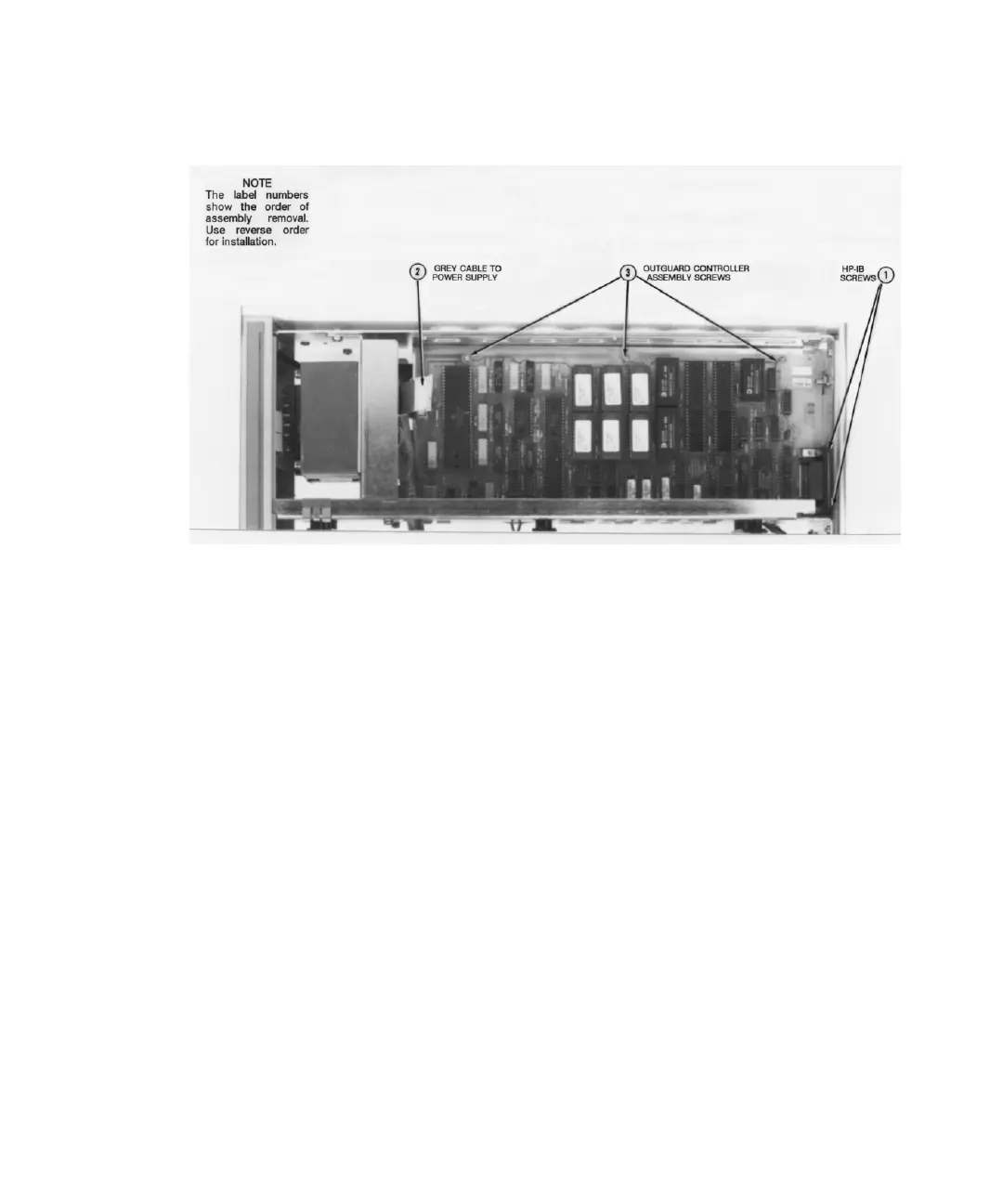

Figure 3-14 Outguard controller assembly removal/installation
6 Set the 3458A on your workbench with the top facing you.
7 Refer to Figure 3-12. Locate the cable connected to the power transformer.
Line up the cable plug with the socket on the Inguard Power Supply assembly.
Then plug the cable in.
8 Use the Covers installation procedure in this section of the manual to install
the 3458A top/bottom covers and top/bottom shields.
