Planning
2
Site Preparation
2-3

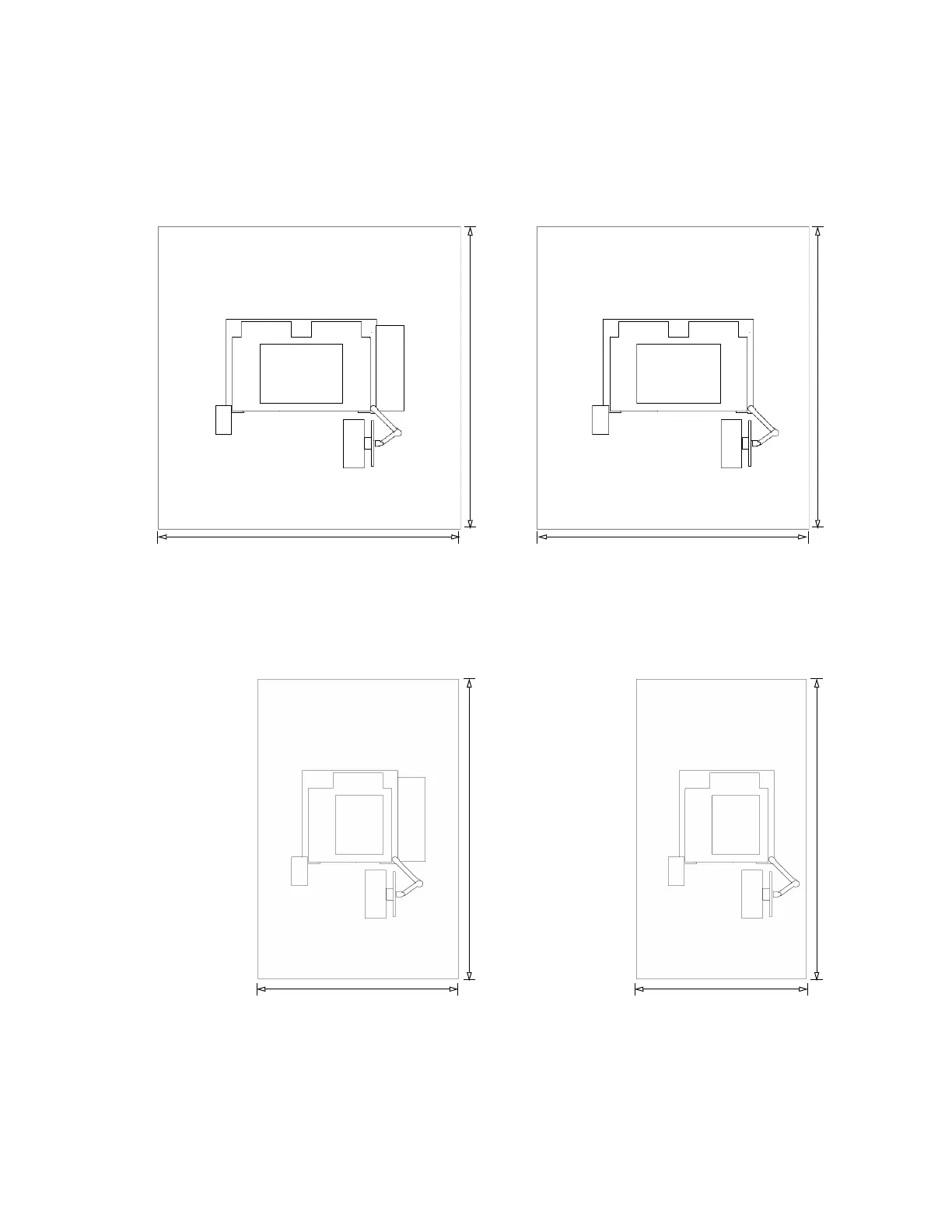

Figure 2-1
Recommended layouts for E9903G/E9902G
Figure 2-2
Recommended layouts for E9905G
E9903G/E9902G
E9903G/E9902G with side pod
3 m
3 m
2.7 m
tes
thea
d
side pod
monitor &
keyb
oard
strip
printer
3 m
E9905G
E9905G with side pod
1.7 m
testhea
d
side pod
monitor &
keyb
oard
strip
printer
3 m
2 m
1.7 m
3 m
14
16
Table of Contents
Table of Contents
3
Site Preparation Process
5
The Importance of Site Preparation
6
Responsibilities
7
Keysight's Responsibilities
7
Customer's Responsibilities
8
The Site Preparation Process
9
Site Prep Checklist
10
Planning
13
The System Plan Drawing
14
Assigning Specialists
16
Structural Requirements
17
Floor Requirements
18
Anti-Static Surface
18
Moving Access Requirements
19
Dimensions of the Crated System
19
Dimensions of the Uncrated System
20
Equipment Rating
20
Access Requirements
21
Storage Space Requirements
22
RF Attenuation Requirements
23
Introduction
24
Calculating Site Attenuation
26
Environmental Requirements
29
Air Quality Requirements
30
Air Temperature Requirements
31
Air Temperature Specifications
31
Cooling Requirements
32
Humidity Requirements
32
Power Requirements
33
Customer Responsibilities
34
About the PDU
34
Power Requirements
35
Mains Disconnect
35
Power Drop
36
Basic Power Quality Survey
38
Connecting Power to the PDU
39
Is PDU Re-Wiring Necessary
40
PDU Wiring Diagrams
41
PDU and AC Outlets
41
Wiring Diagrams
43
Introduction
46
Compressed Air Requirements
47
Connecting Air to the Testhead
47
Compressed Air Specifications
48
Air Quality
48
Vacuum Requirements
49
Vacuum Recommendations and Guidelines
49
Compressed Air and Vacuum Primer
50
Receiving and Moving Instructions
53
Receiving the System
54
Re-Shipping a System
55
4
