Keysight DSOX3104T - Common Logarithm; Natural Logarithm

116 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
5 Math Waveforms
See Also • “Square" on page 115
Common Logarithm
The Common Logarithm (log) function performs a transform of the input source.
Where the transform is undefined for a particular input, holes (zero values) appear
in the function output.
See Also • “Natural Logarithm" on page 116
Natural Logarithm
The Natural Logarithm (ln) function performs a transform of the input source.
Where the transform is undefined for a particular input, holes (zero values) appear
in the function output.

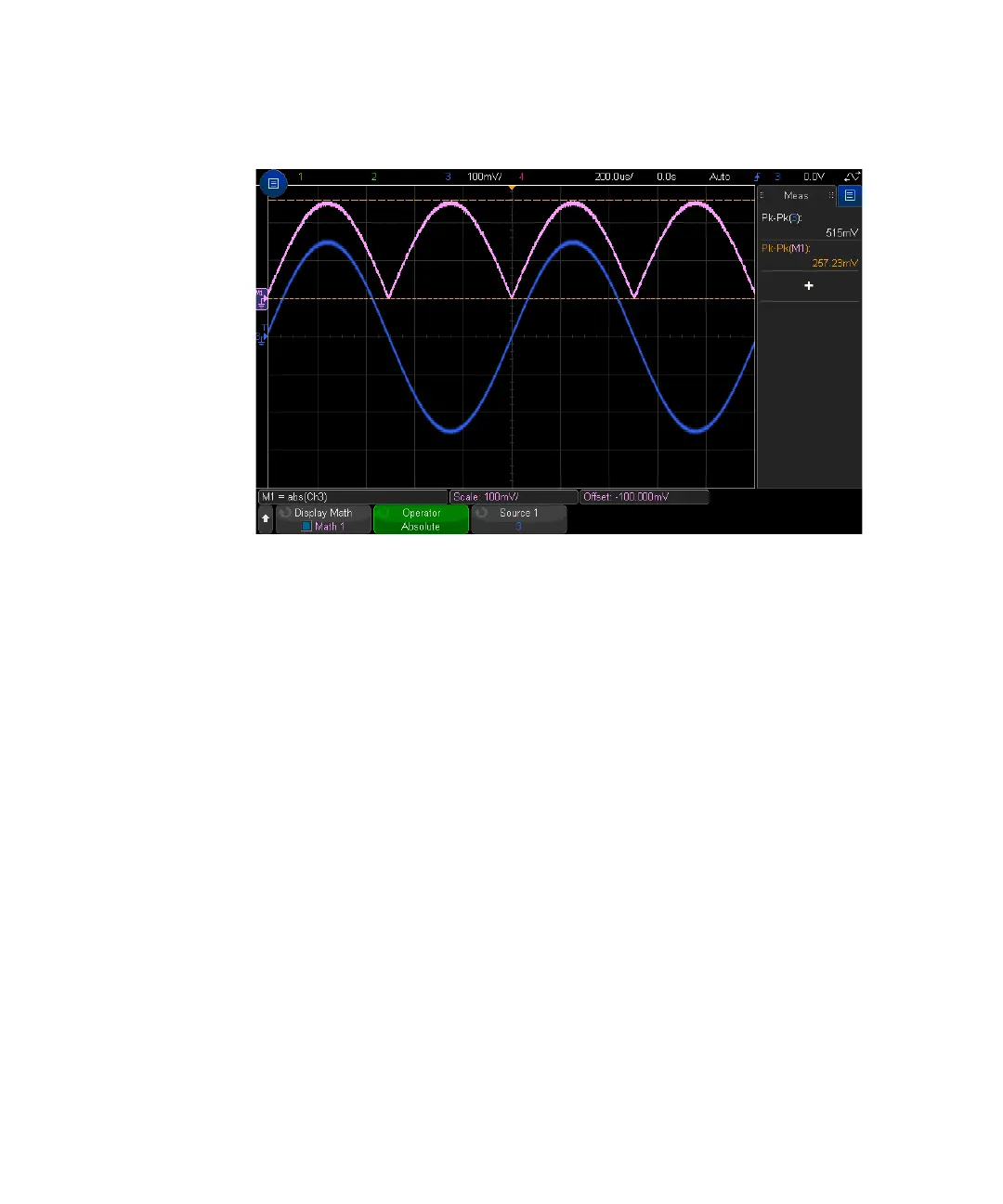

Figure 13 Example of Absolute Value
