Horizontal Controls 2
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 71
To display the zoomed time base
Zoom, formerly called Delayed sweep mode, is a horizontally expanded version of
the normal display. When Zoom is selected, the display divides in half. The top
half of the display shows the normal time/div window and the bottom half
displays a faster Zoom time/div window.
The Zoom window is a magnified portion of the normal time/div window. You can
use Zoom to locate and horizontally expand part of the normal window for a more
detailed (higher-resolution) analysis of signals.
To turn on (or off) Zoom:
1 Press the zoom key (or press the [Horiz] key and then the Zoom softkey).

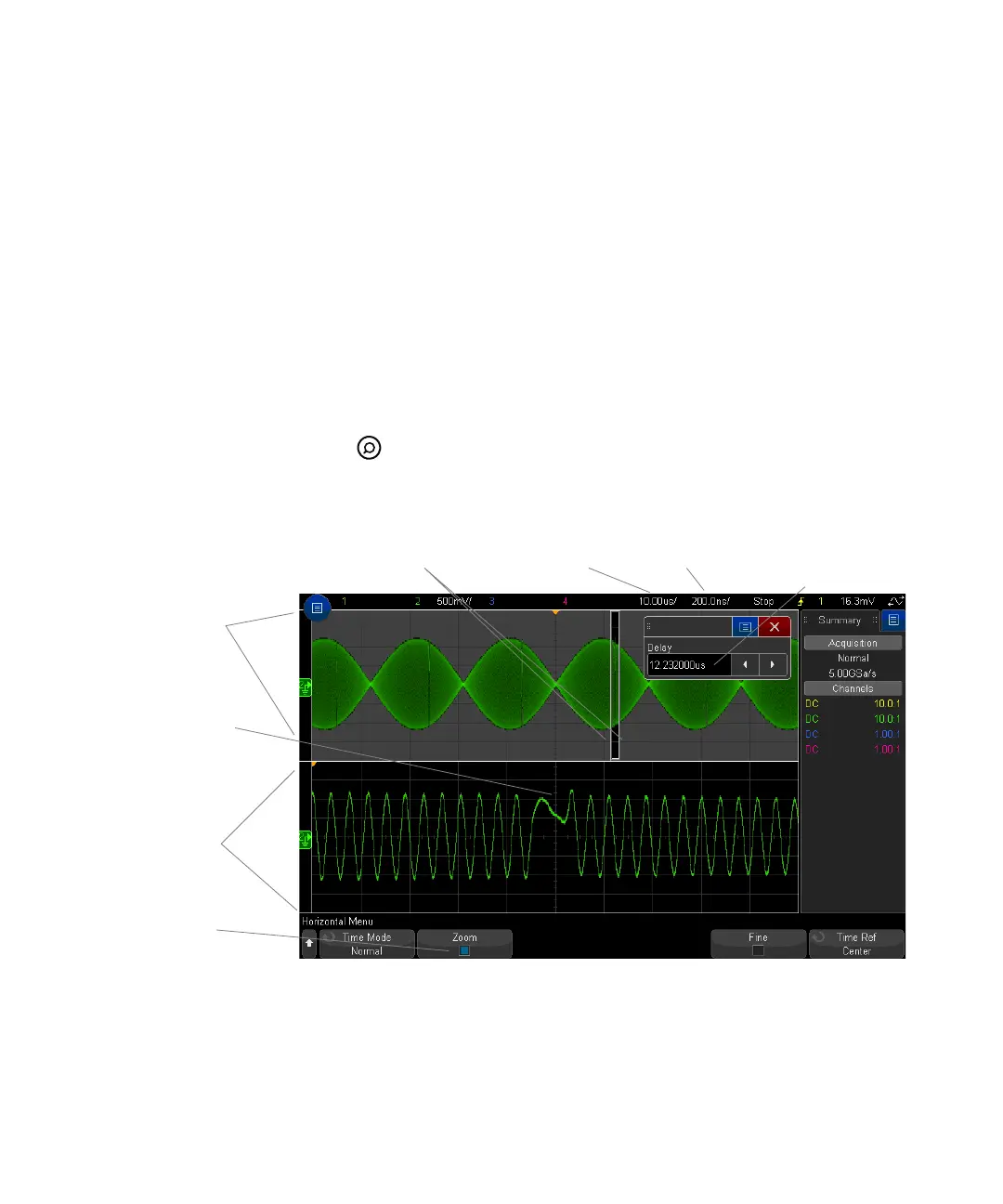

The area of the normal display that is expanded is outlined with a box and the rest
of the normal display is ghosted. The box shows the portion of the normal sweep
that is expanded in the lower half.
These markers show the
beginning and end of the
Zoom window
Normal
window
Time/div
for zoomed
window
Time/div
for normal
window
Delay time
momentarily displays
when the Horizontal
position knob is turned
Zoom
window
Signal
anomaly
expanded
in zoom
window
Select
Zoom
