To isolate a pulse for Top measurement
The following figure shows how to use Zoom mode to isolate a pulse for a Top
measurement.
You may need to change the measurement window setting so that the
measurement is made in the lower, Zoom window. See “Measurement
Window" on page 272.
Base
The Base of a waveform is the mode (most common value) of the lower part of the
waveform, or if the mode is not well defined, the base is the same as Minimum.
The Y cursor shows the value being measured.
Overshoot
Overshoot is distortion that follows a major edge transition expressed as a
percentage of Amplitude. The X cursors show which edge is being measured (edge
closest to the trigger reference point).

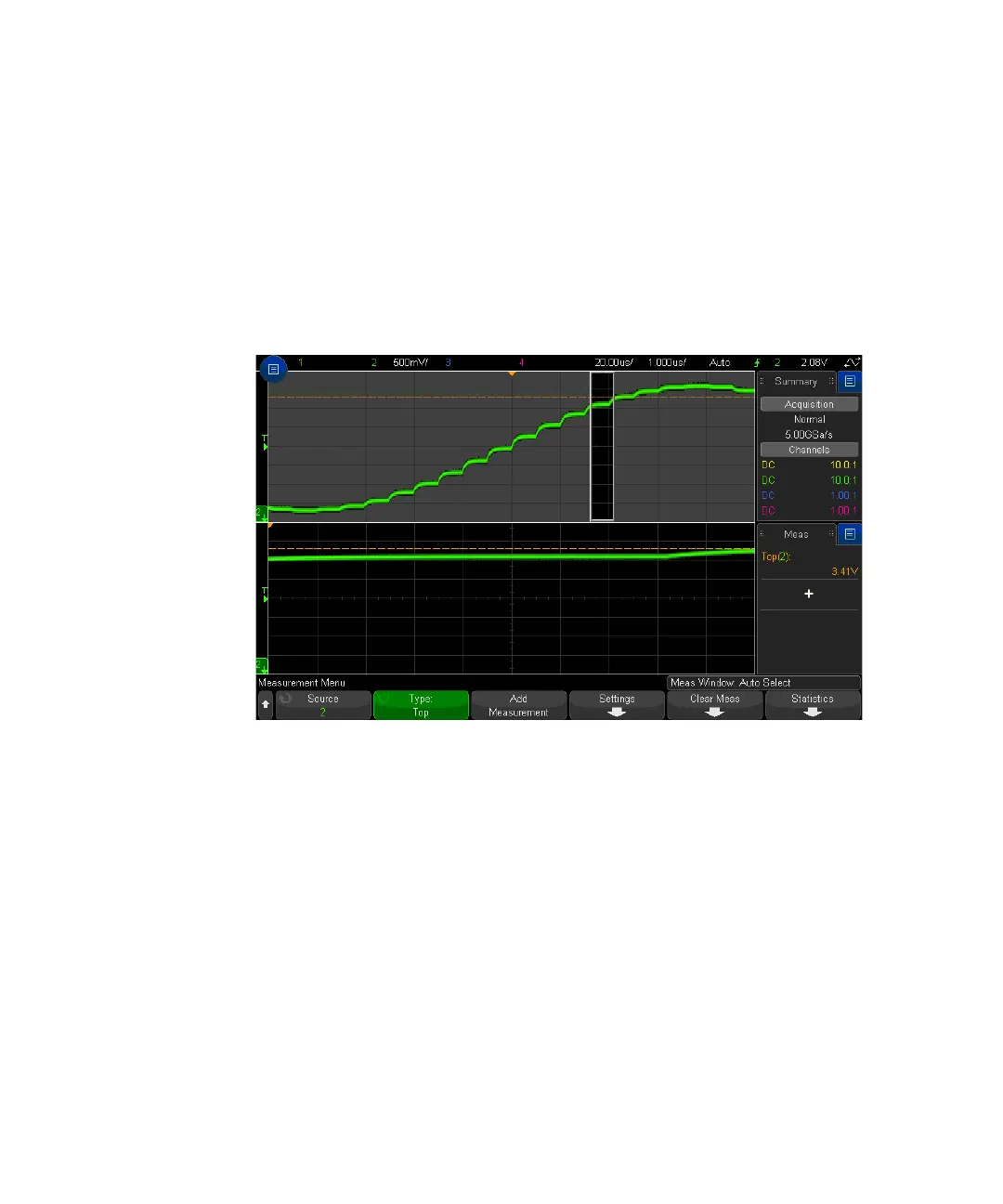

Figure 47 Isolating area for Top measurement
