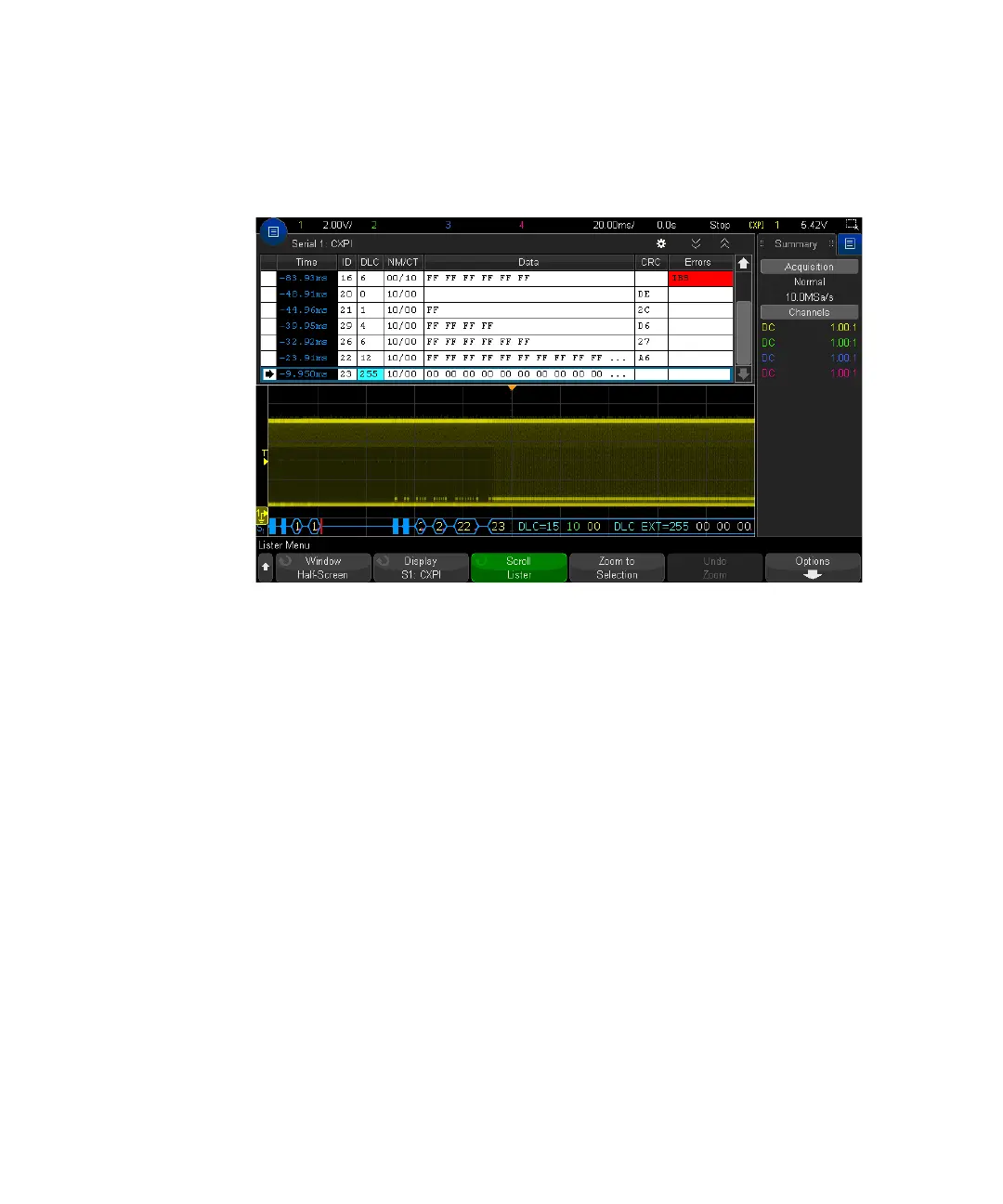

Interpreting CXPI Lister Data
In addition to the standard Time column, the CXPI Lister contains these columns:
• ID — value in Hex.
• DLC — (Data Length Code) values in Decimal.
• NM/CT — (Network Management/Counter) values in Binary.
• Data — values in Hex.
For sleep frames, data values are replaced by the text "SLEEP FRAME".
• CRC — value in Hex.
• Errors — string value that displays the type of error detected:
• CRC — CRC Error.
• Parity Error.
• IBS — IBS Error.
• Fr — Frame Error.
• LEN — LENGTH Error.
• SAMP — SAMPLE Error.
