Frequency Response Analysis 18
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 297

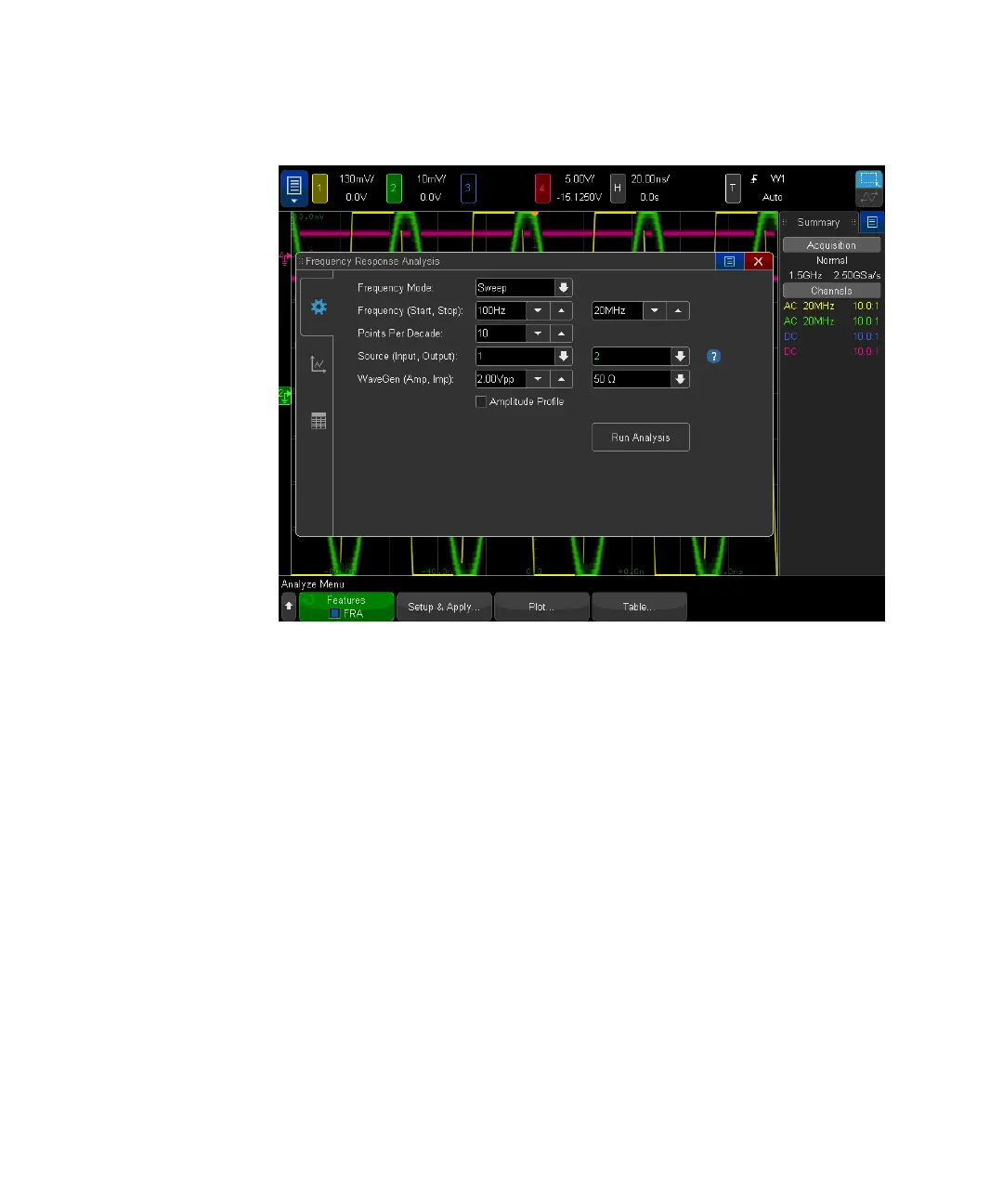

There are settings for:
• The start and stop frequencies in the sweep, as well as the number of points
per decade.
• The channels probing the input and output. (Click the help icon to view a
connection diagram.)
• The waveform generator amplitude and expected output load impedance.
To specify different amplitudes for different decades, select Amplitude Profile.
The output impedance of the Gen Out signal is fixed at 50 ohms. However,
the output load selection lets the waveform generator display the correct
amplitude and offset levels for the expected output load. If the actual load
impedance is different than the selected value, the displayed amplitude and
offset levels will be incorrect.
5 Click the Run Analysis softkey.
