1Getting Started
Product at a Glance
22 E3632A User’s Guide
Display annunciators

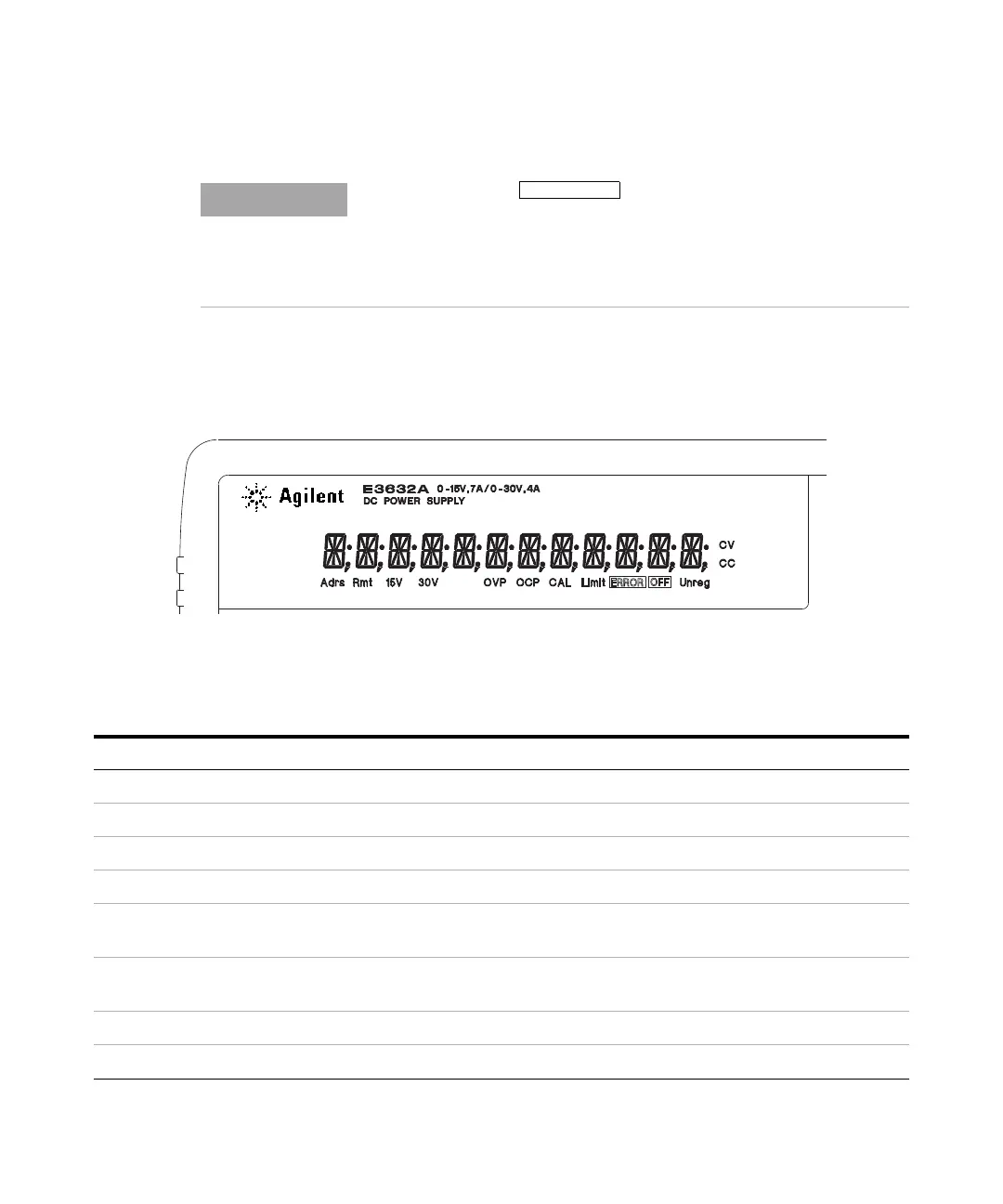

Figure 1-5 Display annunciators
Use the front-panel key to:
• Select the GPIB or RS-232 interface (see Chapter 2).
• Set the GPIB bus address (see Chapter 2).
• Set the RS-232 baud rate and parity (see Chapter 2).
Table 1 - 5 Display annunciators overview
Item Description
Adrs The power supply is addressed to listen or talk over a remote interface.
Rmt The power supply is in the remote interface mode.
15 V Shows the 15 V/7 A range is selected.
30 V Shows the 30 V/4 A range is selected.
OVP The overvoltage protection function is enabled when the annunciator turns on or the overvoltage
protection circuit has caused the power supply to shut down when the annunciator flashes.
OCP The overcurrent protection function is enabled when the annunciator turns on or the overcurrent
protection circuit has caused the power supply to shut down when the annunciator flashes.
CAL The power supply is in the calibration mode.
Limit The display shows the limit values of the voltage and current.
