Testing Performance 2
2000/3000 X-Series Oscilloscopes Service Guide 41
1 Connect the equipment (see Figure 7).
a Use the N cable to connect the signal generator to the input of the power
splitter input.
b Connect the power sensor to one output of the power splitter.
c Use an N-to-BNC adapter to connect the other splitter output to the
channel 1 input.

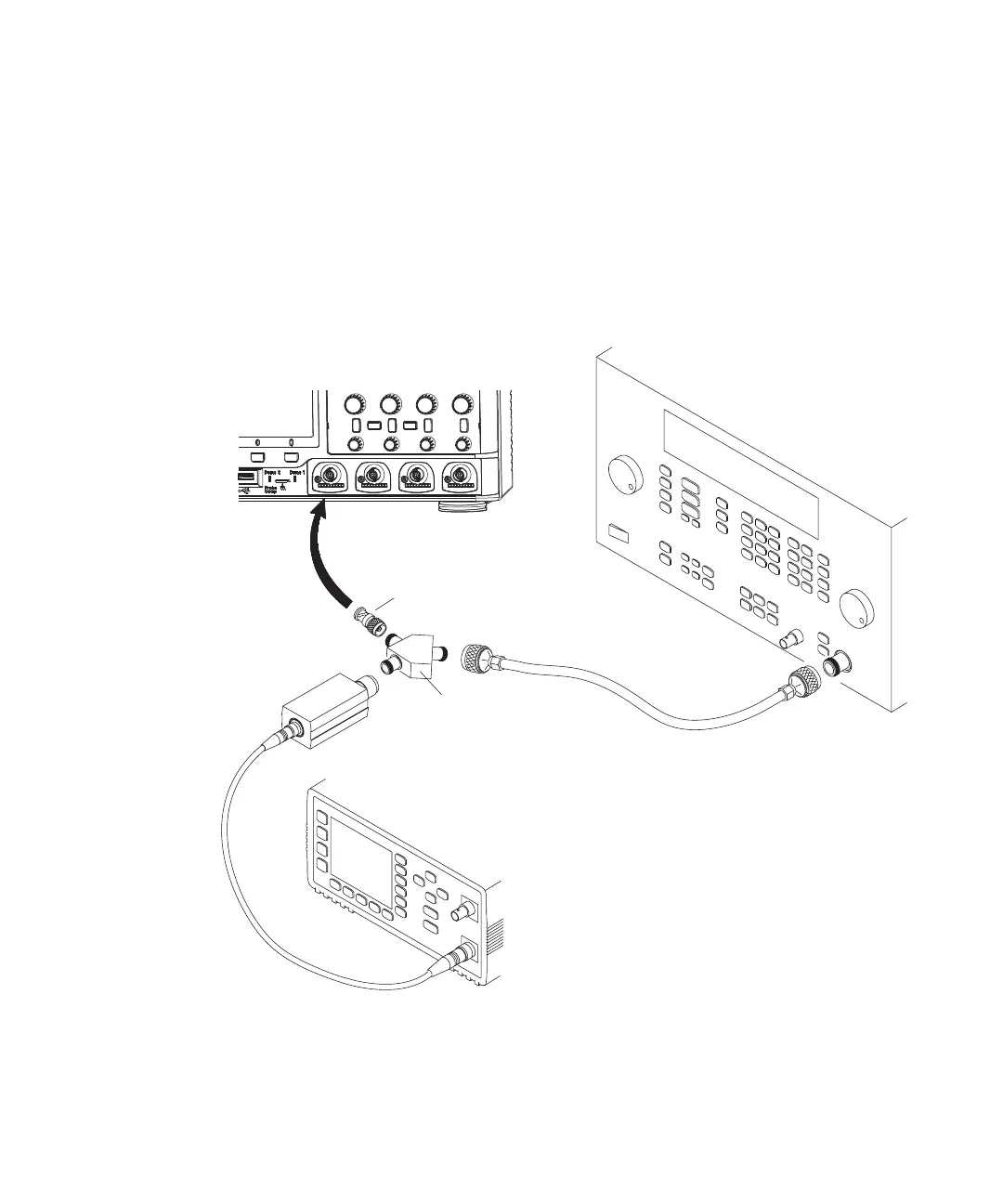

Figure 7 Setting Up Equipment for Bandwidth (-3 dB) Verification Test
Power Splitter
Power Sensor
Signal
Generator
Oscilloscope
Power
Meter
N Cable
N to BNC Adapter
