Keysight InfiniiVision 2000 X Series - Exploded Views; Figure 14 Exploded View

76 2000/3000 X-Series Oscilloscopes Service Guide
6 Replaceable Parts
Exploded Views

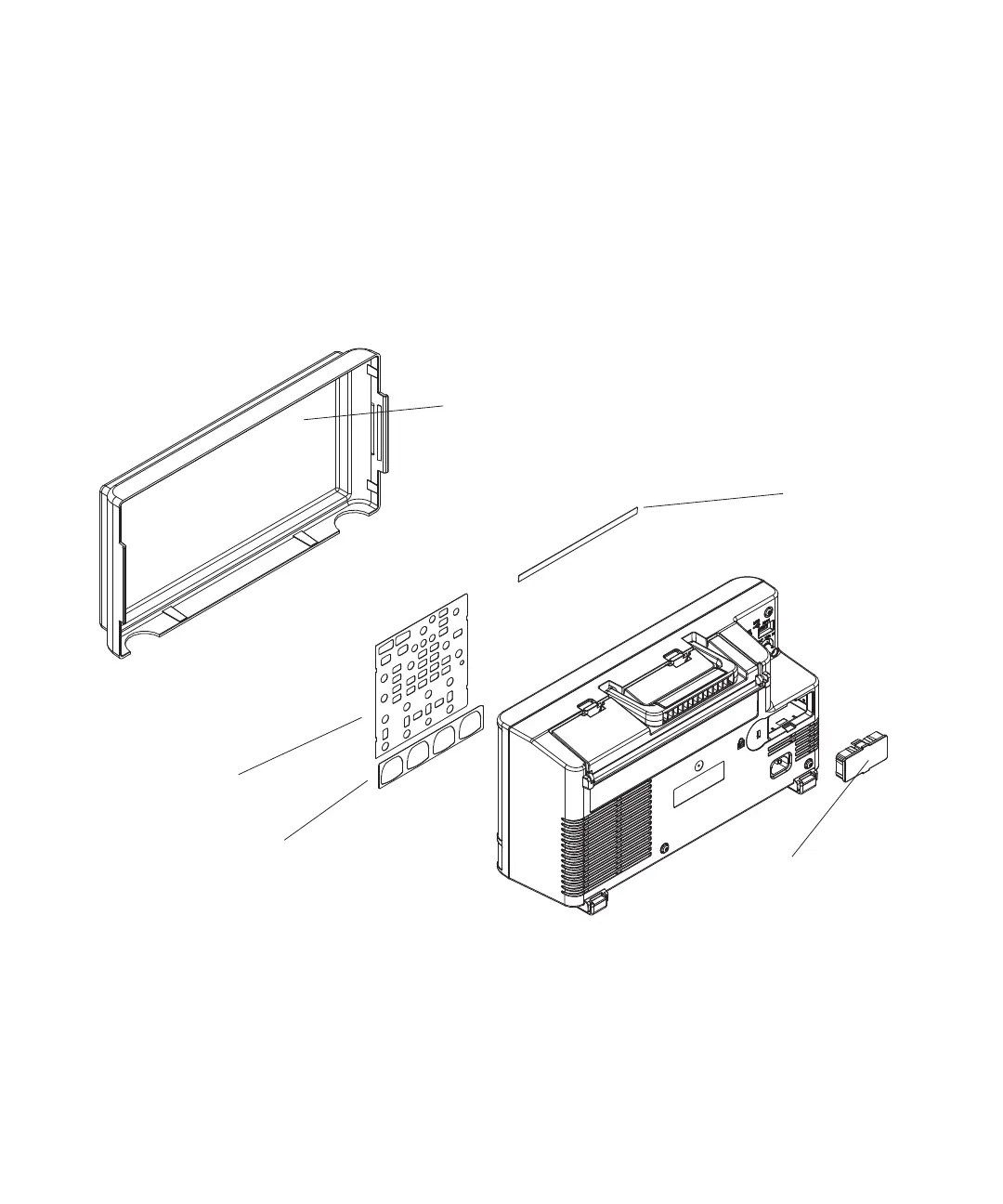

The following exploded views provide a graphical representation of the
oscilloscope at the time this manual was released. Not all parts are shown. Your
parts may be slightly different than those shown. These views provide reference
designator numbers that map to those used in the parts list table in this chapter.
Figure 14 Exploded View
MP10
MP1
MP6,
MP33
MP2
MP35
