38 2000/3000 X-Series Oscilloscopes Service Guide
2 Testing Performance

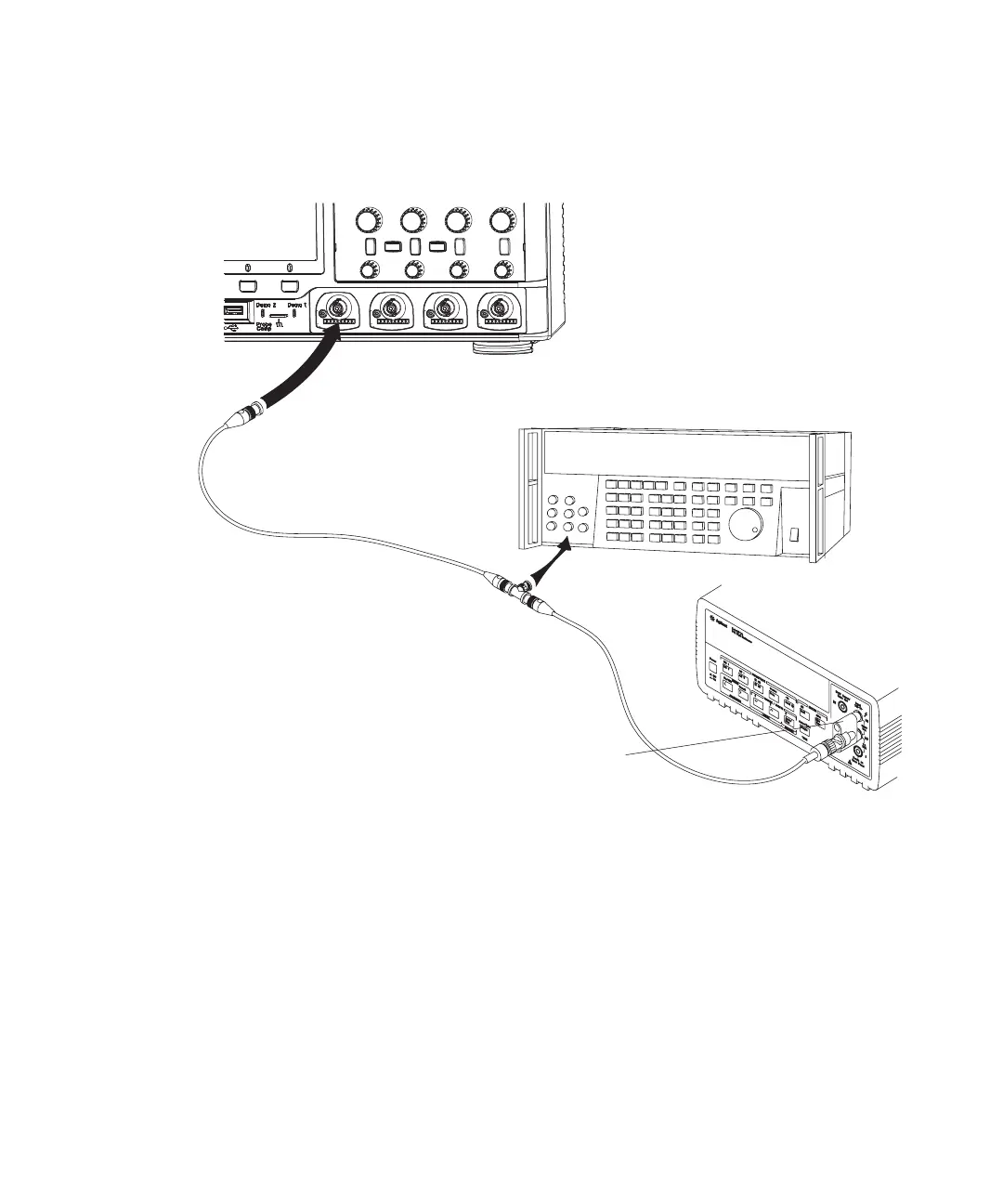

Figure 5 Setting up Equipment for Dual Cursor Accuracy Test
6 Adjust the output so that the multimeter reading displays the first Volts/div
calibrator setting value in Table 11 or Table 12 (depending on the oscilloscope
model).
7 Disconnect the multimeter.
8 Wait until the measurement settles.
9 Press the Y2 softkey, then position the Y2 cursor to the center of the voltage
trace using the Entry knob.
Oscilloscope
Oscilloscope
Calibrator
Digital
Multimeter
BNC Tee
BNC (f) to dual
bananna adapter
