Keysight N774-C & 8162-C Series User’s Guide 43
Getting Started 2
To use a quad-adapter to connect optical fibers to the power meter inputs:
1 Select the quad-adapter that suits the optical connector that your
optical fiber is terminated with.
2 Attach the optical connectors to the quad-adapter. You can attach up
to 4 fibers to the quad-adapter at the same time.
3 Make sure the number labels on the quad-adapter are at the top.
4 Connect the quad-adapter to the optical inputs by pressing it on until
it clicks securely into place, without pressing the release levers.
Removing Quad-adapter Interfaces from the Power Meter

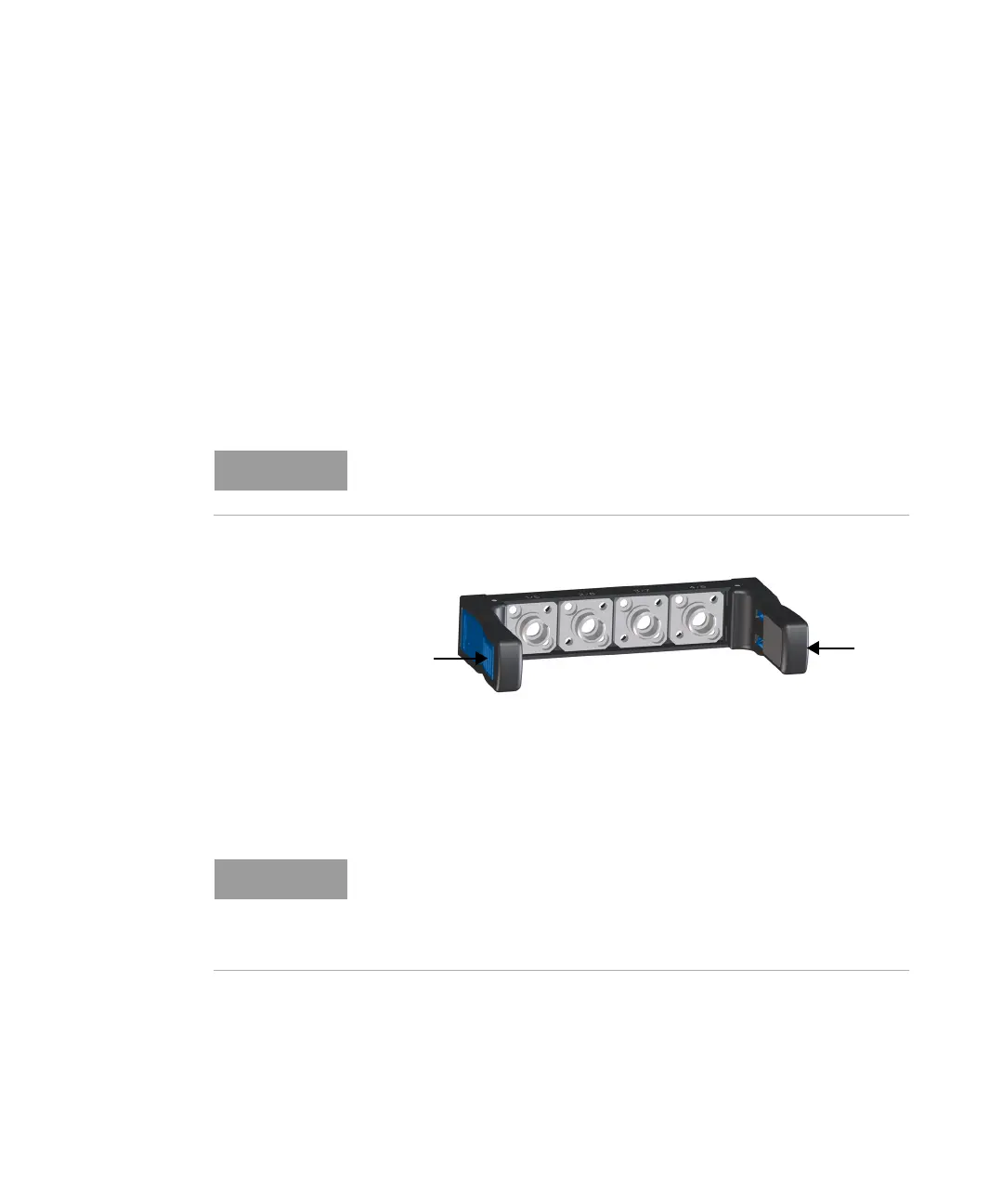

Figure 22 Removing Quad-Adapter Interface
1 Press the release levers on both sides of the quad-adapter to release it
from the front panel of the power meter.
2 You can now remove the optical connectors from the quad-adapter.
There are release levers on both sides of the quad-adapter for removing
it from the optical inputs.
Release
Lever
Release
Lever
Always place the dust cap on unused connector interfaces.
You can use the quad-adapter dust caps to protect the four power meter
inputs and the rear of the quad-adapter, for example, when fibers are
attached.
