58 Keysight N774-C & 8162-C Series User’s Guide
2 Getting Started
N774-C User Interface

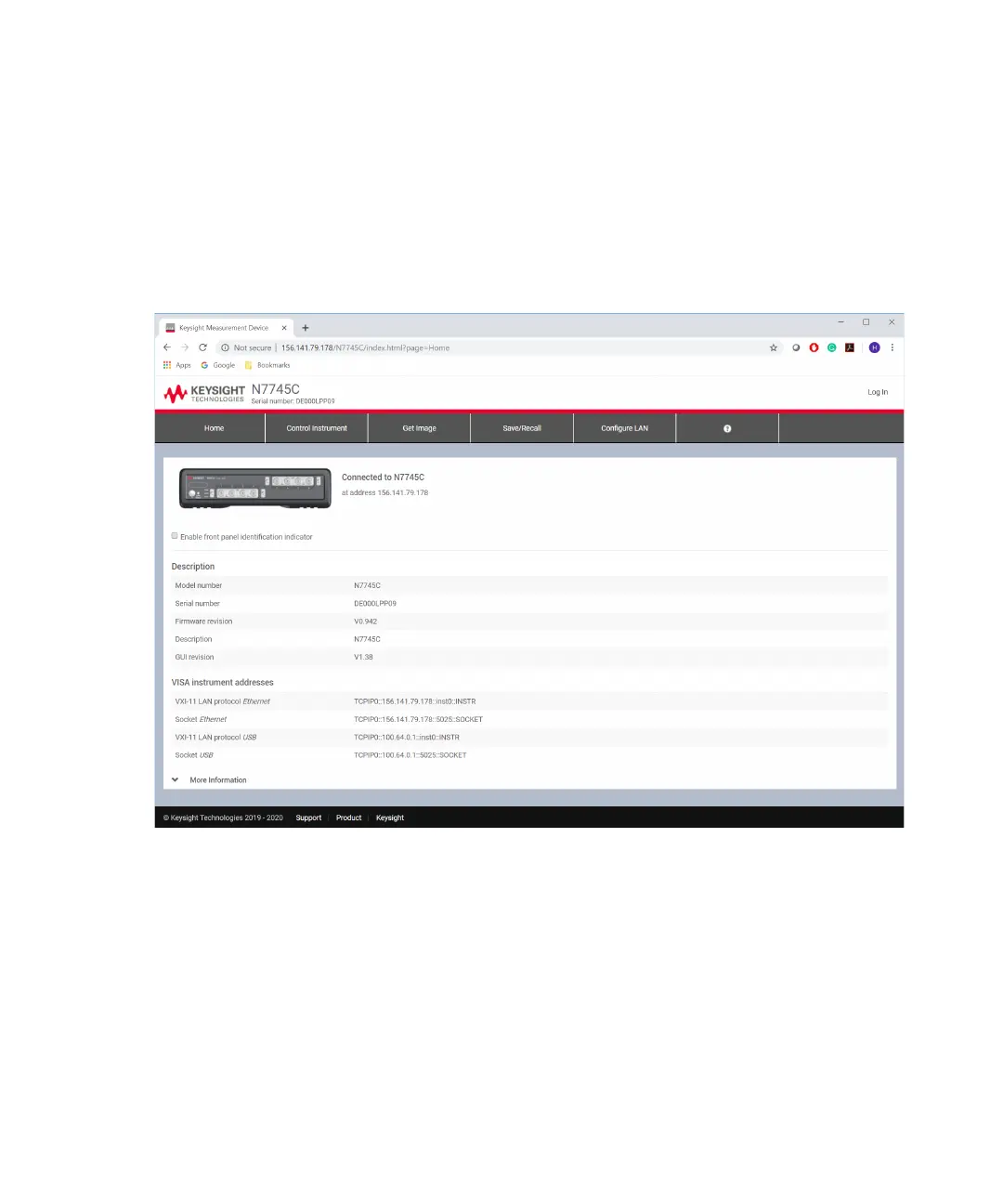

Figure 23 depicts an example of N7745C multiport power meter user
interface that displays the instrument’s connection settings. The below
figure is also valid for all N774-C instruments.
Figure 23 N774-C User Interface
For details on the N774-C user interface and how to use it to control the
instrument, refer to User Interface Reference on page 71.
