Controlling N774-C Instruments
Control Instrument Tab
The Control Instrument tab displays the measured power of each channel
of the N774-C instruments. When you launch the Control Instrument tab,
by default, All Channel button is selected. This means that the user
interface will show the measured power of all available (4 or 8) channels,
depending upon the N774-C instrument type. The blue highlighted region
on the channel scale denotes the measured power level.

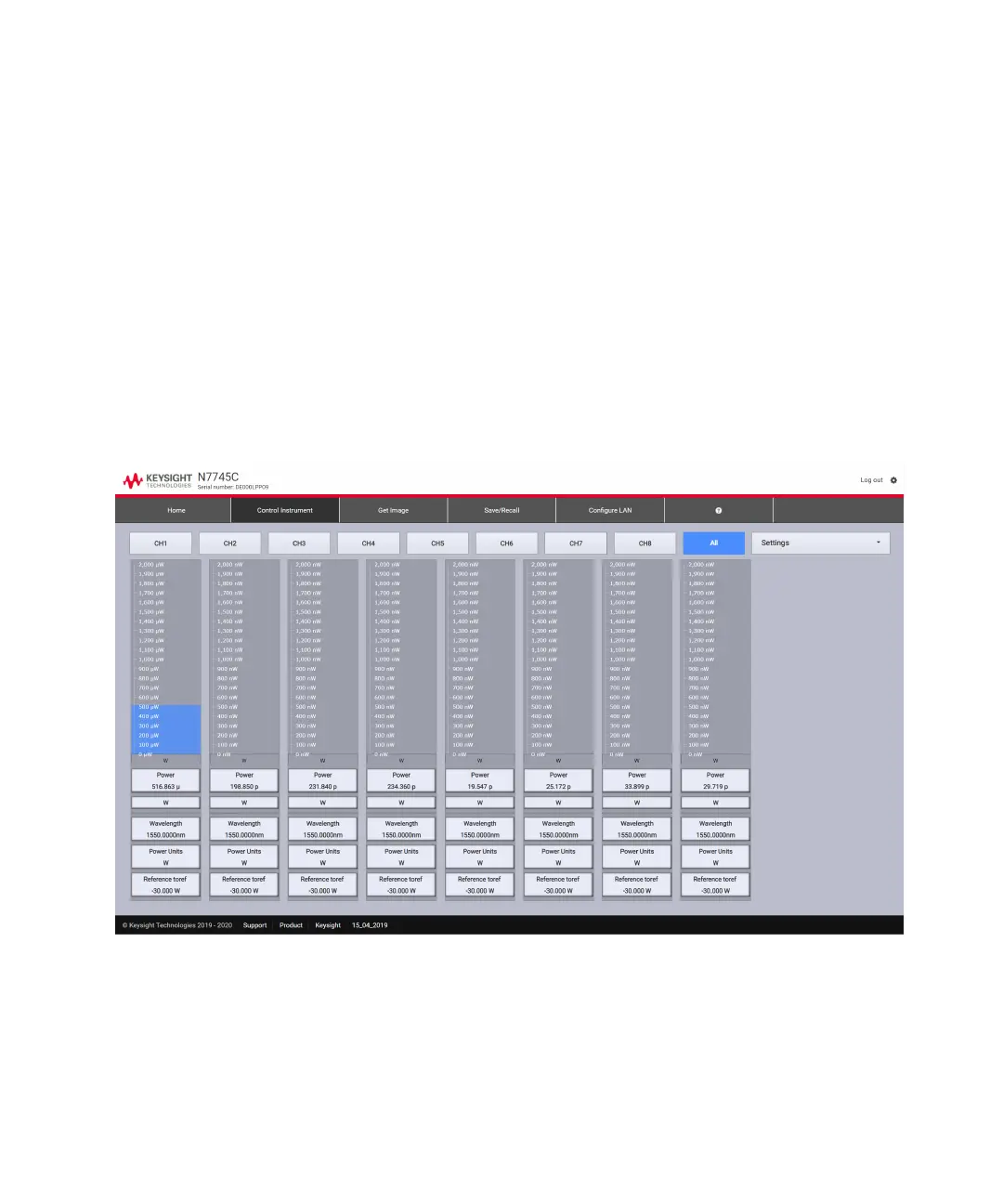

The following image shows the N7745C interface displaying measured
power of 8 channels:
The Control Instrument tab also allows you to configure an individual
channel. To do so, click on the channel button, for example CH1 button
for channel 1.
It will show the details of the respective channel as shown in the following
figure:
