Keysight N774-C & 8162-C Series User’s Guide 27
Getting Started 2
N774-C Series Instrument’s Front and Rear Panels
This section provides information on the front panel of N774-C multiport
power meters.
N7742C Power Meter

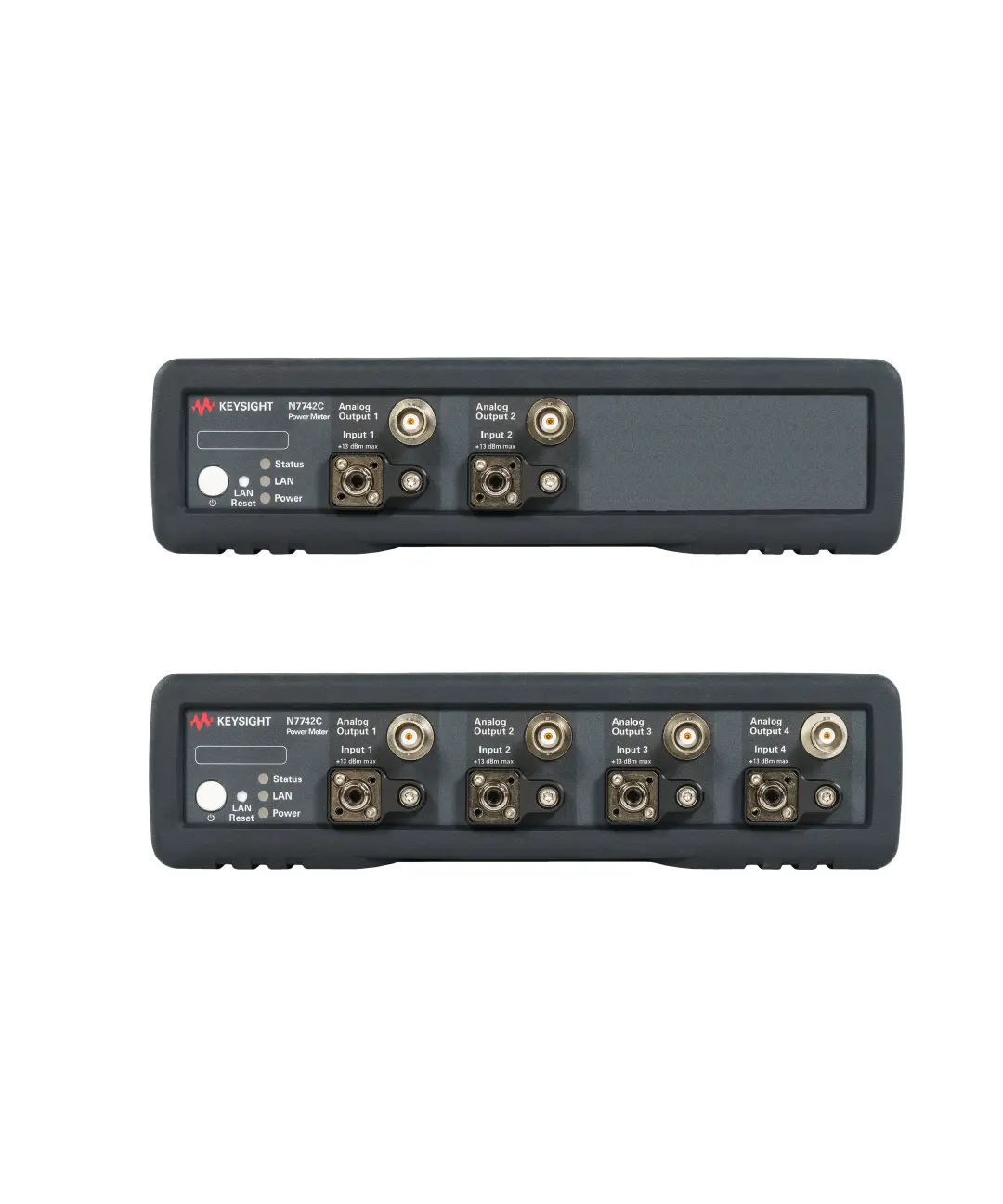

Figure 3 Front panel of the N7742C 2-port power meter
Figure 4 Front panel of the N7742C 4-port power meter
