N774-C Series User Interface

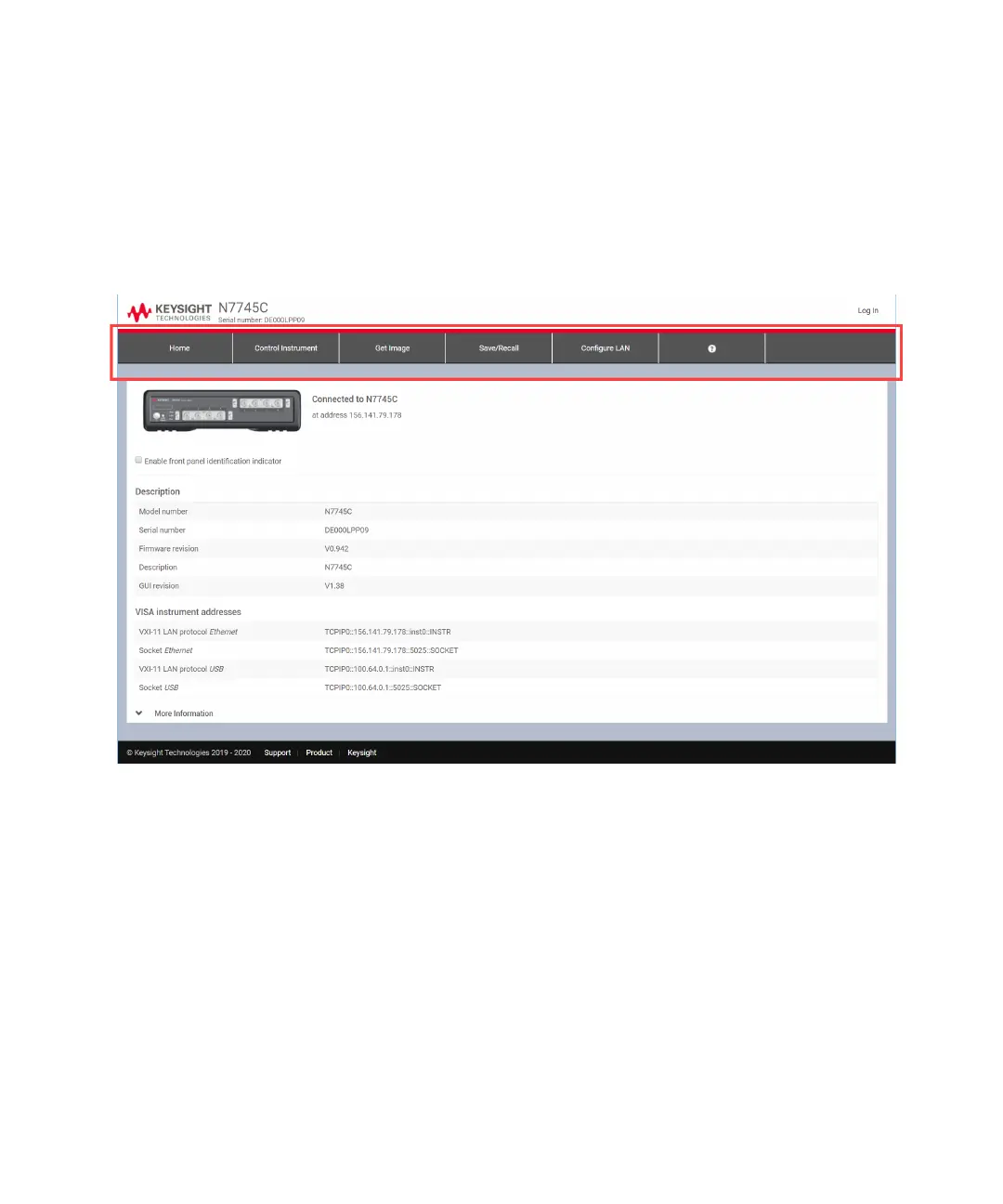

Figure 27 shows the N7745C user interface with various tabs highlighted.
The same user interface is applicable for all N774-C instruments.
Figure 27 N7745C User Interface
The N774-C series user interface has the various tabs that help the user to
control the instrument:
• Home – This tab displays the various instrument settings. For details,
refer How to Get Current Instrument Settings? on page 88.
• Control Instrument – This tab allows you to set the parameters to
control the instrument. For details, refer to Controlling N774-C
Instruments on page 74.
• Get Image – This tab allows you to capture a screen of the Control
Instrument window. The image is saved in PNG format in your PC. For
details, see How to Capture an Image of the Graph? on page 89.
