Keysight N9010B EXA Signal Analyzer Service Guide 421
Replaceable Parts
Hardware

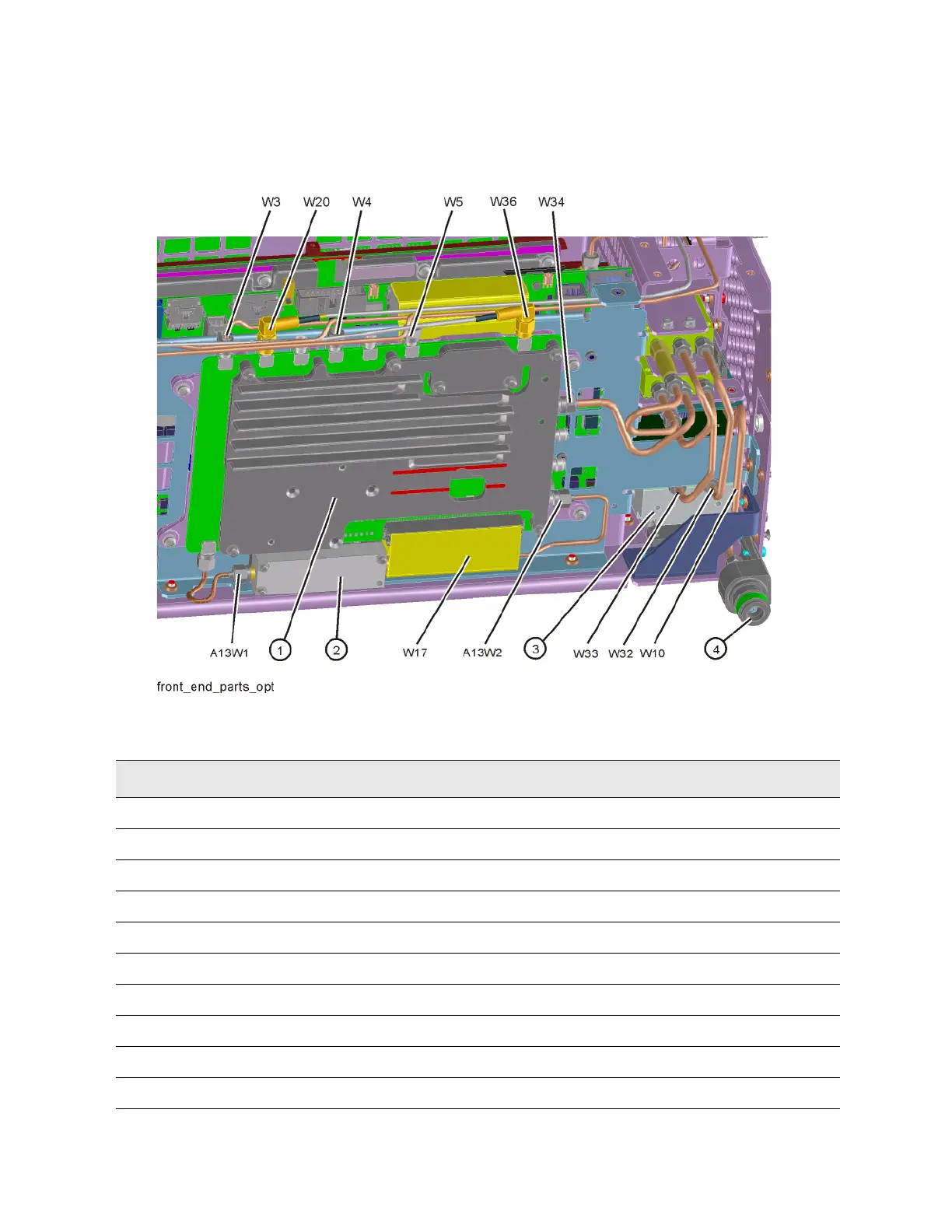

Figure 14-16 Front End Parts - RF/Microwave Instruments with Options MPB, B40, DP2,
CR3, or CRP
Table 14-18
Item Description Keysight Part Number
1 A13 RF Front End Assembly N9020-60314
2 A13A1 Bandpass Filter 0955-2469
A13W1 Cable Assembly, A13J10 to A13A1 Input (semi-rigid) E6607-21178
A13W2 Cable Assembly, A13J10 to A13A1 Input (semi-rigid) N9020-20231
3 A12 YTF Preselector (not used in Opt 503) 5087-7382
4 J1 Type-N (f) RF Input Connector Assembly (Option 503, 507, 513, 526) 5002-0702
W3 Cable Assembly, A11J2 to A13J2 (semi-rigid) N9020-20101
W4 Cable Assembly, A14J740 to A13J4 (semi-rigid) N9020-20156
W5 Cable Assembly, A16J702 to A13J1 (semi-rigid) N9020-20064
W10 Cable Assembly, J1 to A9 Input (semi-rigid) N9020-20141
