470 Keysight N9010B EXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area (Option 503, 507, 513, 526)
10.Refer to Figure 15-26. Connect ribbon cable W18 to J4 of the A11 Low
Band Switch.
11.Attach the coaxial fixed attenuator (1) Switch 2 port 1. Torque to
10 inch-lbs.

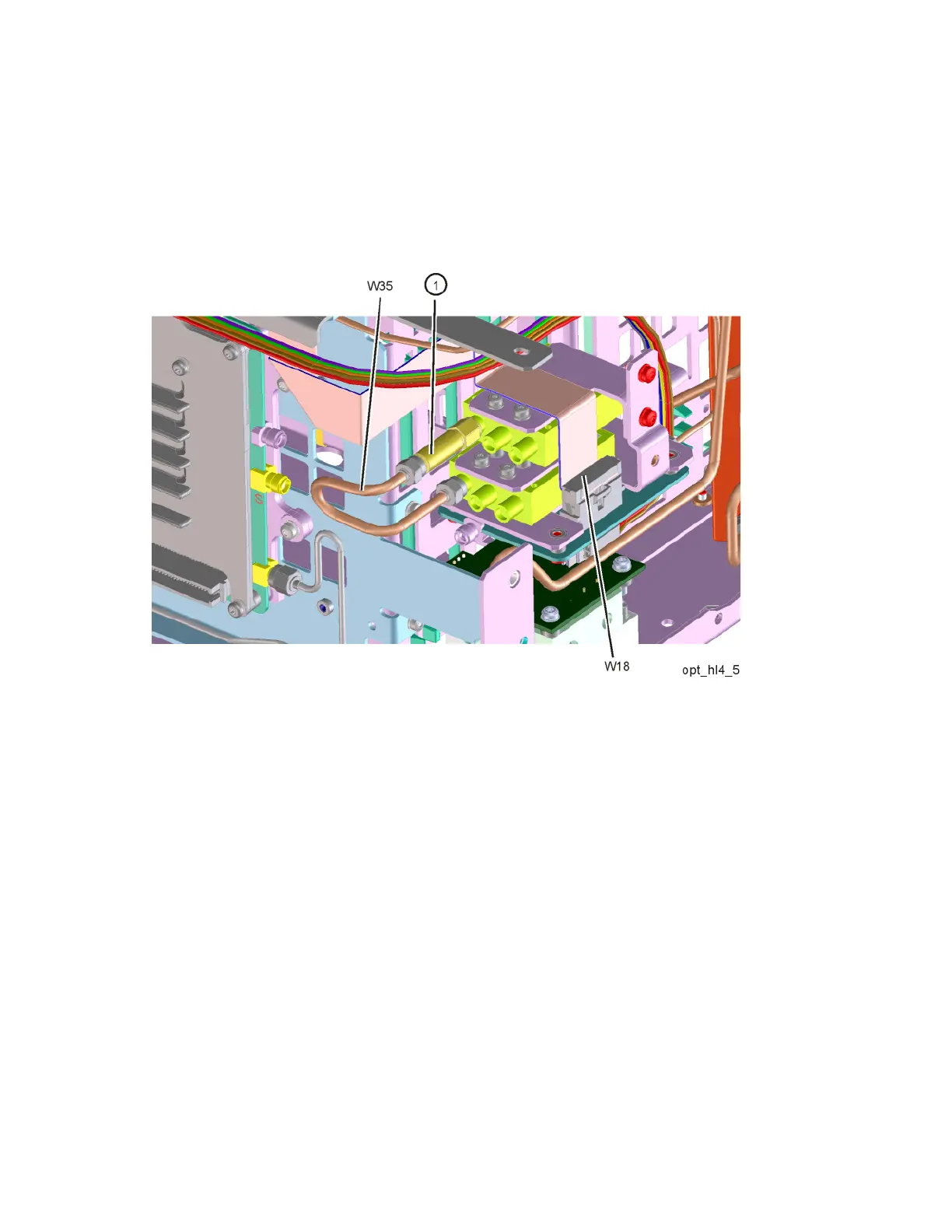

Figure 15-26 Attenuator Installation
12.Connect W35 semi-rigid coax cable between the coaxial fixed attenuator
(1) and port 1 of Switch 1 (the lower switch). Torque to 10 inch-pounds.
