Fuses
SPARE3 (B+) 10A Not Used
A/C2 10A
A/C Control Module, High Pressure Valve, Refrigerants Valve #1/#2 P/R Junc -
tion Block (Blower Relay), BSA Chiller #1, A/C Coolant Valve
AMP 25A AMP (Amplifier)
P/WINDOW RH 25A
Passenger Safety Power Window Module (LHD), Driver Safety Power Window
Module (RHD), Rear Power Window Switch RH
MODULE6 7.5A IBU (Integrated Body Control Unit)
MODULE5 10A
Data Link Connector, Electro Chromic Mirror, E-CALL Unit, ADP, Audio/Video &
Navigation Head Unit, Crash Pad Switch, Head Lamp LH/RH, AMP (Amplifier),
Smart Phone Wireless Charger, Driver/Passenger Power Seat Module, Front Air
Ventilation Seat Control Module, Front Seat Warmer Control Rear Seat Warmer
Control Module, Console Floor Switch, Auto Head Lamp Leveling Device Mod
-
ule, IFS (Intelligent Front-Lighting System) Module
SPARE1 (ACC) 10A Not Used
E-CALL 10A E-CALL Unit
IBU1 15A IBU (Integrated Body Control Unit)
BRAKE SWITCH 10A Stop Lamp Switch, IBU (Integrated Body Control Unit)
P/SEAT DRV 30A
Driver Power Seat Switch, Driver Power Seat Module (With IMS (Integrated
memory system))
A/C1 7.5A A/C Control Module
AIR BAG1 15A SRS (Supplemental Restraint System) Control Module
MODULE2 10A
AMP (Amplifier), ADP, P/E Junction Block (Power Outlet Relay), IBU (Integrated
Body Control Unit), E-CALL Unit, ADAS Unit, Audio/Video & Navigation Key
-
board, Audio/Video & Navigation Head Unit
MULTIMEDIA 15A Audio/Video & Navigation Head Unit
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Dead Lock Relay
MODULE1 10A
Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor,
UIP Siren, UIP Sensor, PTG Unit, Driver Door Module, Driver/Passenger Outside
Mirror Unit
P/SEAT PASS 30A Passenger Power Seat Switch, Passenger Power Seat Module
S/HEATER RR 25A Rear Seat Warmer Control Module

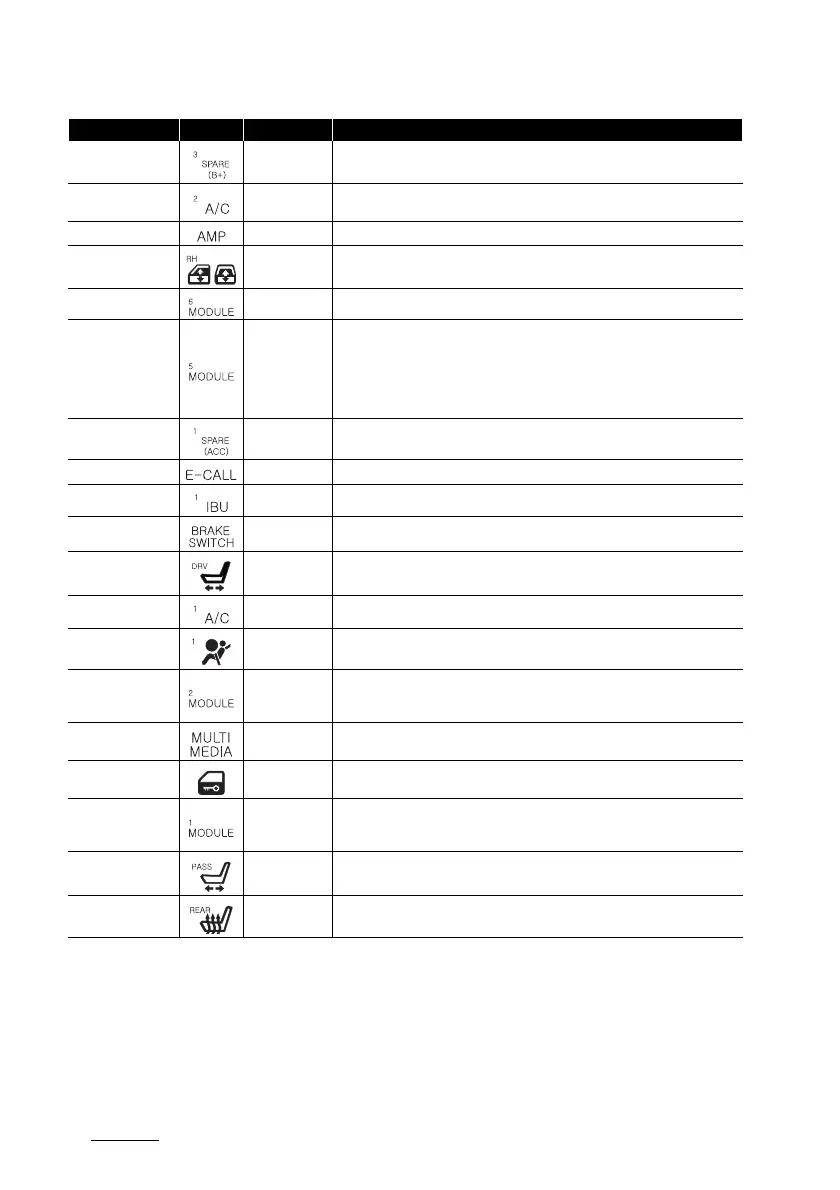

Fuse Name Symbol Fuse Rating Circuit Protected
