Maintenance Fuses
START 7.5A VCU, IBU (Integrated Body Control Unit)
HEATED MIRROR 10A Driver/Passenger Outside Mirror Unit
TAILGATE OPEN 15A Tailgate Latch
EPCU 3 10A Rear Inverter
MODULE3 7.5A
Multifunction Switch, IBU (Integrated Body Control Unit), Stop Lamp Switch,
Driver Door Module
CLUSTER 7.5A Head-Up Display, Instrument Cluster
IG3 8 10A V2L Unit, ICCU, VCMS, Rear Electronic Oil Pump, CDM
IG3 7 10A
In-car Temperature Sensor, Audio/Video & Navigation Head Unit, A/C PTC
(Positive Temperature Coefficient) Heater, A/C Control Module, Instrument
Cluster
IAU 10A Driver/Passenger Door Outside Handle
ECS 15A Not Used
MODULE8 10A Driver/Passenger Power Seat Module, Driver/Passenger Manual Seat Switch
S/HEATER FRT 20A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
WASHER 15A Multifunction Switch
IBU2 7.5A IBU (Integrated Body Control Unit)
IG3 10 10A SCU (System Control Unit), Rear Inverter, BMU
IG3 9 10A Not Used
BATTERY MAN -
AGEMENT
10A BMU
AIR BAG2 10A SRS (Supplemental Restraint System) Control Module
SUNROOF1 25A Sunroof Motor
P/WINDOW LH 25A
Driver Safety Power Window Module (LHD), Passenger Safety Power Window
Module (RHD), Rear Power Window Switch LH
SPARE2 (IG2) 15A Not Used
E-SHIFTER 3 10A Electronic ATM (Automatic Transmission) Shift Dial
MODULE4 10A
Front/Rear Corner Radar LH/RH, Front/Rear Inverter, ADAS Unit (Driving), VESS
(Virtual Engine Sound System) Unit, Smart Cruise Control Radar, Front View
Camera (ADAS), ADAS Unit, Console Upper Cover Switch
USB CHARGER 15A Driver/Passenger Seat USB Charger, Front Console USB Charger #1/#2
MEMORY1 15A
Fuse - MEMORY2, Instrument Cluster, A/C Control Module, Console Mood
Lamp (Upper/Lower), Console Floor Switch, Driver/Passenger Door Mood
Lamp, Rear Door Mood Lamp LH/RH

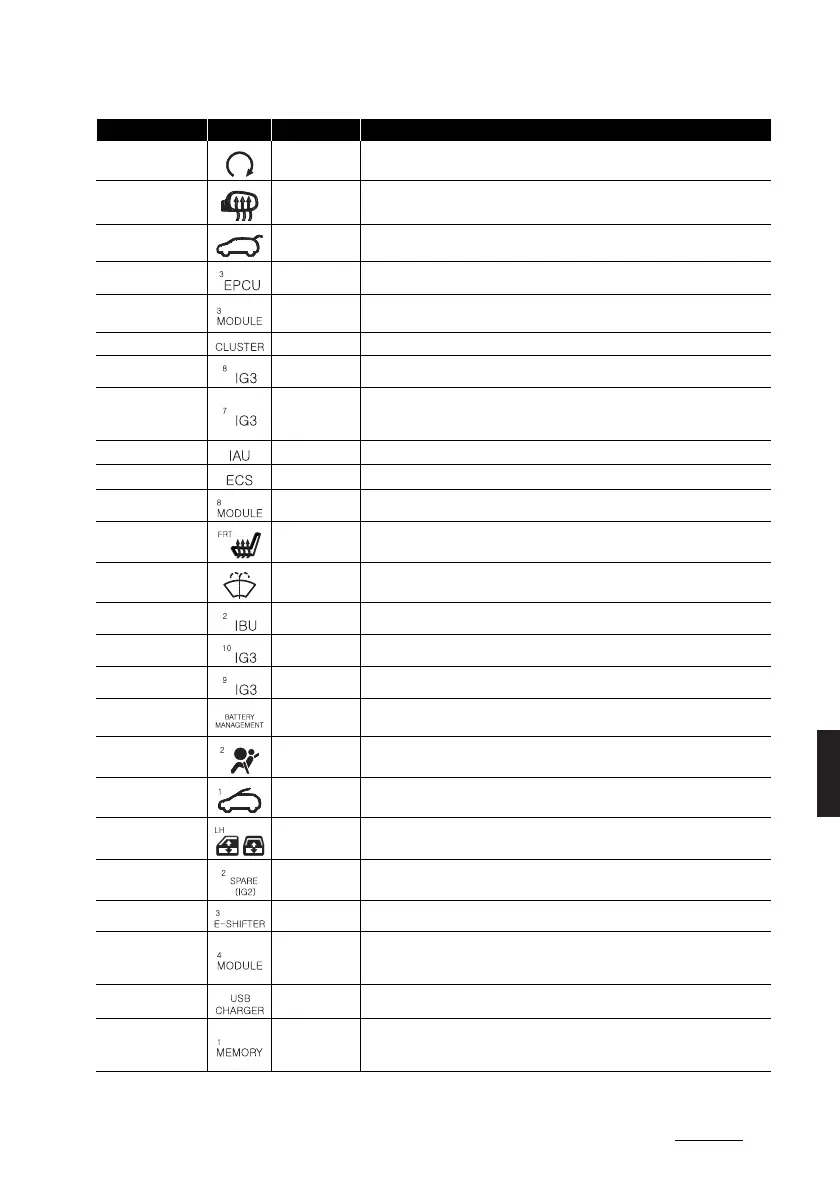

Fuse Name Symbol Fuse Rating Circuit Protected
