Maintenance
308

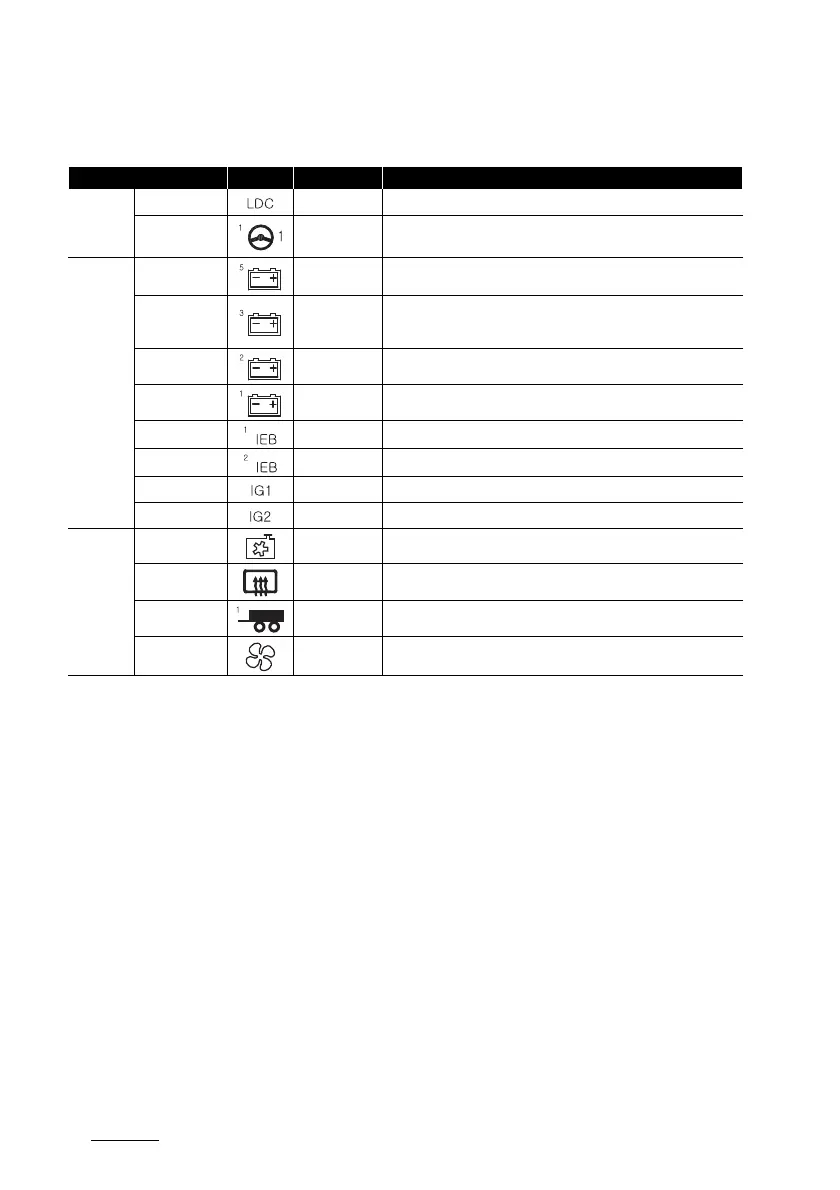

Fuses
Circuit (P/R Junction Block)
Fuse Name Symbol Fuse Rating Circuit Protected
MULTI
FUSE-1
LDC 180A P/R Junction (Fuse: P/OUTLET1, T/GATE, EOP1, EOP2)
MDPS1 100A
MDPS Unit
* MDPS is the same as EPS (Electric Power Steering).
MULTI
FUSE-3
B+5 60A
PCB Block (IG3 Main Relay, Fuse: WIPER1, EPCU1, B/ALARM, HORN,
VCU2)
B+3 60A
ICU Junction Block (Fuse: CHILD LOCK, AFCU, TAILGATE OPEN,
EPCU 3, MODULE8, S/HEATER FRT, SUNROOF1, P/WINDOW LH,
AMP, P/WINDOW RH, P/SEAT DRV, P/SEAT PASS, S/HEATER RR)
B+2 60A ICU Junction Block (IPS1, PS6, IPS8, IPS9, IPS10)
B+1 50A ICU Junction Block (IPS2, IPS3, IPS5, IPS7, IPS13)
IEB1 60A IEB Unit
IEB2 60A IEB Unit
IG1 40A P/R Junction Block (ACC Relay, IG1 Relay)
IG2 40A P/R Junction Block (IG2 Relay)
MULTI
FUSE-2
C/FAN 80A Cooling Fan Motor
RR HTD 50A P/R Junction Block (Rear Heated Relay)
TRAILER1 50A Trailer Connector Unit
BLOWER 50A P/R Junction Block (Blower Relay)
To Next Page
