31
8
8

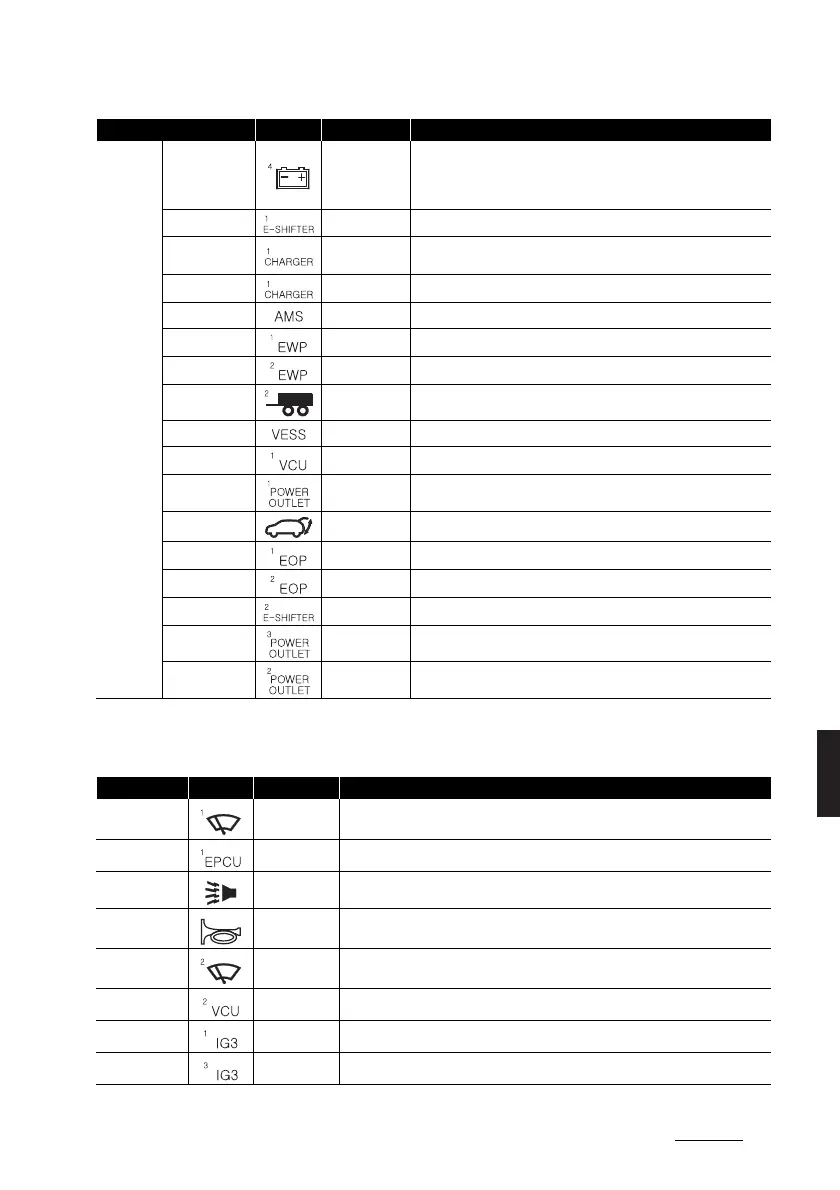

Maintenance Fuses
PCB Block
FUSE
B+4 40A
ICU Junction Block (Long Term Load Latch Relay, Fuse: IAU, ECS,
BATTERY MANAGEMENT, AIR BAG2, MEMORY1, SPARE3 (B+), A/C2,
E-CALL, IBU1, BRAKE SWITCH, MULTIMEDIA, DOOR LOCK, MOD
-
ULE1)
E-SHIFTER1 40A P/R Junction Block (E-Shifter Relay, Fuse: E-SHIFTER2)
CHARGER1 10A
P/R Junction Block (Charger Lock Relay, Charger Unlock Relay),
ICCU, VCMSCDM
CHARGER2 10A CDM
AMS 10A 12V Battery Sensor
EWP1 20A Electronic Water Pump #1
EWP2 20A Electronic Water Pump #2
TRAILER2 20A Trailer Connector Unit
VESS 10A VESS Unit
VCU1 40A VCU
P/OUTLET1 40A Power Outlet Relay
T/GATE 30A PTG Unit
EOP1 40A Rear Electronic Oil Pump
EOP2 40A Front Electronic Oil Pump (4WD)
E-SHIFTER2 10A E-Shifter Relay, SCU, Electronic ATM Shift Dial
P/OUTLET3 20A Rear Power Outlet
P/OUTLET2 20A Front Power Outlet
Fuse Name Symbol Fuse Rating Circuit Protected
WIPER1 25A PCB (Printed Circuit Board) Block (Wiper Main Relay)
EPCU1 15A Front Inverter (4WD)
B/ALARM 10A PCB (Printed Circuit Board) Block (Burglar Alarm Horn Relay)
HORN 15A PCB (Printed Circuit Board) Block (Horn Relay)
WIPER2 7.5A IBU (Integrated Body Control Unit)
VCU2 15A VCU
IG3 1 20A ICU Junction Block (Fuse: IG3 8, IG3 7, IG3 10, IG3 9)
IG3 3 15A Electronic Water Pump
Fuse Name Symbol Fuse Rating Circuit Protected
