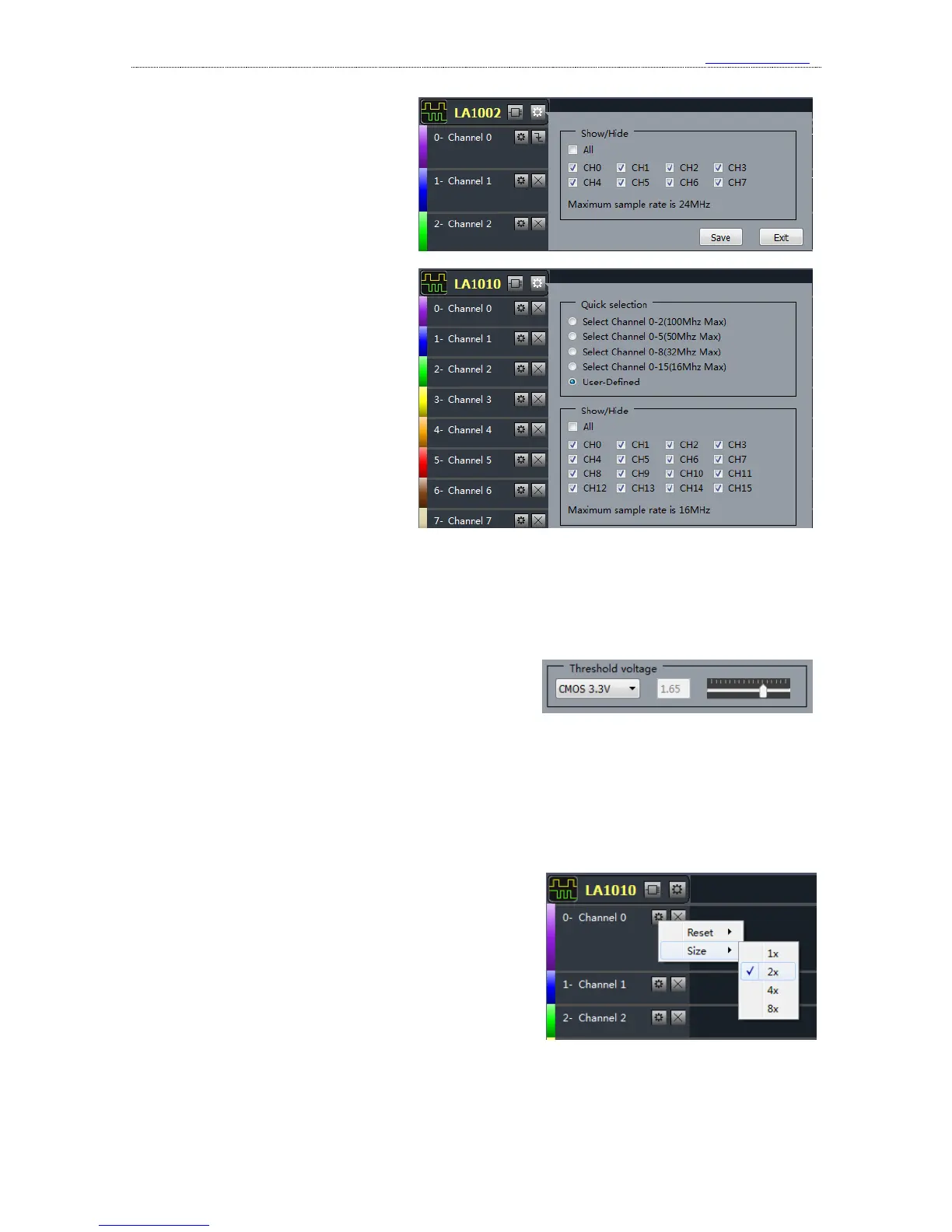

settings window as the right figure.
The channels could be enabled or
closed through the check boxes. The
topmost “All” check box provides a
quick way to enable or disable all the
channels.
As is shown in the right figure,
the channel settings window of
LA1010 are a little complicated.
Because the maximum sampling rate
is related to the number of the
channels enabled, we provide several
quick selections in the settings
window, to make the channels switch
rapidly among the sampling rates that
are available in LA1010.
For example, if the first item is selected, the channels 0-2 would be enabled automatically, and
the maximum sampling rate is 100M. If you select “user defined”, the channel settings behavior is
like what we just mentioned.
②. Select a threshold voltage
The threshold voltage of most models is adjustable,
and you can find the threshold selection window beneath
the channel settings window. The combo box on the left provides a quick way to select the voltage
standard of the signal under test. The value of threshold voltage is in the middle. And if the
“user-defined” is specified in the combo box, you could edit the value manually, and the slider bar
could also change the voltage.
③. Set the size of channels
The size(height) of all channels would be set to the
same value by default, but if you want to enable or
highlight only some channels, you could set the size of
these channels separately. As is shown in the right
figure, after you have pressed the “size” of the popped
menu, you could set the size(height) of this channel to
1,2,4 and 8 times of standard size. In this way, these
channels will be highlighted.
If you press “reset” in this menu, you could reset the channels to default state, for example
default size, name, etc.
