M0258-01Model 3500
6-12
Ref. 9/17
TM
Lubrication and Maintenance

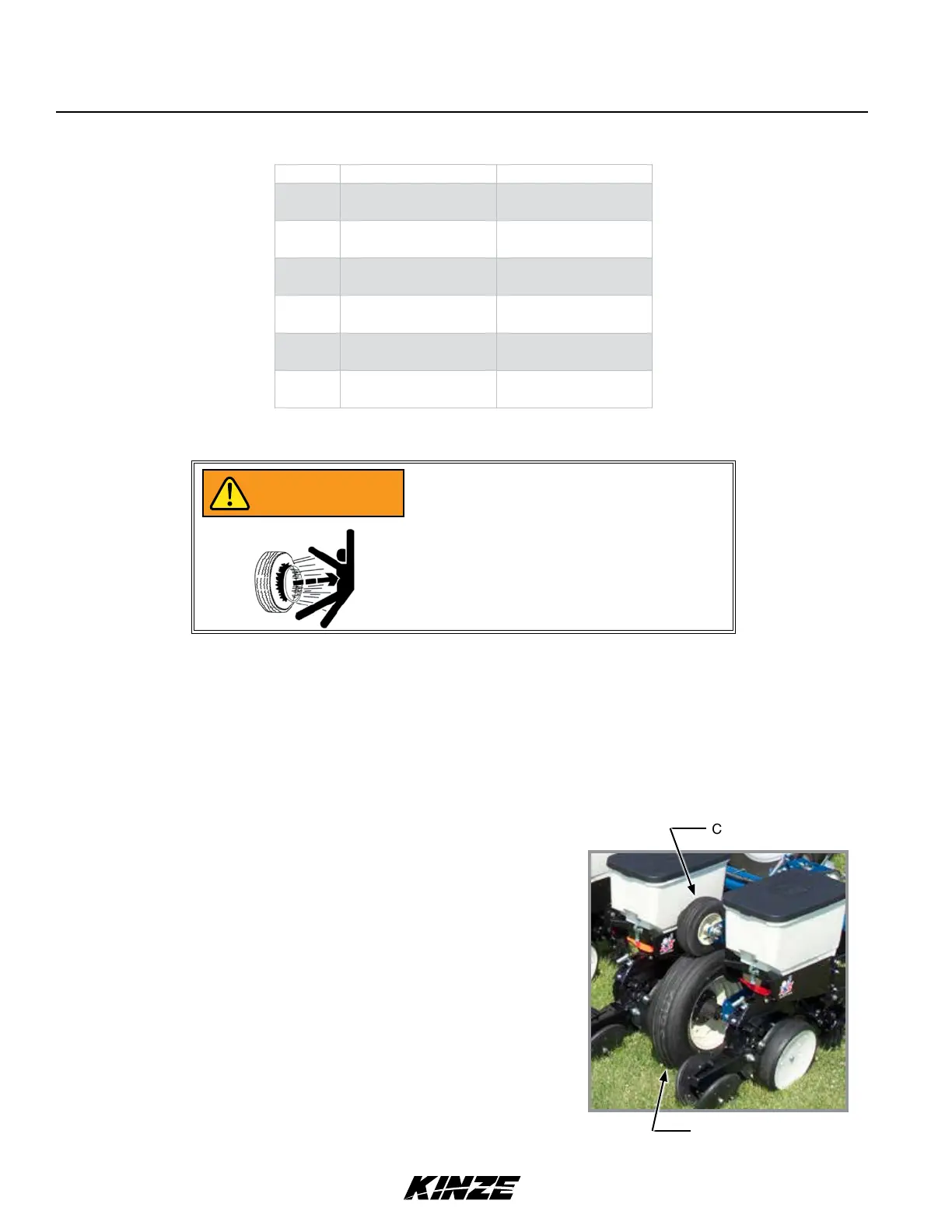

Cylinder Rod Piston Retaining Nut Torque Chart
Non-Nylock Nut Nylock Nut
½"-20
55-70 ft-lb
(75-95 N-m)
45-55 ft-lb
(61-75 N-m)
¾"-16
115-125 ft-lb
(156-169 N-m)
100-115 ft-lb
(136-156 N-m)
"-14
150-180 ft-lb
(203-244 N-m)
130-150 ft-lb
(176-203 N-m)
1"-14
275-330 ft-lb
(373-447 N-m)
250-275 ft-lb
(339-373 ft-lb)
1"-12
300-375 ft-lb
(407-508 N-m)
275-300 ft-lb
(373-407 N-m)
1¼"-12
300-375 ft-lb
(407-508 N-m)
275-300 ft-lb
(373-407 N-m)
TIRE PRESSURE
Contact drive
Transport/ground drive
Transport/ground drive - 7.50" x 20" . . . . . . . . Inflate to 40 psi (275.7 kPa)
Contact drive - 4.10" x 6" . . . . . . . . . . . . . . . . Inflate to 50 psi (344.7 kPa)
MODEL 3500 OPERATING TIRE PRESSURE
Explosive separation of rim and tire
parts can cause death or serious injury.
Overinflation, rim and tire servicing,
improper use of rims and tires, or worn
or improperly maintained tires could
result in a tire explosion.
WARNING
To prevent tire explosions:
• Maintain proper tire pressure. Inflating a tire above or below the recommended pressure can cause tire damage.
• Mount tires only by properly trained personnel using proper equipment.
• Replace tires with cuts or bubbles. Replace damaged rims. Replace missing lug bolts and nuts.
• Do not weld or heat wheel assembly. Heating increases tire pressure.
To Next Page
