Kinze 3500 - Offset Hitch Adjustment; Row Marker Even-Row Length Adjustment

TM
Model 3500M0258-01
9/14 2-21
Machine Operation
Replace L.H. marker extension tube with marker extension tube (55" for 6 Row 30"/65" for 8 Row 30") supplied with
Even-Row Push Row Unit and Mounting Package.
Reinstall marker blade assembly onto new marker extension tube.
Center of 15" Dimension
planter to x 2 + Row = between
center of spacing. planter center
outer row line and
unit. marker blade.
NOTE: Readjust markers when planting 30" rows.
Number of rows x row spacing (Inches)
=
Dimension between planter center line
and marker blade
6 Rows x 30” Spacing = 180" Marker Dimension
8 Rows x 30” Spacing = 240" Marker Dimension
Tractor center line
Tractor hitch offset
7½" (19 cm) right.
6 Row 30" with 6 Interplant push row units.
(L.H. marker 90" x 2 + 15" = 195")
(R.H. marker 75" x 2 + 15" = 165")
8 Row 30” with 8 Interplant push row units.
(L.H. marker 120" x 2 + 15" = 255")
(R.H. marker 105" x 2 + 15" = 225")
An offset hitch is available from Kinze through your Kinze Dealer. Offset hitch
provides centered and offset mounting positions for hitch clevis.
If tractor hitch is offset 7½" (19 cm) right of tractor center line, add 7½" (19 cm)
to marker dimension on R.H. side of planter and subtract 7½" (19 cm) from
marker dimension on L.H. side of planter.

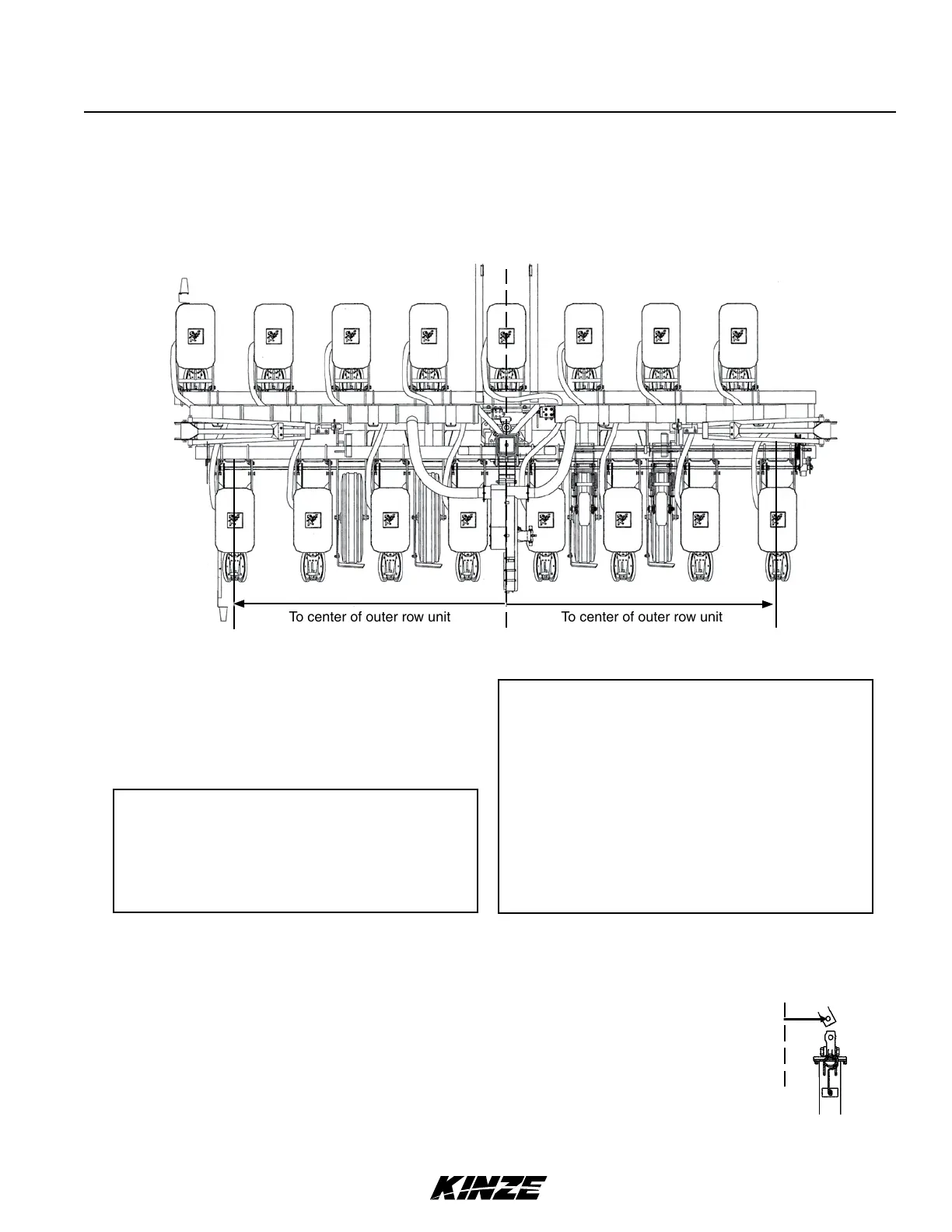

ROW MARKER EVEN-ROW LENGTH ADJUSTMENT
Planter centerline
To center of outer row unitTo center of outer row unit
OFFSET HITCH ADJUSTMENT
