Model 3500M0258-01
Rev. 9/17 2-25
Machine Operation

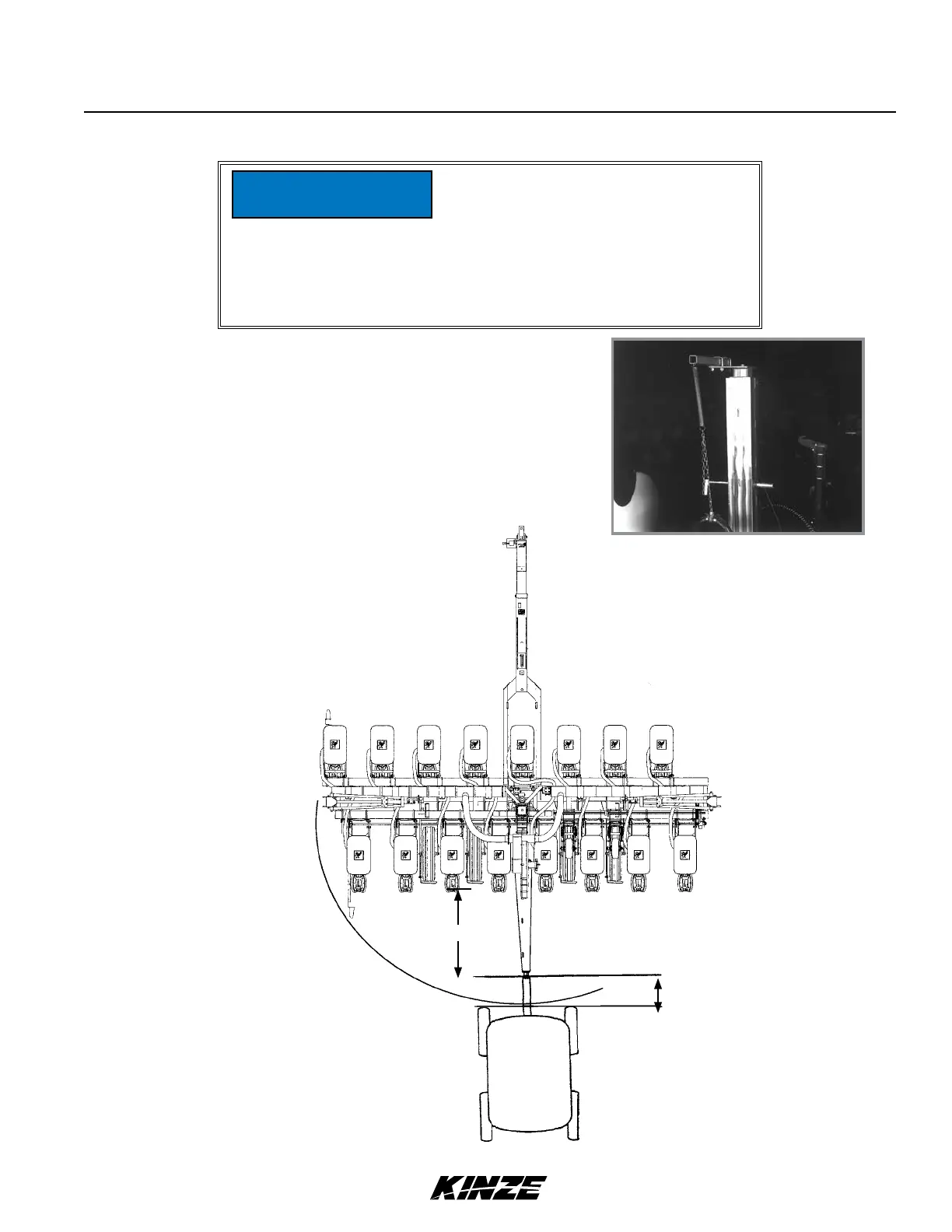

REAR TRAILER HITCH
Rear Trailer Hitch is used to tow a 3 or 4 wheel wagon behind planter.
A spring, chain and mounting bracket are used to support the 1¼" (38 mm)
feed hose from hitch to piston pump. This extra length or loop is required
to allow planter to be moved into transport position without stretching or
breaking hose.
NOTE: Periodically check feed hose for kinks to prevent restricted
delivery rate.
Rear hitch hose support
Minimum clearance
40" (101 cm) - 6 Row 30"
40" (101 cm) - 8 Row 30"
500 gal.
(1892.7 L)
tank
Note: minimum tank hitch length
50" (127 cm) to allow planter to
be rotated to transport position.
50"
Rear trailer hitch is designed for use
with piston pump only. Maximum
allowable hitch weight is 200 lb (90.71
kg). Do not exceed 6,000 lb (2,721.55 kg)
gross towing weight or the equivalent
of a loaded 500 gal (1,892.7 L) tank
and running gear or equipment can be
damaged.
NOTICE
